Removal & Installation

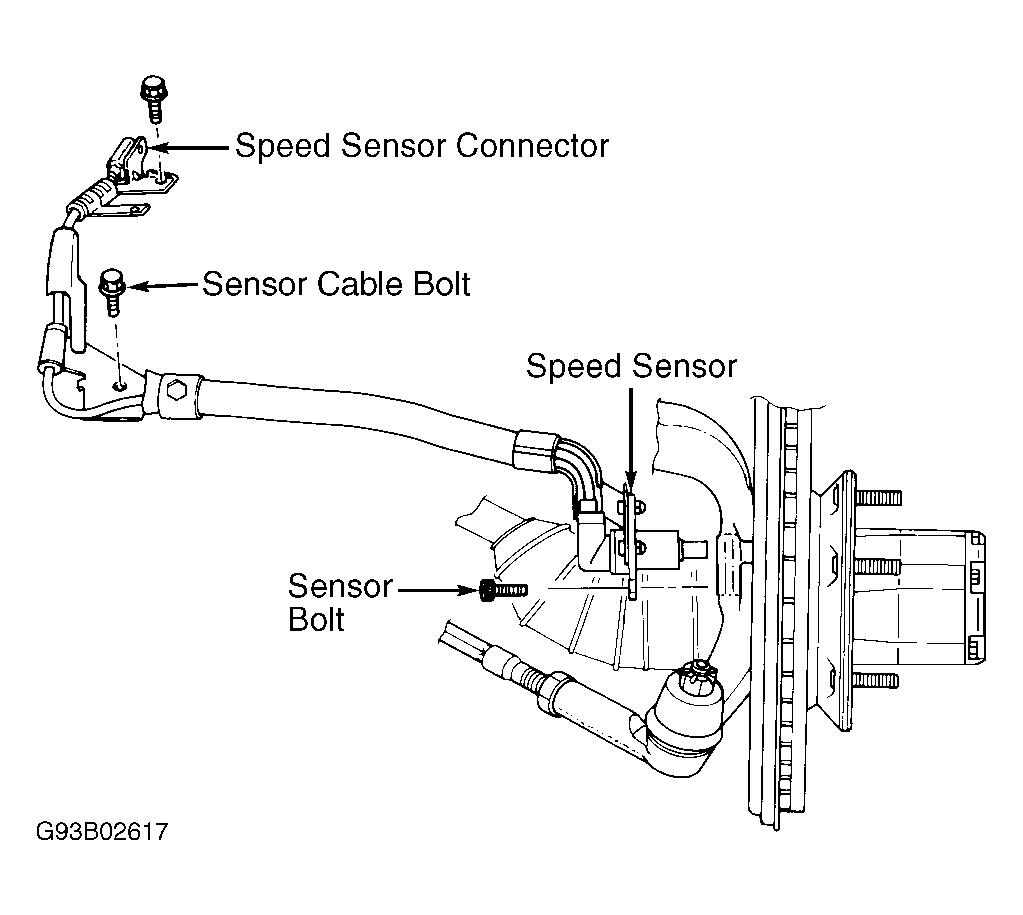

- Raise and support vehicle. Remove front wheel. Disconnect wheel speed sensor harness connector. Remove upper and lower wheel speed sensor harness mounting bolts. See Fig 1.
- Remove wheel speed sensor mounting bolt. Remove wheel speed sensor. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
