Headlight Replacement

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper (Coupe (see FRONT BUMPER REMOVAL/INSTALLATION - COUPE ), Sedan (see FRONT BUMPER REMOVAL/INSTALLATION - SEDAN )).
  2. Disconnect the connectors (A).
  3. Remove the 5 mounting bolts (B), then remove the headlight assembly (C).

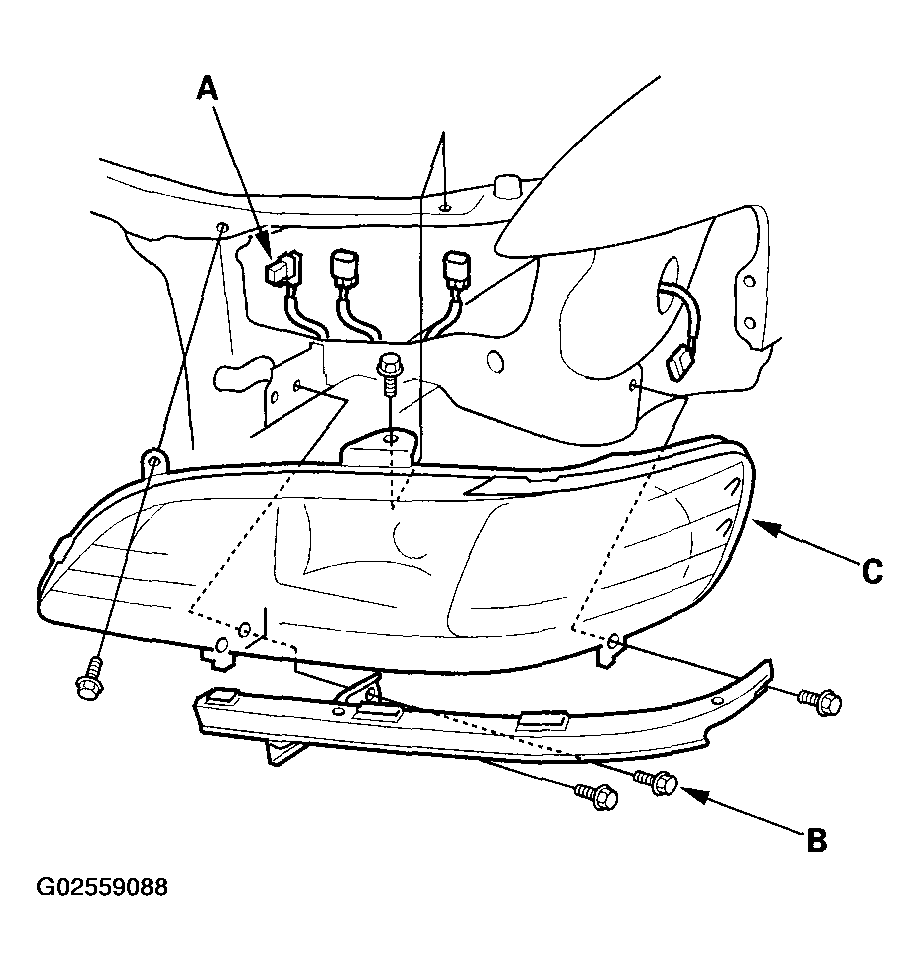

    Fig 1: Removing Mounting Bolts & Headlight Assembly
    G02559088Courtesy of AMERICAN HONDA MOTOR CO., INC.
    1. HEADLIGHT:  60/51 W
    2. FRONT PARKING LIGHT:  5 W
  4. Install the headlight in the reverse order of removal.
  5. After replacement, adjust the headlights to local requirements.
