Combination Light Switch Test/Replacement

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ) and steering column covers (see Steering Columns ).
  2. Disconnect the 14P connector (A) from the combination light switch (B).
  3. Remove the two screws (C), then pull out the switch (B).
  4. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, check for continuity between them in each switch position according to the tables.
      • If there is no continuity, replace the switch.

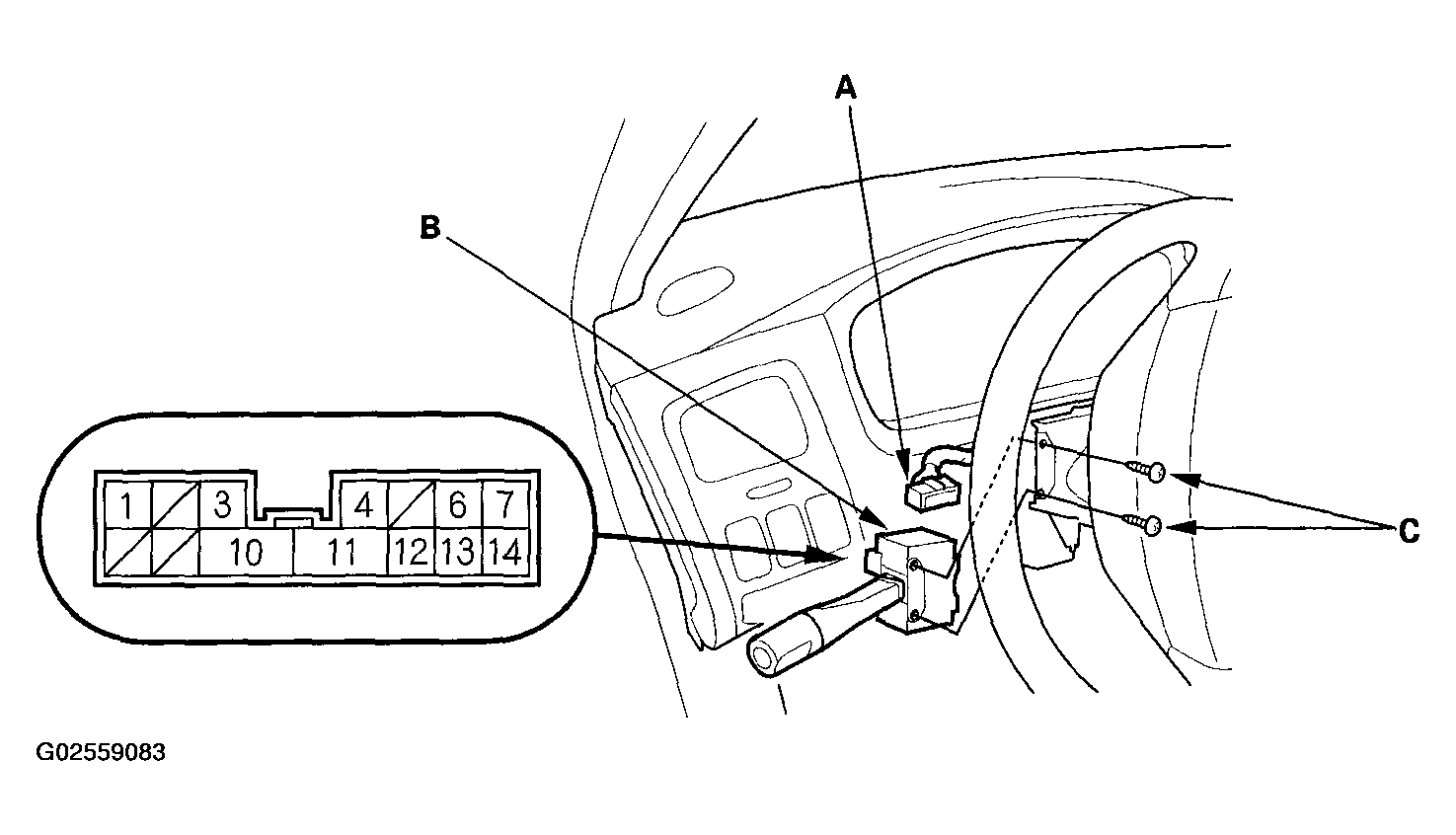

        • Fig 1: Identifying Combination Light Switch Connector Terminals
        G02559083Courtesy of AMERICAN HONDA MOTOR CO., INC.

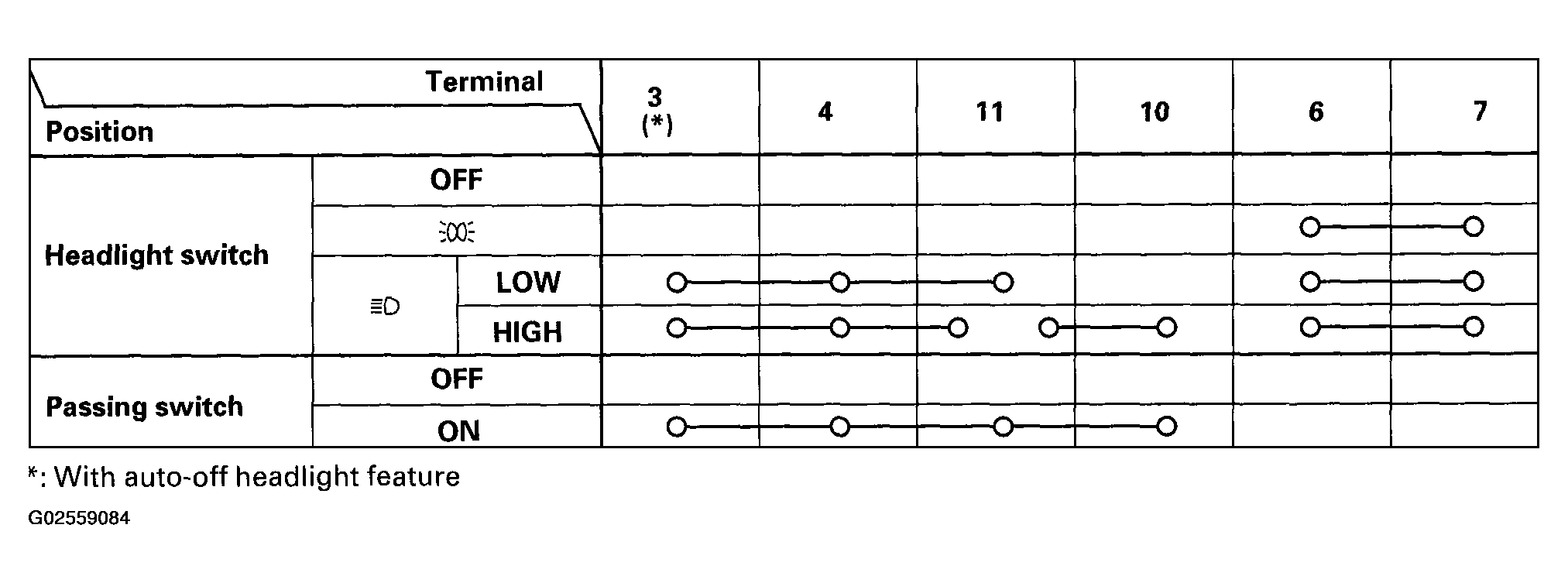

Fig 2: Light Switch Test Table
G02559084Courtesy of AMERICAN HONDA MOTOR CO., INC.

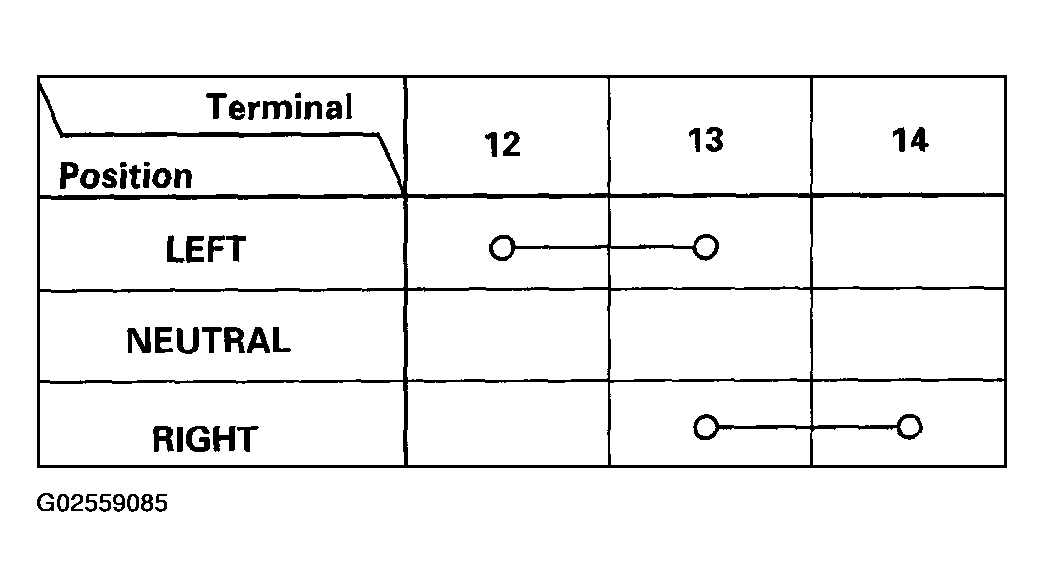

Fig 3: Turn Signal Switch Test Table
G02559085Courtesy of AMERICAN HONDA MOTOR CO., INC.
