Actuator Solenoid Test

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 4P connector (A) from the actuator.

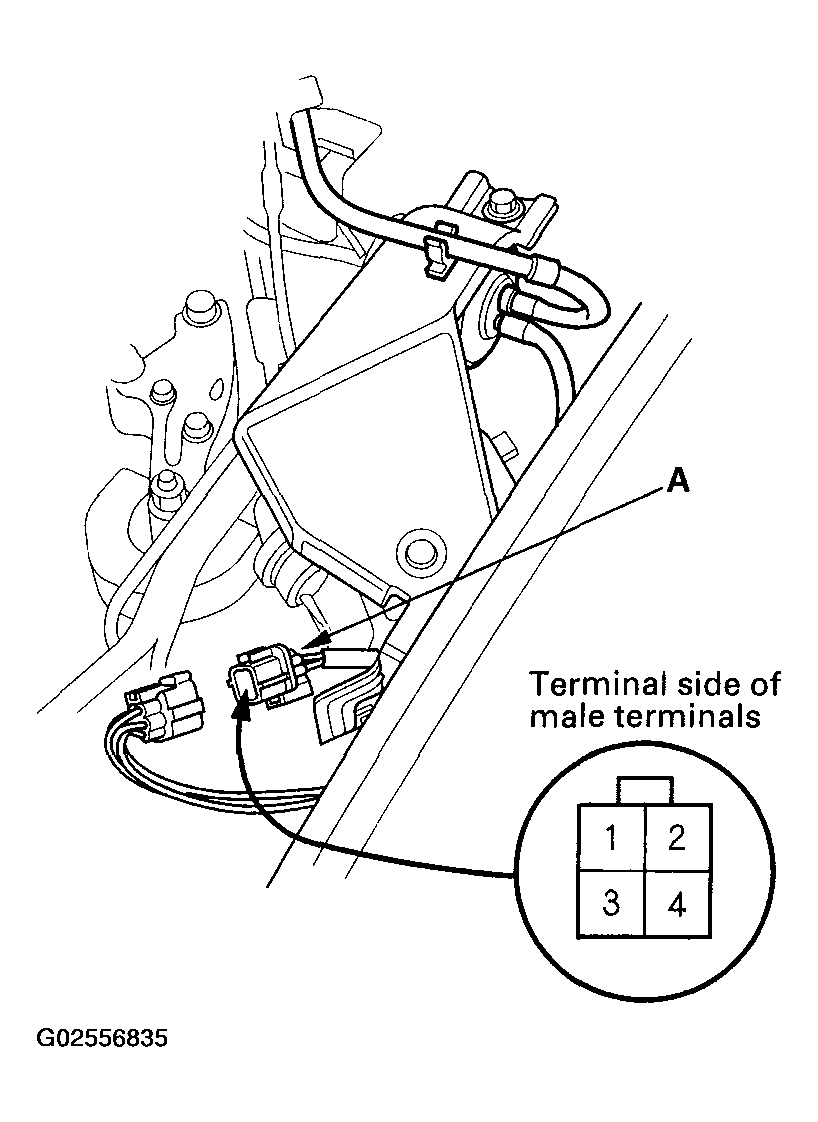

Fig 1: Identifying Actuator Solenoid 4P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for resistance between the terminals according to the table.
NOTE: Resistance will vary slightly with temperature; specified resistance is at 70°F (20°C).

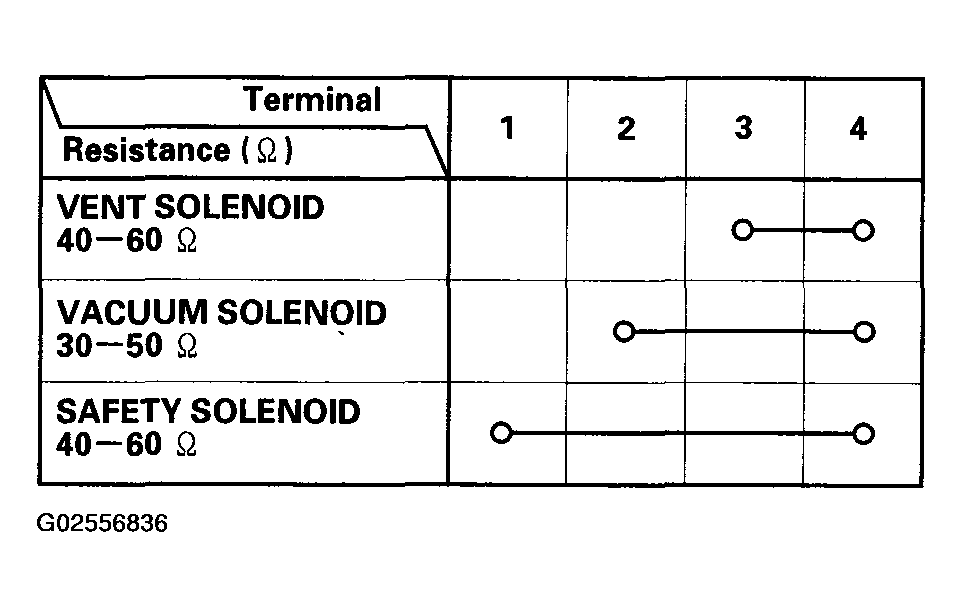

Fig 2: Actuator Solenoid Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

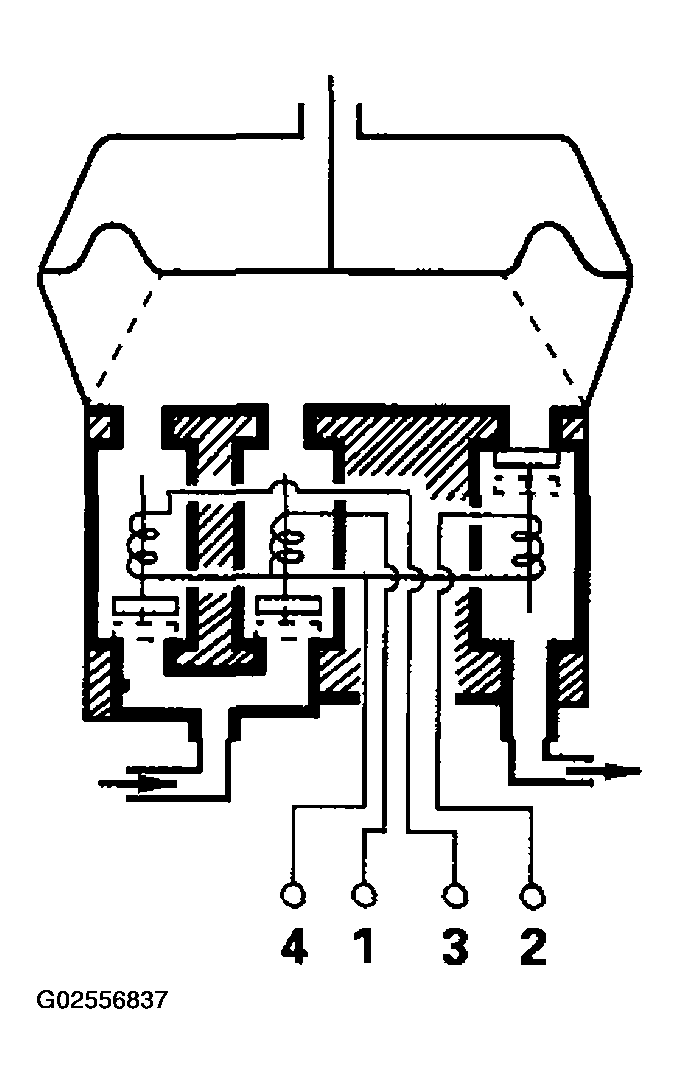

Fig 3: Identifying Actuator Solenoid Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the resistance is not as specified, replace the actuator.
