Actuator Cable Adjustment

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Check that the actuator cable (A) moves smoothly with no binding or sticking.

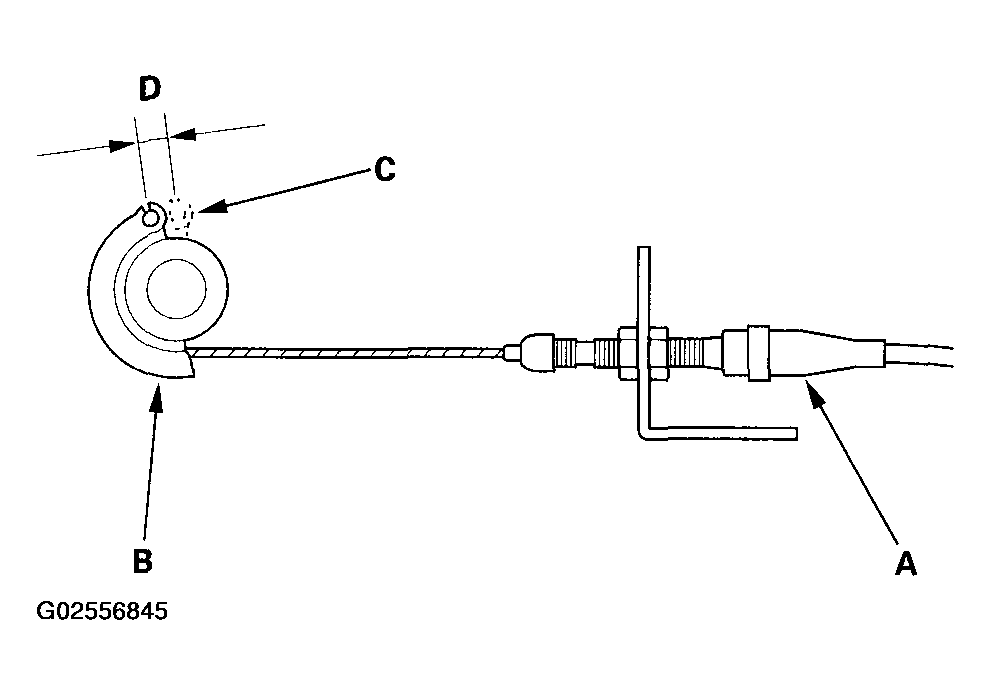

Fig 1: Checking Actuator Cable Movement
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the amount of movement of the output linkage (B) until the engine speed starts to increase. At first, the output linkage should be located at the fully closed position (C). The free play (D) should be 3.75+/-0.5 mm (0.15+/-0.02 in.).
If the free play is not within specs, move the cable to the point where the engine speed starts to increase, and tighten the locknut (A) and adjusting nut (B).

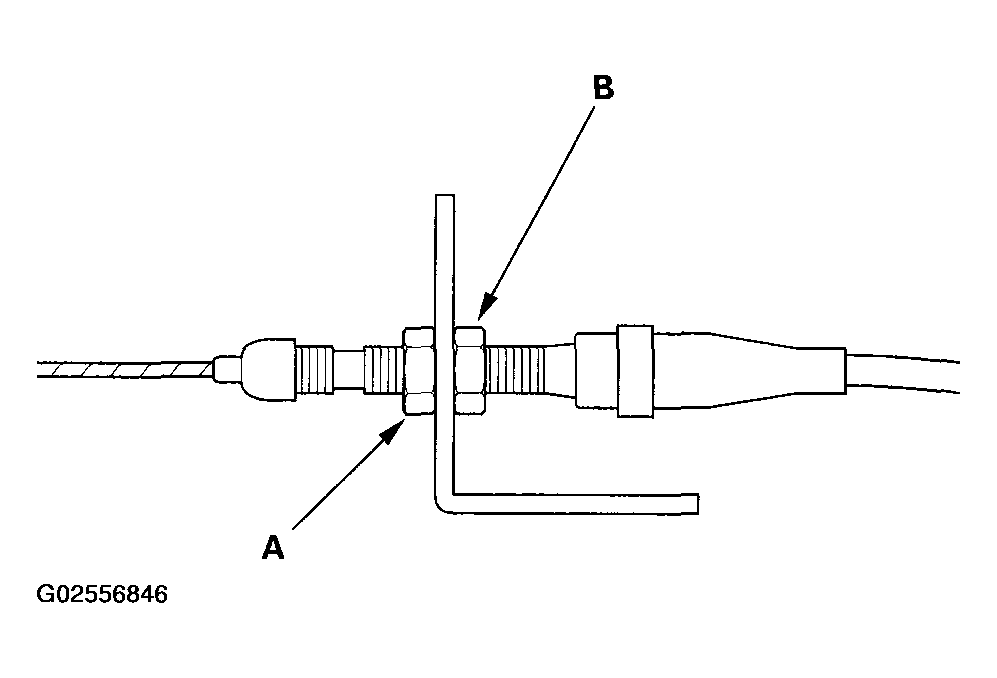

Fig 2: Identifying Locknut & Adjusting Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the adjusting nut (B) until it is 3.75 +/- 0.5 mm (0.15 +/- 0.02 in.) away from the bracket (C).

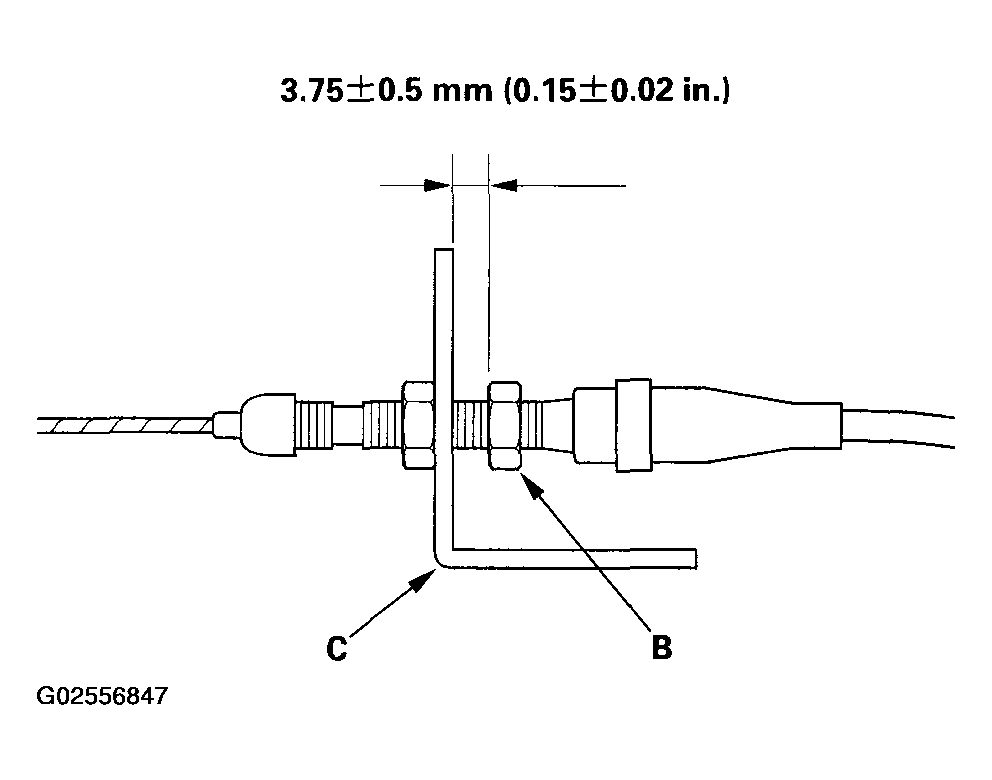

Fig 3: Turning The Adjusting Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the cable so that the adjusting nut (B) touches the bracket, and tighten the locknut (A).

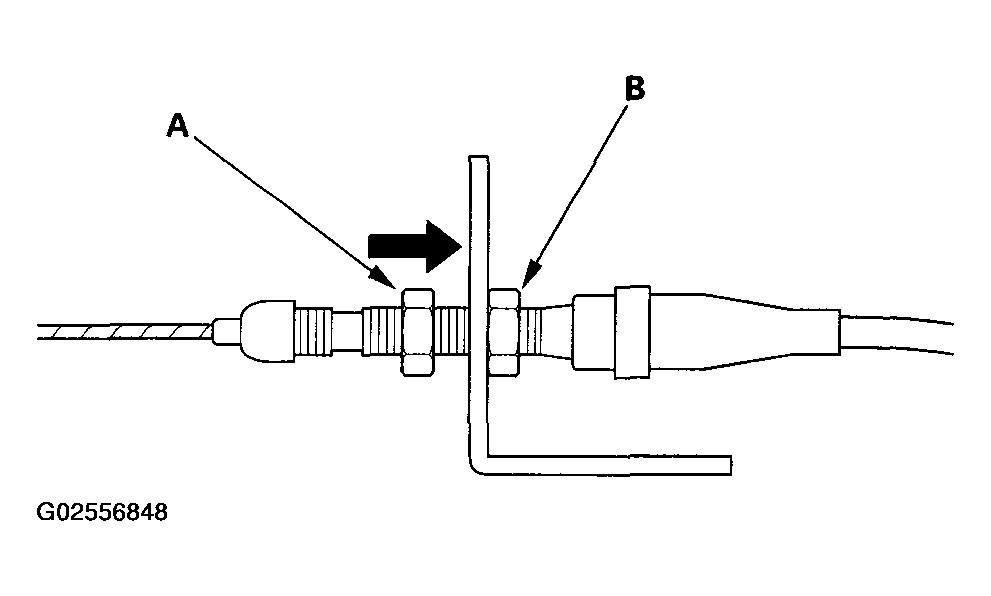

Fig 4: Tightening Locknut
