Front Wiper Switch: Stylus

Disconnect wiper switch connector. Using ohmmeter, check continuity between specified terminals. SeeFig 1 . Replace switch if continuity does not exist between specified terminals.

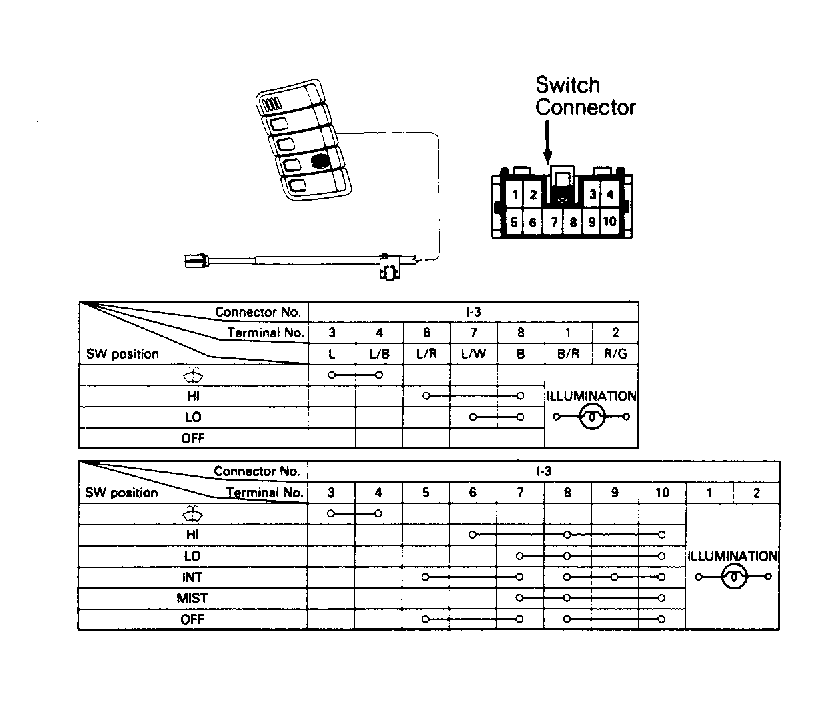

Fig 1: Checking Front Wiper Switch (Stylus)
G92B00086Courtesy of ISUZU MOTOR CO.
