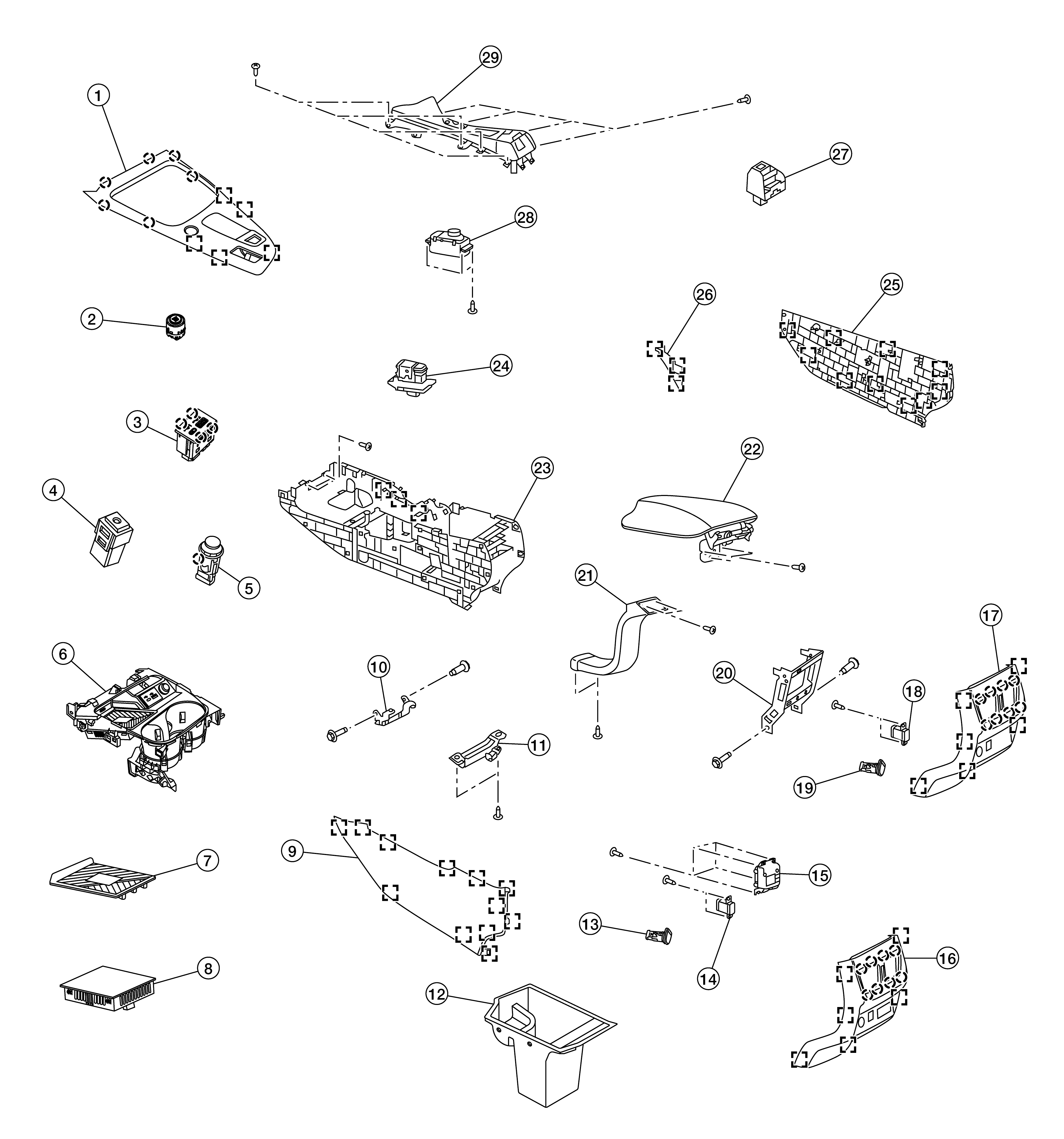

| 1. |
Shift selector finisher |
2. |
Push button ignition switch |
3. |
Front Auxiliary Input Jacks |
| 4. |
Wireless charger indicator |
5. |
Front power socket |
6. |
Center console cup holder |
| 7. |
Wireless charger mat |
8. |
Wireless charger unit |
9. |
Center console finisher (LH) |
| 10. |
Center console brace |
11. |
Inside key antenna (center console) |
12. |
Center console bin |
| 13. |
Console power socket |
14. |
Rear USB charge port |
15. |
Rear air control (with climate controlled seats) |
| 16. |
Center console rear finisher (with rear air control) |
17. |
Center console rear finisher (without rear air control) |
18. |
Rear USB charge port |
| 19. |
Console power socket |
20. |
Center console rear brace |
21. |
Rear center ventilator duct |
| 22. |
Center console lid |
23. |
Center console |
24. |
Electric parking brake switch |
| 25. |
Center console finisher (RH) |
26. |
Center console finisher (upper RH) |
27. |
Drive mode switch |
| 28. |
Multifunction switch |
29. |
Center console finisher (upper) |
 |
Metal clip |
 |
Pawl |
