Security Control System (Diagnostics)
>>
Description
>>
System
>>
Vehicle Security System
>>
System Description
>>
System Diagram

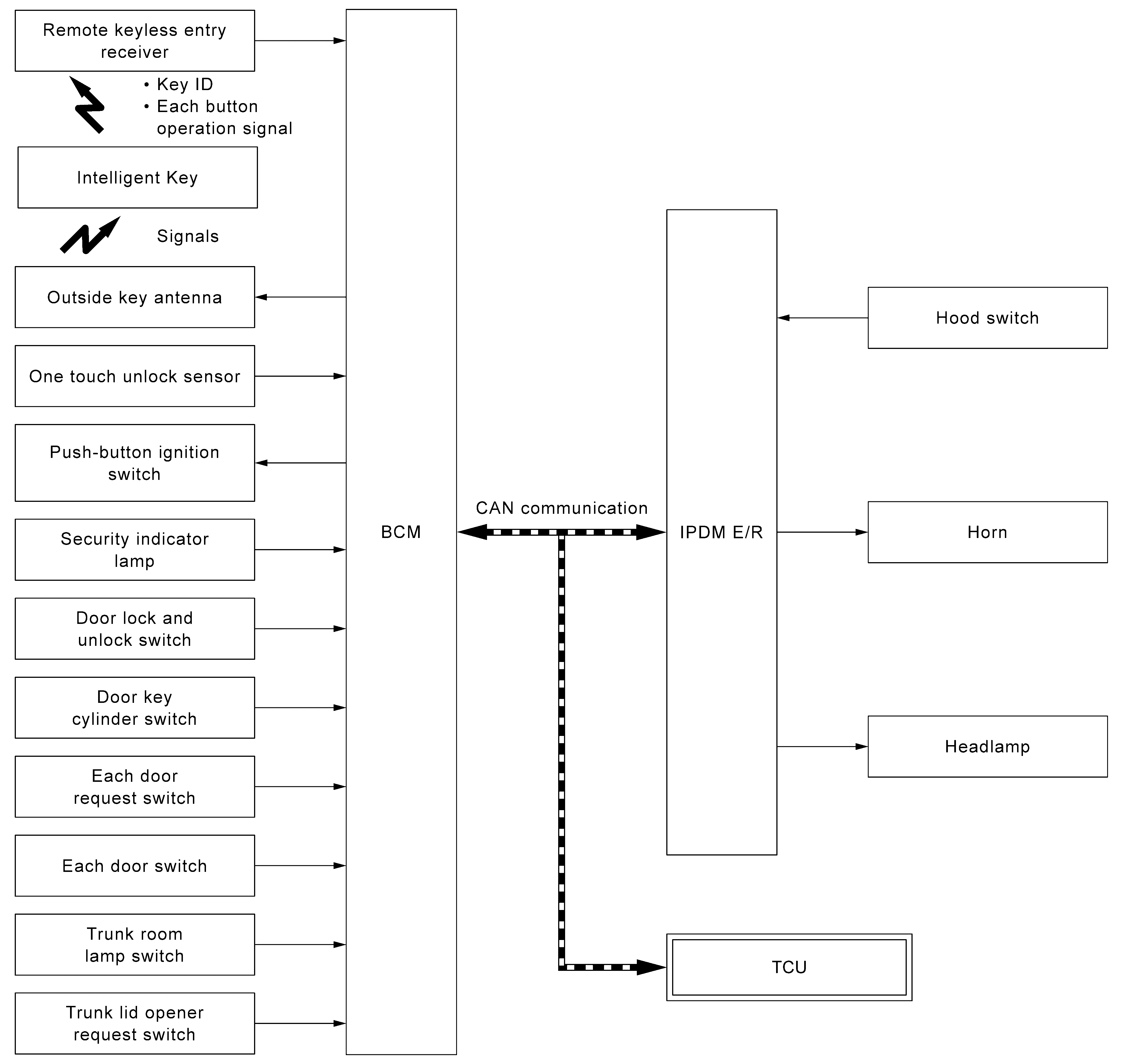

System Diagram
For U.S.A. and Canada
Courtesy of NISSAN NORTH AMERICA, INC.
For Mexico
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
