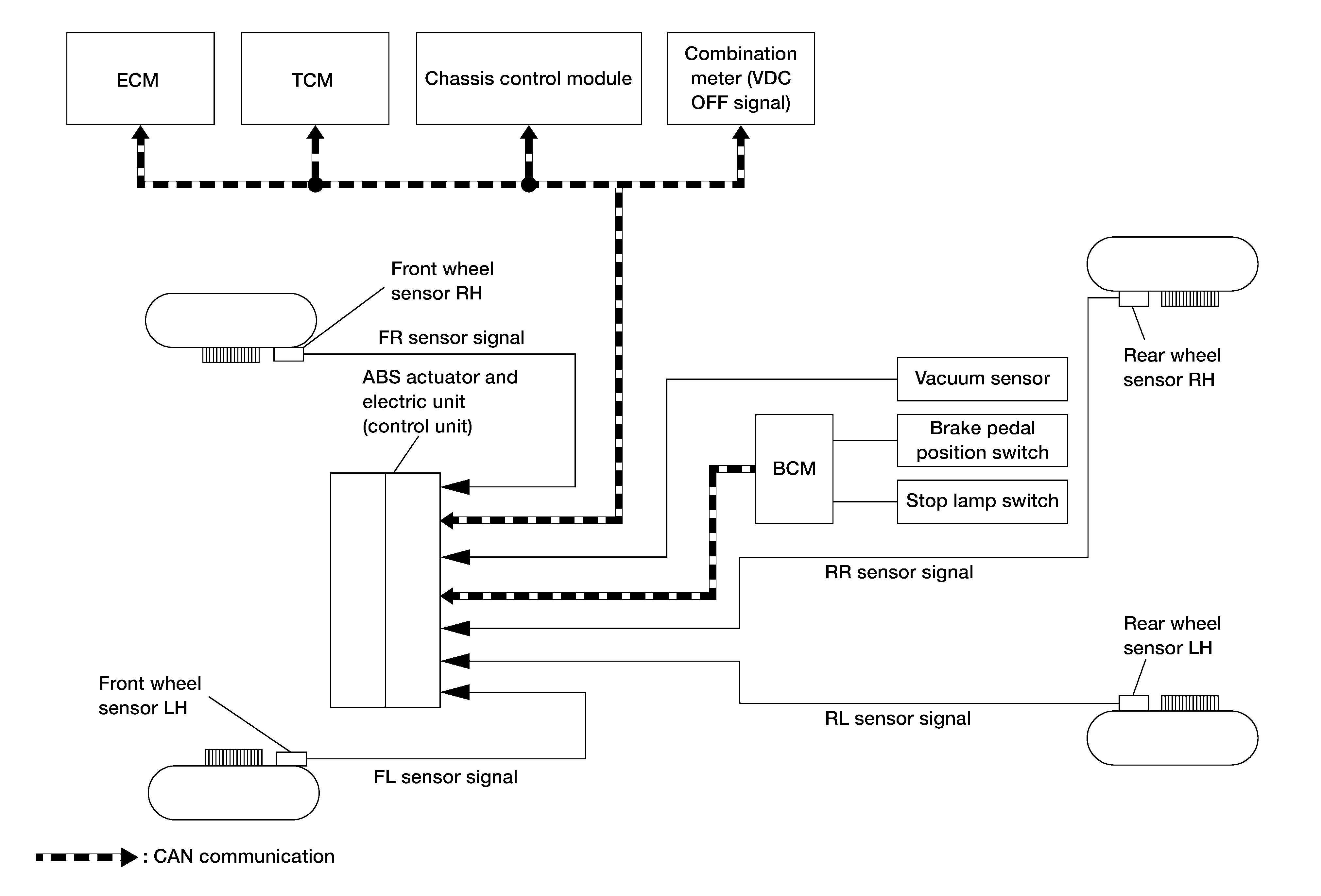

System Diagram

NOTE:

AWD control unit is applied to AWD MODE ls.

GNSDB18551

Courtesy of NISSAN NORTH AMERICA, INC.
