Around View Monitor Screen

Around view monitor combines and displays the travel direction view and "Birds-Eye view", "Front-Side view" and then it displays the sonar indicator on the "Birds-Eye view", "Front-Side view", "Front wide view" and "Rear wide view".
Around view monitor control unit renders the view icon, warning message on display.

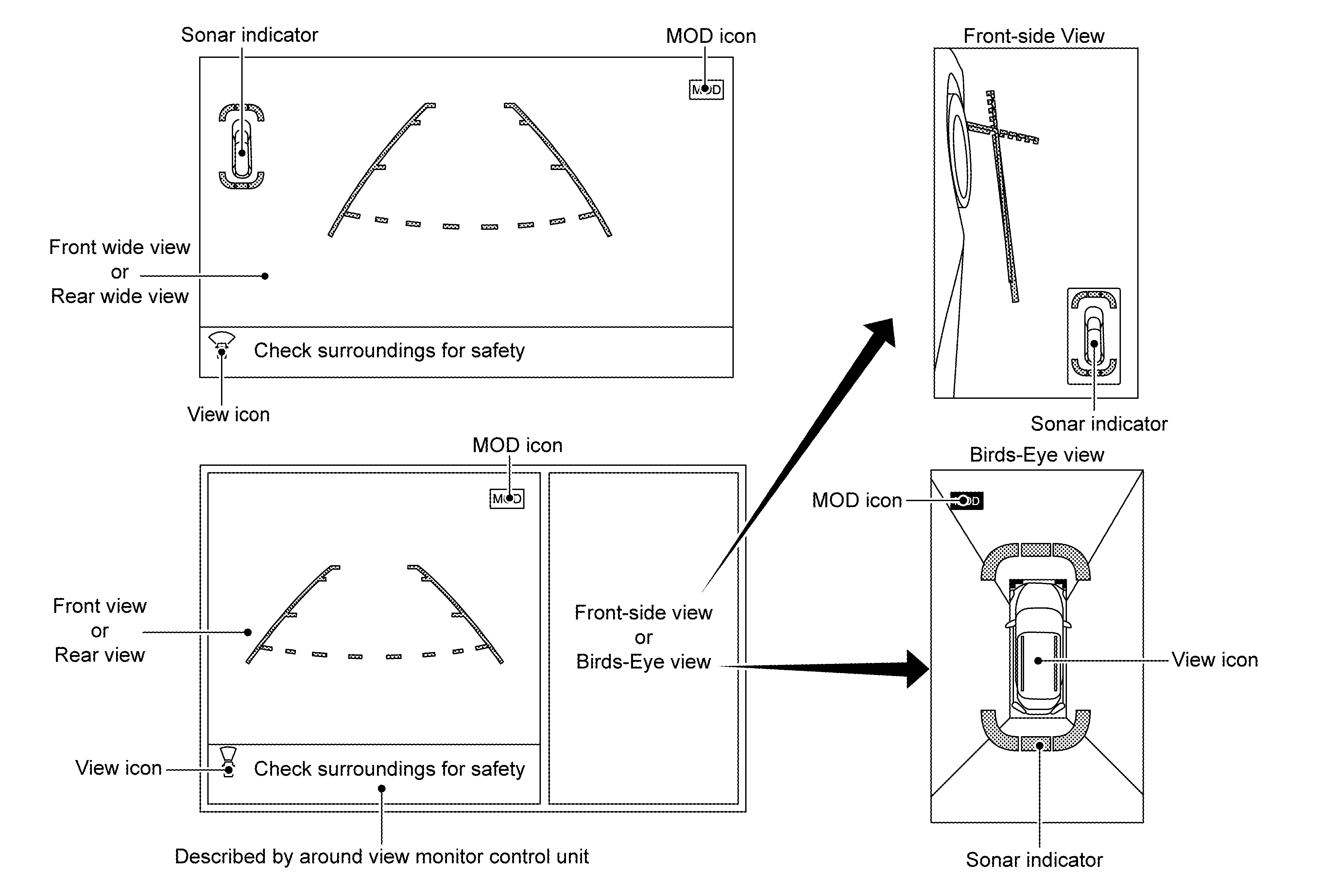

Fig 1: Screen Constitution (Models with Invisible Area)

Courtesy of NISSAN NORTH AMERICA, INC.

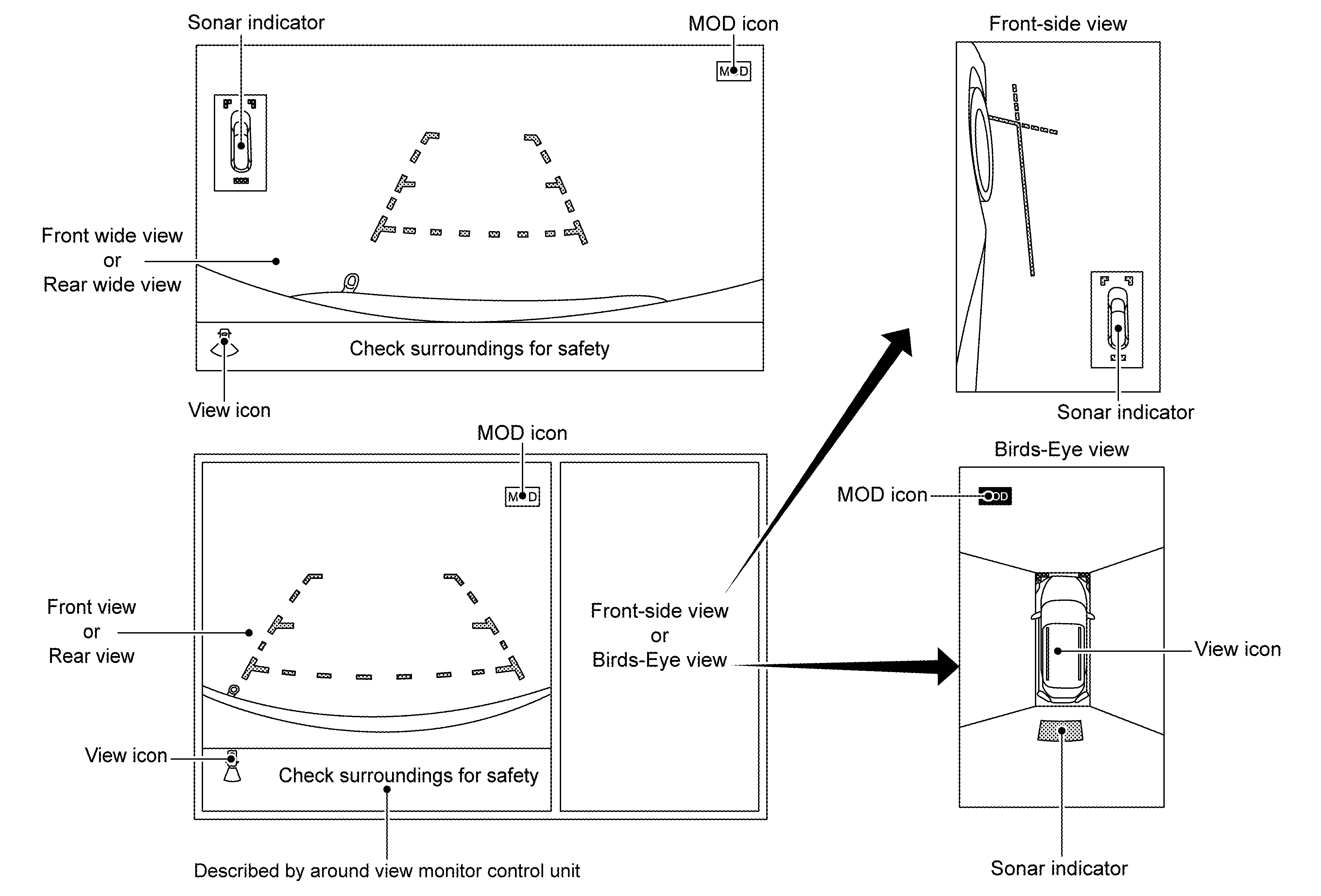

Fig 2: Screen Constitution (Models without Invisible Area)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The presence or absence of the invisible area depends on the sonar specifications.
