Switch Name and Function

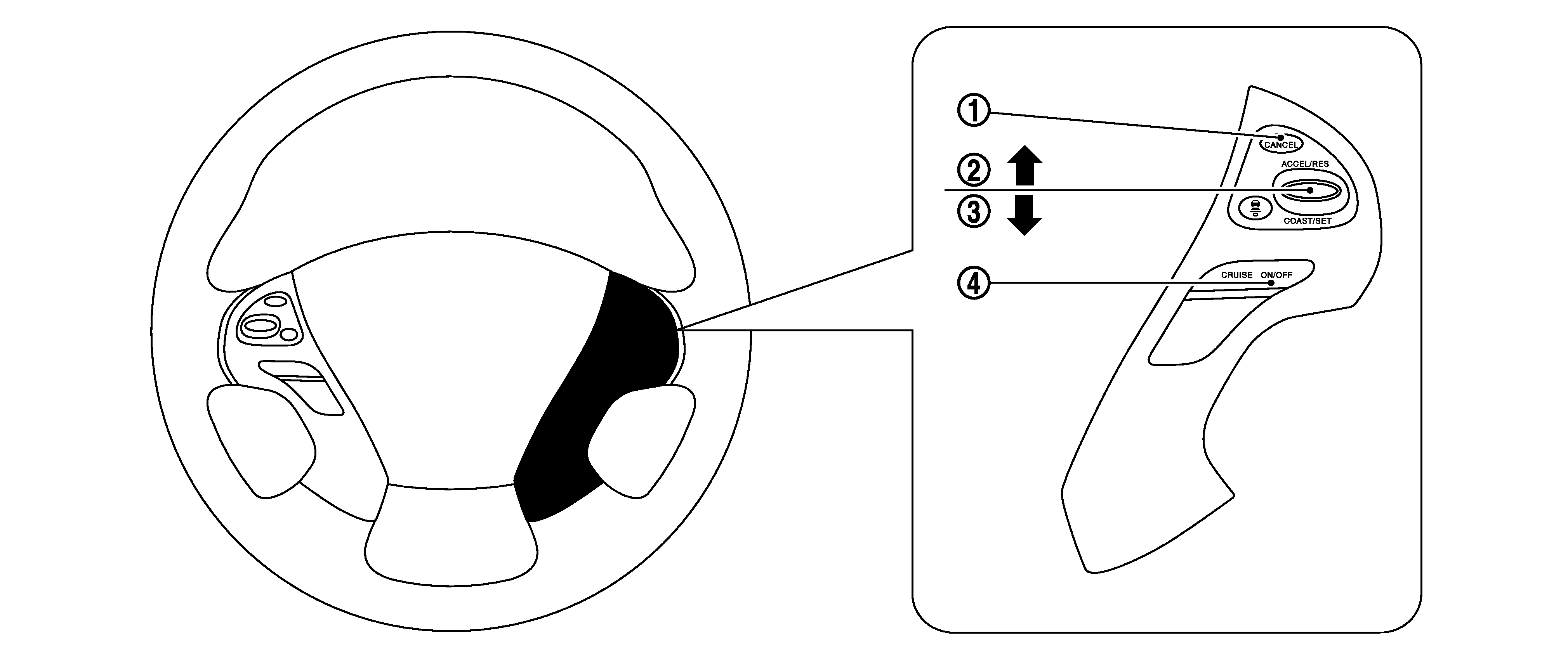

GNSJSOIA0169Z-169Courtesy of NISSAN NORTH AMERICA, INC.

No.

Description

Function

SYMBOL

CANCEL switch

Deactivates system without erasing set speed

SYMBOL

RESUME/ACCELERATE switch

Resumes set speed or increases speed incrementally

SYMBOL

SET/COAST switch

Sets desired cruise speed or reduces speed incrementally

SYMBOL

MAIN switch

Master switch to activate the system (Press for more than 1.5 seconds)
