Work Procedure (Preparation)

ADVANCE PREPARATION FOR RADAR ALIGNMENT

Adjust all tire pressure to the specified value.
Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
Shift the selector lever to "P" position, and release the parking brake.
Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

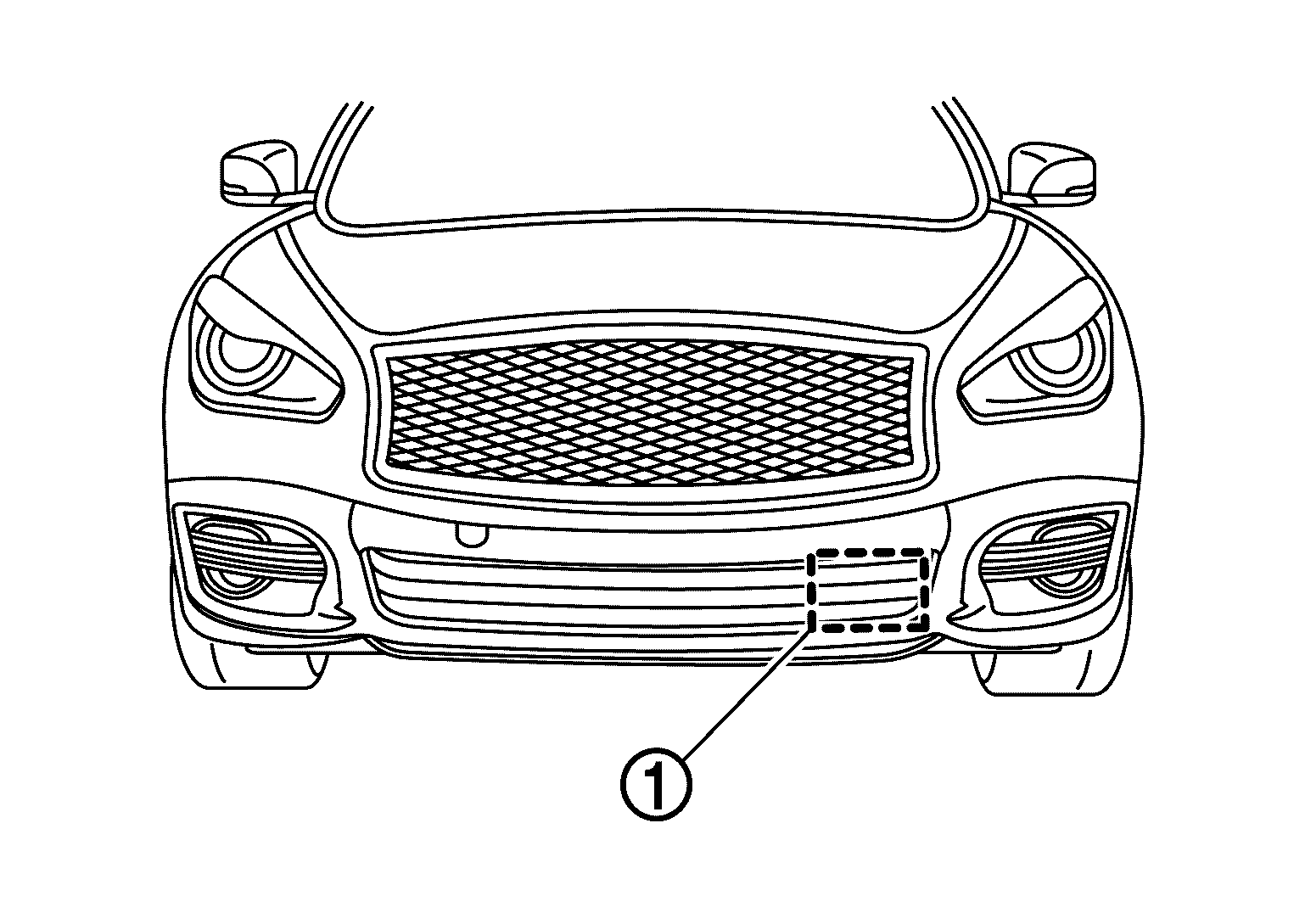

Clean the ICC sensor area

of the front bumper grille.

Courtesy of NISSAN NORTH AMERICA, INC.

GO TO 2.

RADAR ALIGNMENT OPERATION AREA

Position the vehicle in a place that is level and where area can be secured.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

is a no object zone.
