Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

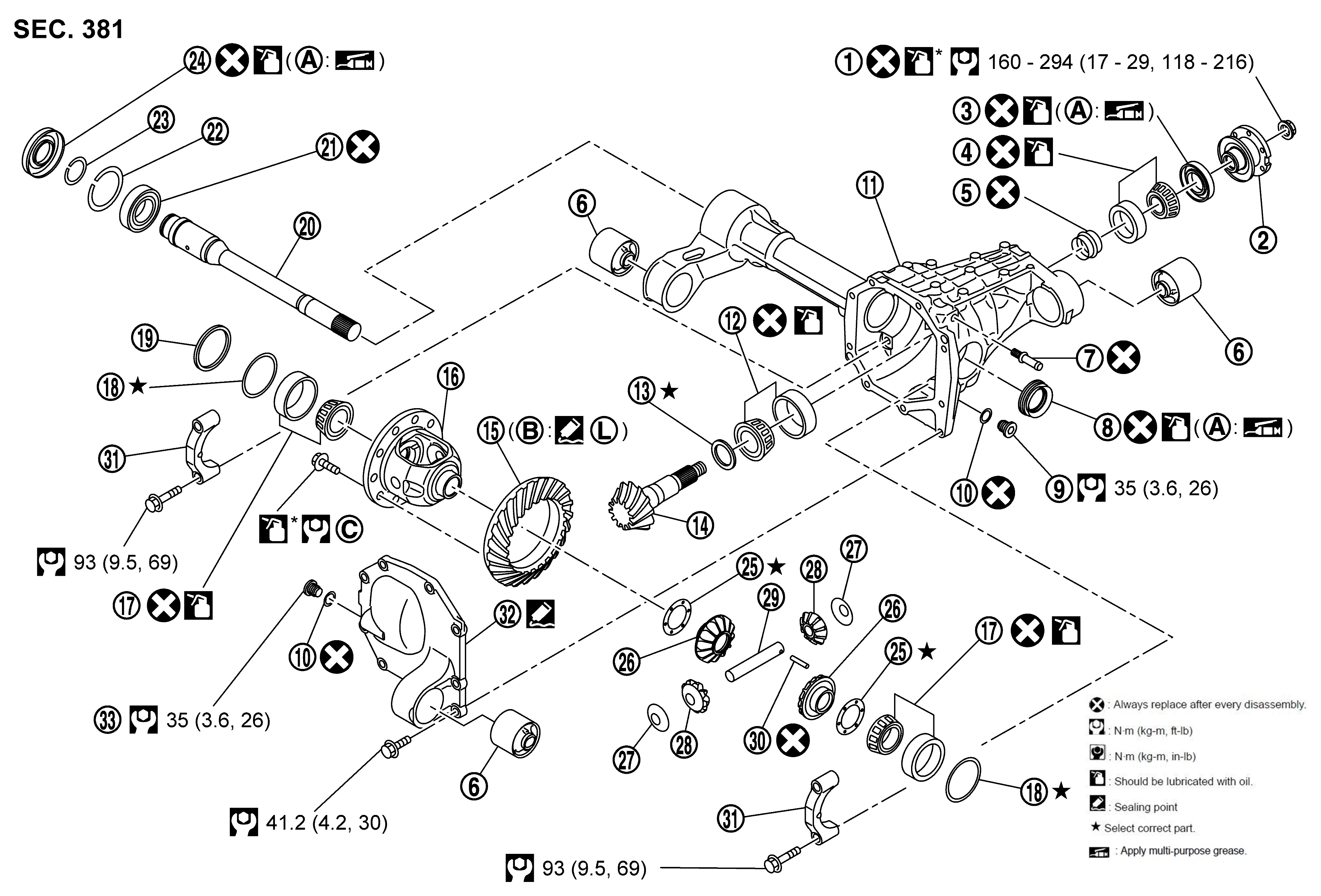

Fig 1: DIFFERENTIAL ASSEMBLY With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Drive pinion lock nut	Companion flange	Front oil seal
	Pinion front bearing	Collapsible spacer	Mounting insulator
	Breather connector	Side oil seal	Drain plug
	Gasket	Gear carrier	Pinion rear bearing
	Pinion height adjusting washer	Drive pinion	Drive gear
	Differential case	Side bearing	Side bearing adjusting washer
	Spacer	Side shaft	Side shaft bearing
	Snap ring	Snap ring	Side oil seal
	Side gear thrust washer	Side gear	Pinion mate thrust washer
	Pinion mate gear	Pinion mate shaft	Lock pin
	Bearing cap	Carrier cover	Filler plug
	Oil seal lip	Screw hole	Comply with the assembly procedure when tightening. Refer to Disassembly and Assembly .
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
: Select with proper thickness.
: Apply gear oil.
*: Apply anti-corrosion oil.
: Apply multi purpose grease.
: Apply Genuine Silicone RTV or equivalent. Refer to Recommended Chemical Products and Sealants .
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to Recommended Chemical Products and Sealants .
