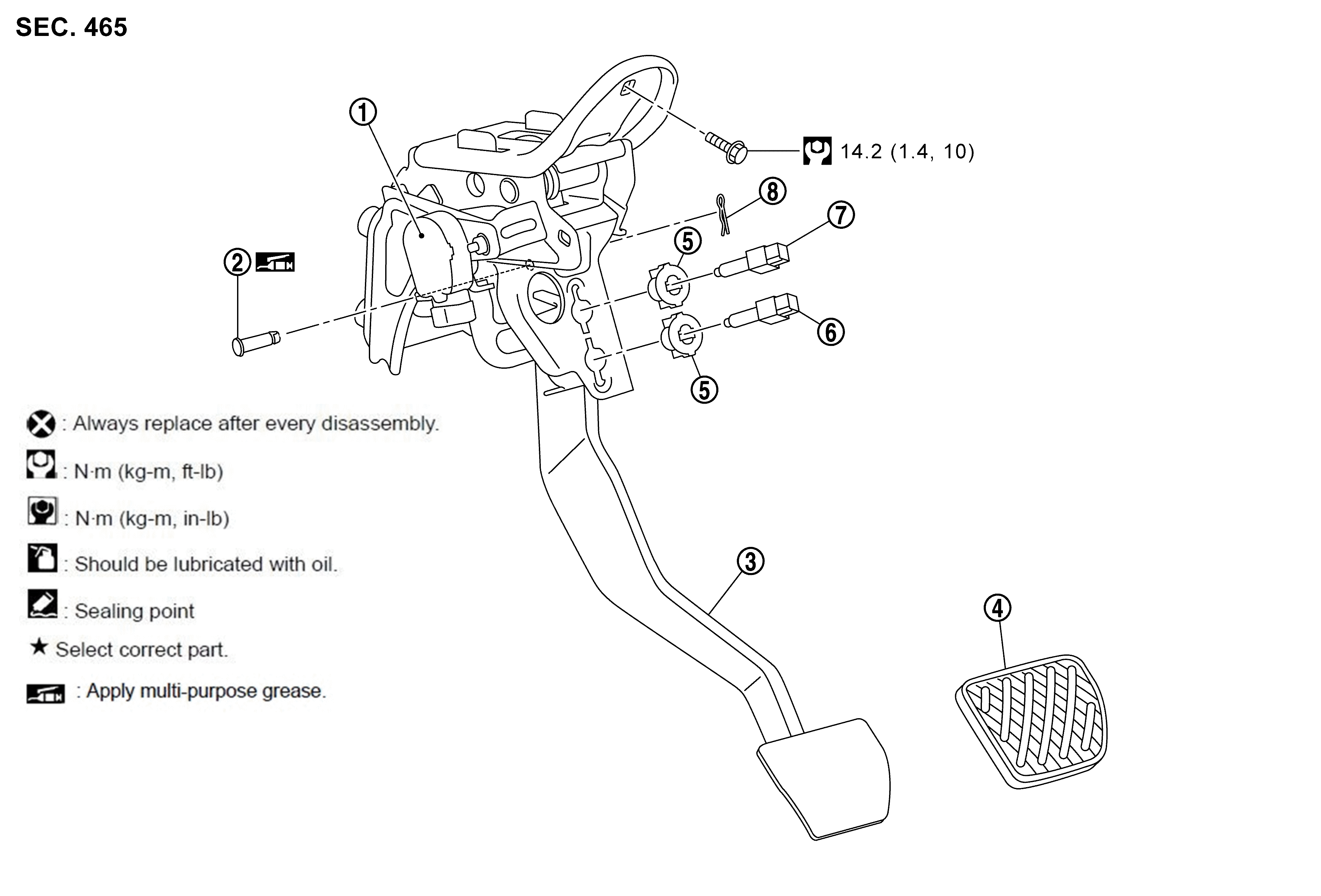

Exploded View
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Brake pedal stroke sensor (with pre-crash seat belt)
|
|
Clevis pin
|
|
Brake pedal assembly
|
|
|
Brake pedal pad
|
|
Clip
|
|
Brake switch
|
|
|
Stop lamp switch
|
|
Snap pin
|
|
: Apply multi-purpose grease.
|
|
: N.m (kg-m, ft-lb)
|
