Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

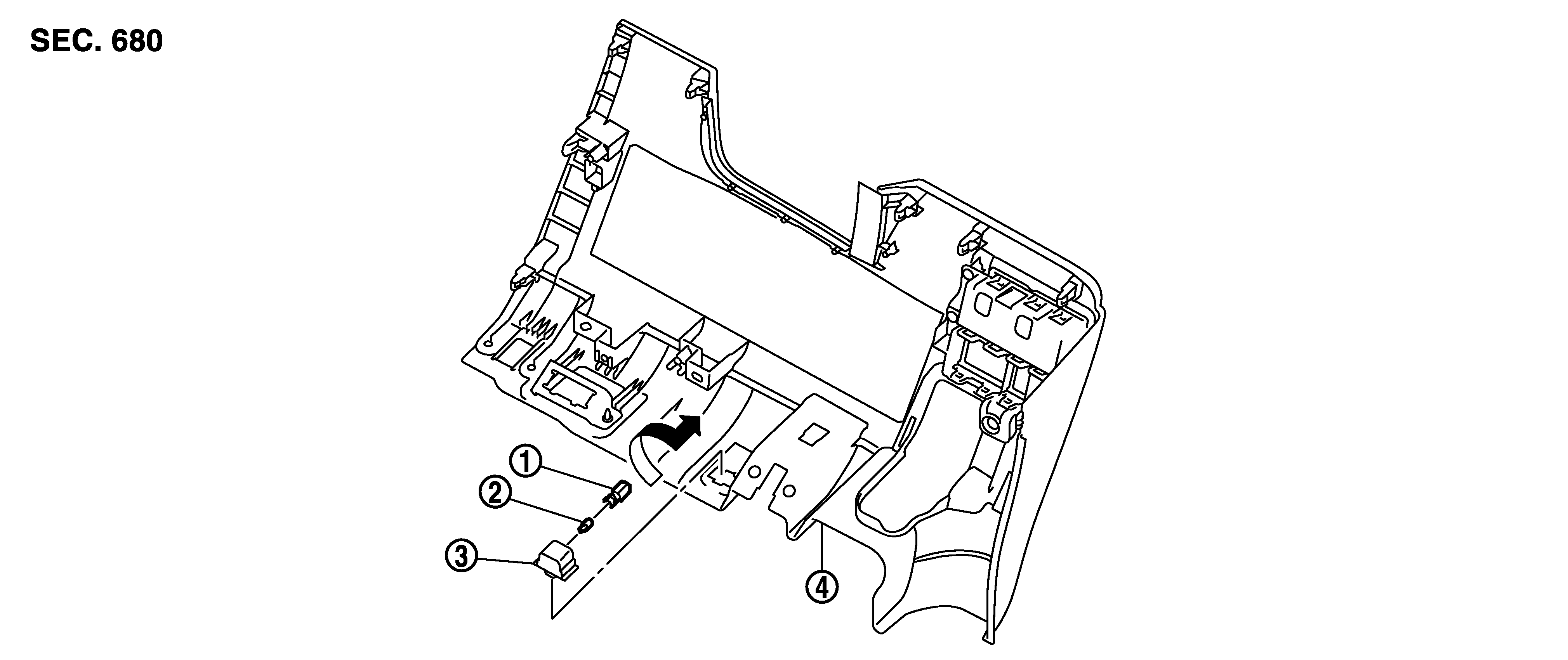

GNSJMLIA1051Z-051Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bulb socket

2.

Bulb

3.

Lamp housing

4.

Instrument lower panel LH
