Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

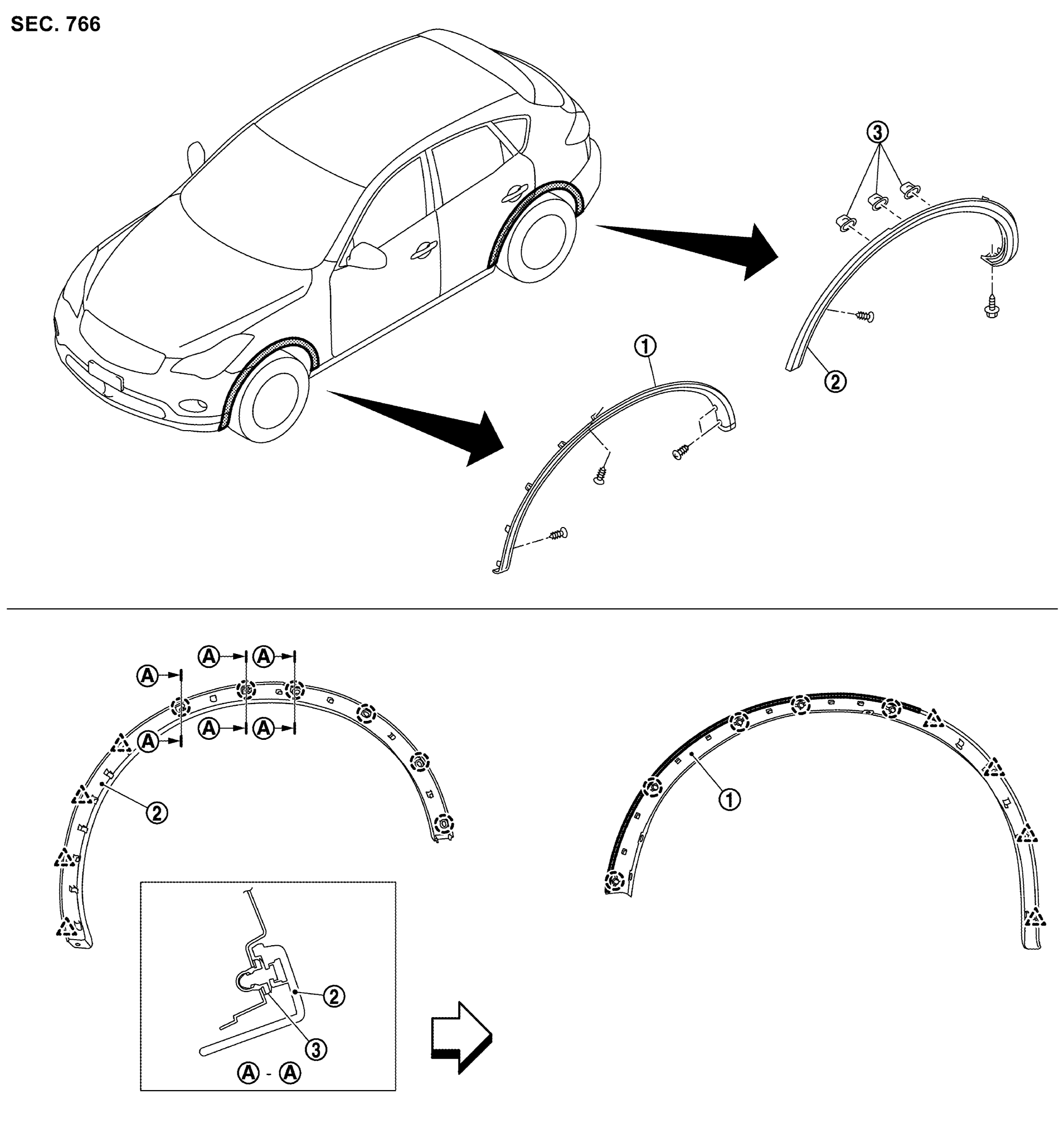

GNSJMKIB4801ZZ-801Courtesy of NISSAN NORTH AMERICA, INC.
1. Front fillet molding 2. Rear fillet molding 3. Grommet
MARU-H : Clip
SANKAKU-H : Pawl
ARROW : Vehicle front
