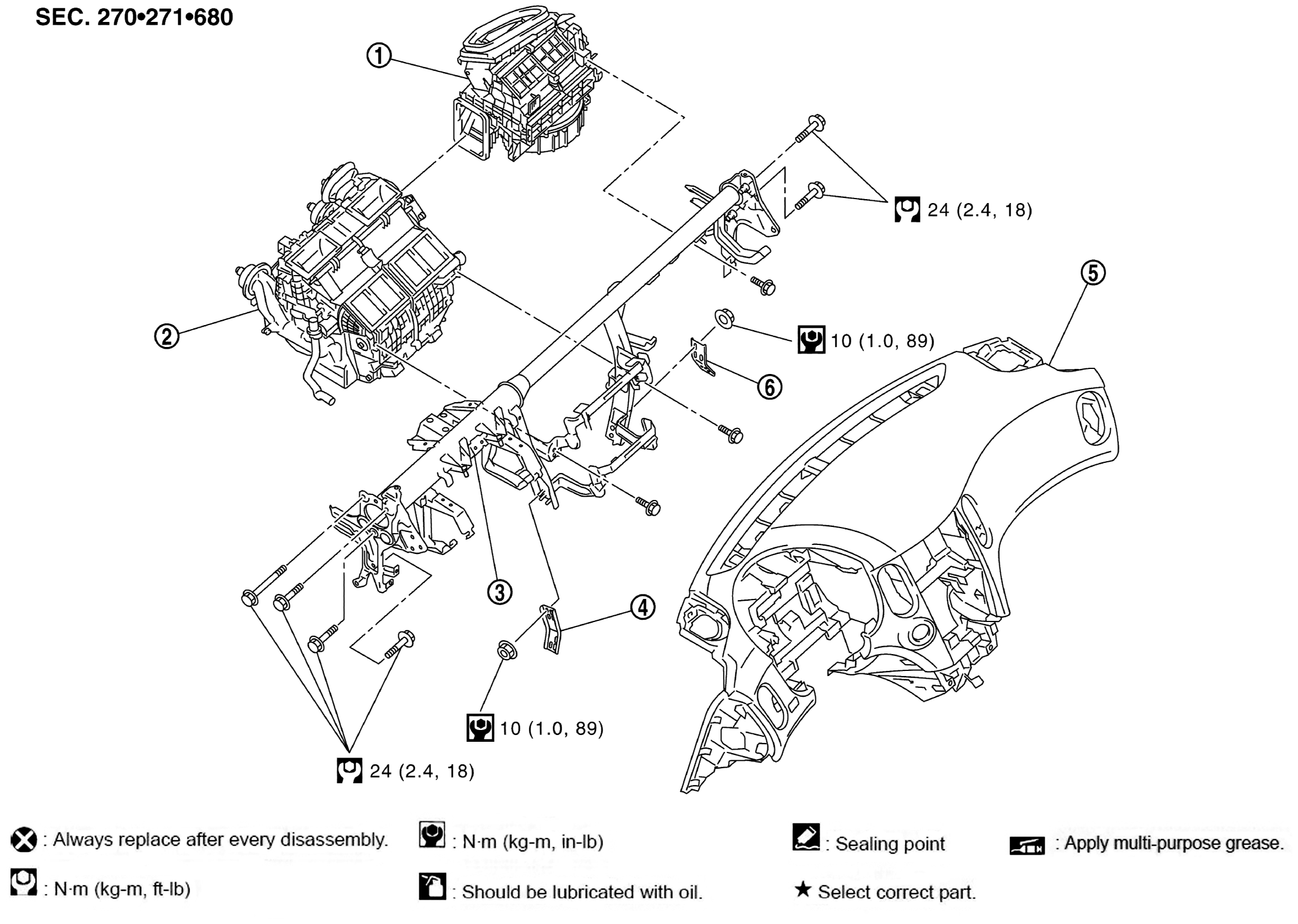

Exploded View With Torque Specifications: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Blower unit	2.	Heater & cooling unit assembly	3.	Steering member
4.	Instrument stay LH	5.	Instrument panel assembly	6.	Instrument stay RH
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
