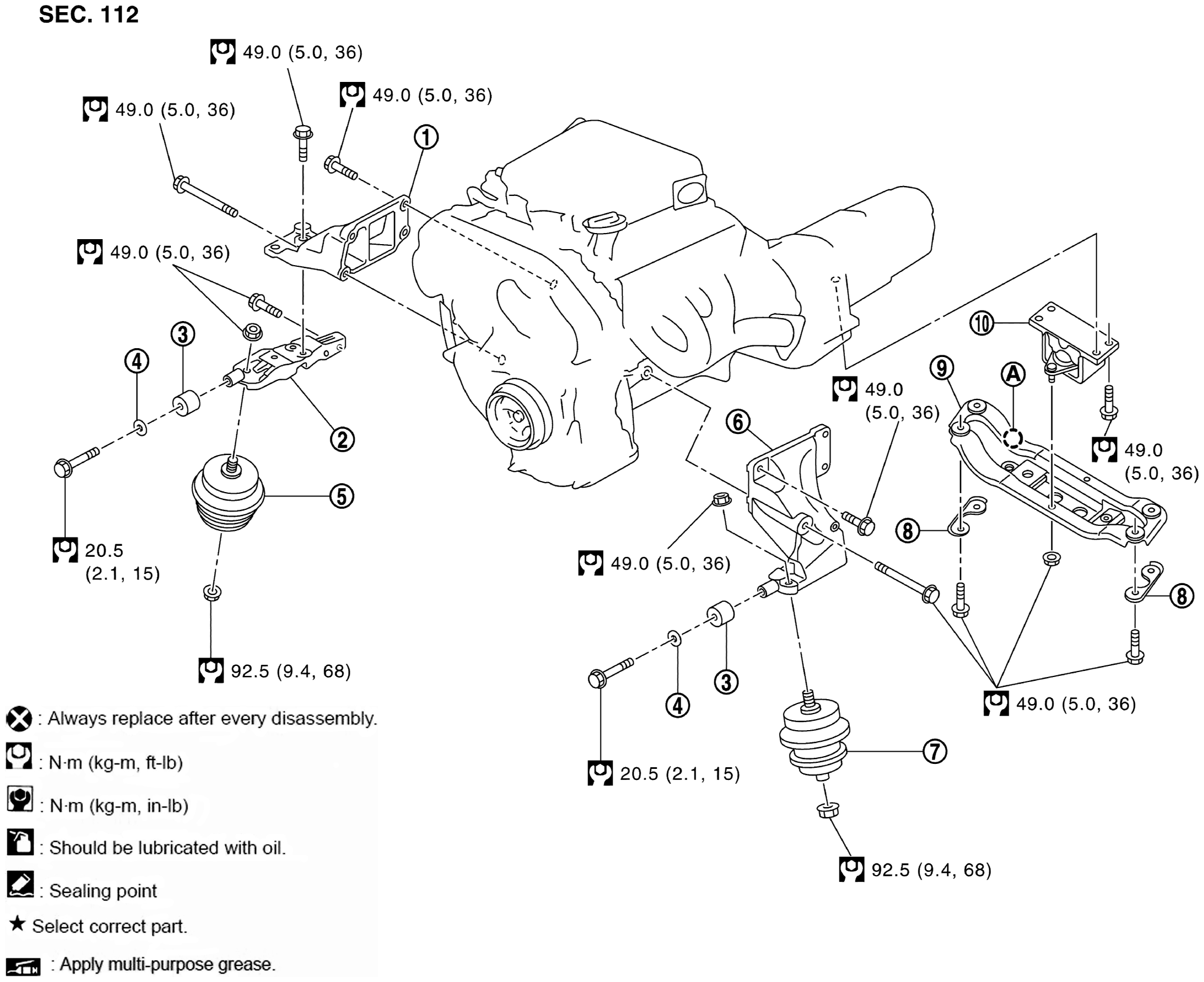

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Engine mounting bracket (RH) | 2. | Engine mounting bracket (RH) (lower) | 3. | Dynamic damper |
| 4. | Washer | 5. | Engine mounting insulator (RH) | 6. | Engine mounting bracket (LH) |
| 7. | Engine mounting insulator (LH) | 8. | Heat insulator | 9. | Rear engine mounting member |
| 10. | Engine mounting insulator (rear) | ||||
| A. | Front mark | ||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
