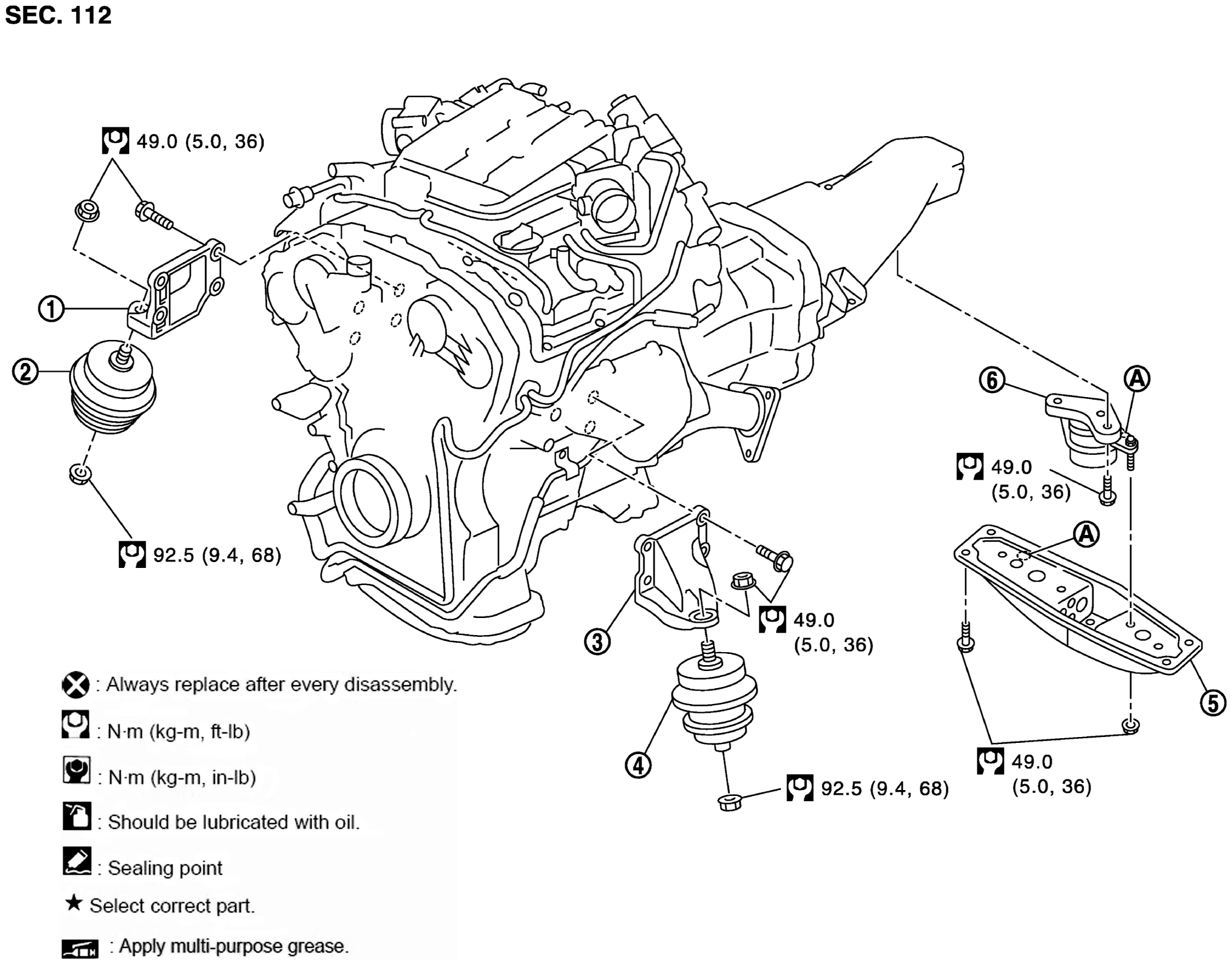

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Engine mounting bracket (RH) |
2. |
Engine mounting insulator (RH) |
3. |
Engine mounting bracket (LH) |
| 4. |
Engine mounting insulator (LH) |
5. |
Rear engine mounting member |
6. |
Engine mounting insulator (rear) |
| A. |
Front mark |
|
|
|
|
