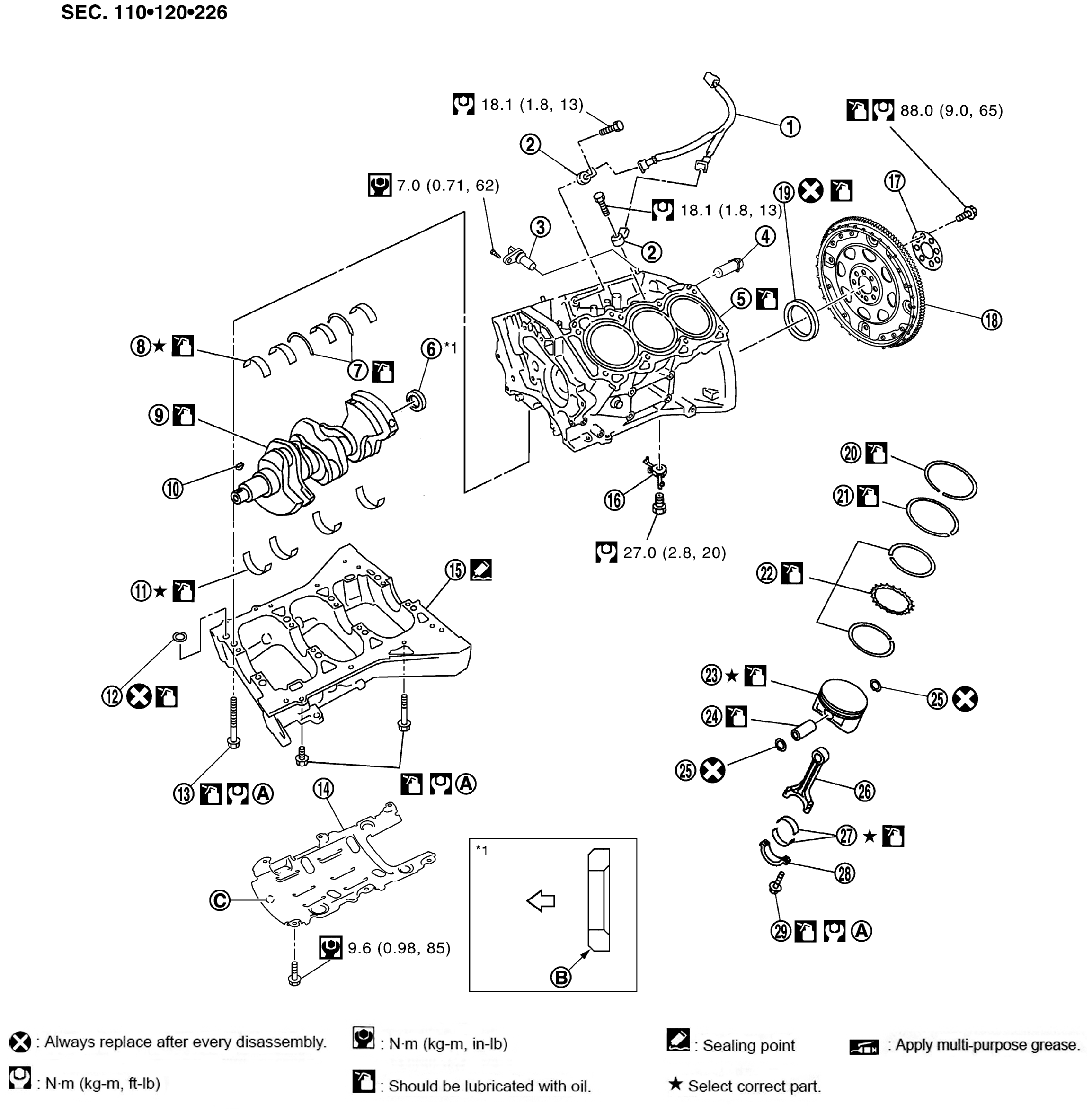

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Sub harness | 2. | Knock sensor | 3. | Crankshaft position sensor |
| 4. | Cylinder block heater (for Canada) | 5. | Cylinder block | 6. | Pilot converter |
| 7. | Thrust bearing | 8. | Main bearing (upper) | 9. | Crankshaft |
| 10. | Crankshaft key | 11. | Main bearing (lower) | 12. | O - ring |
| 13. | Lower cylinder block bolt | 14. | Baffle plate | 15. | Lower cylinder block |
| 16. | Oil jet | 17. | Reinforcement plate | 18. | Drive plate |
| 19. | Rear oil seal | 20. | Top ring | 21. | Second ring |
| 22. | Oil ring | 23. | Piston | 24. | Piston pin |
| 25. | Snap ring | 26. | Connecting rod | 27. | Connecting rod bearing |
| 28. | Connecting rod bearing cap | 29. | Connecting rod bolt | ||
| A. | Comply with the installation procedure when tightening. Refer to DISASSEMBLY AND ASSEMBLY | B. | Chamfered | C. | Front mark |
| : Crankshaft side | |||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
