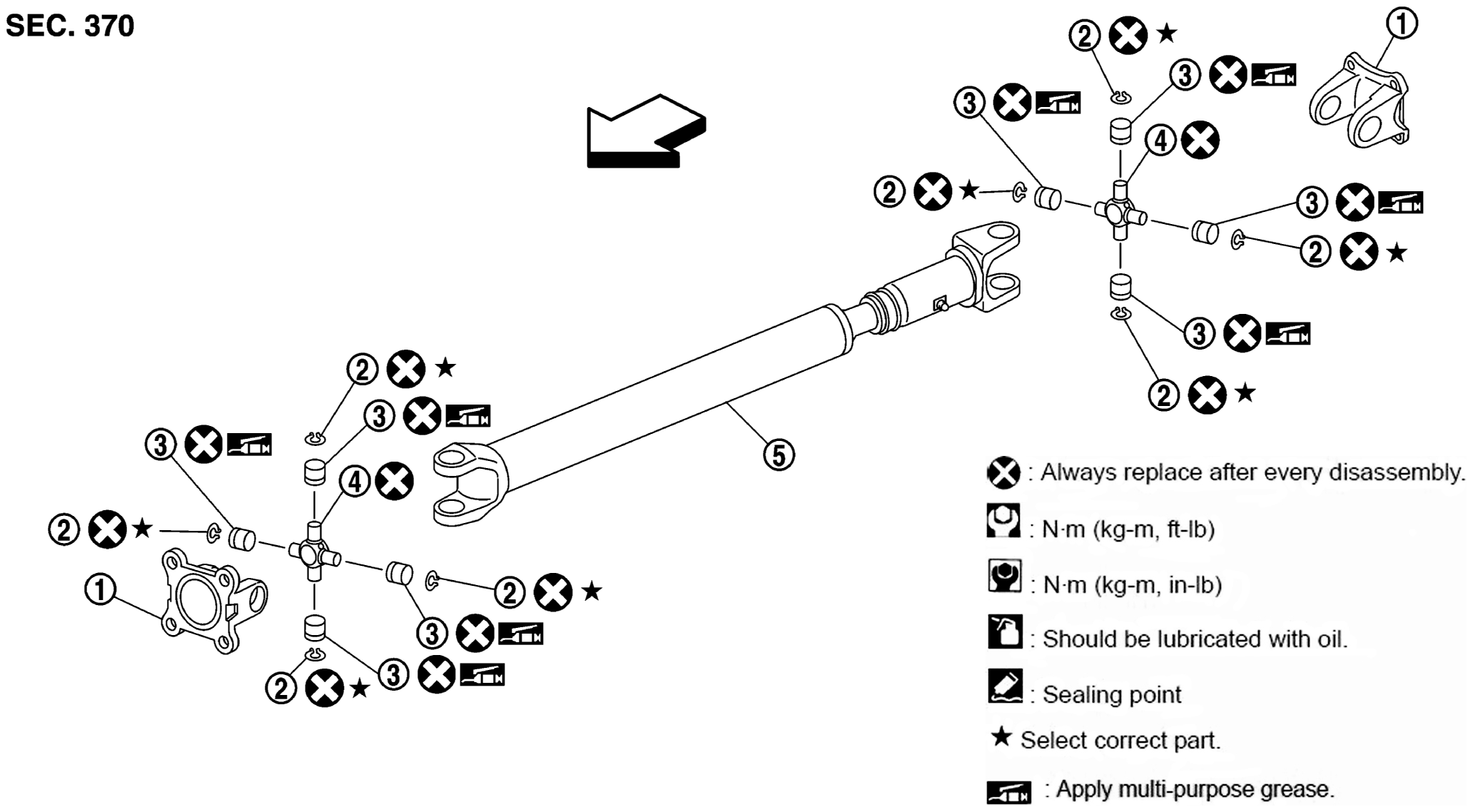

Exploded View With Torque Specifications: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Flange yoke	2.	Snap ring^*	3.	Bearing^*
4.	Journal^*	5.	Propeller shaft
* : Replace "2", "3" and "4" as a set.
: Vehicle front
	: Always replace after every disassembly.
: Select with proper thickness.
	:NISSAN genuine grease or an equivalent.
