Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

2WD models

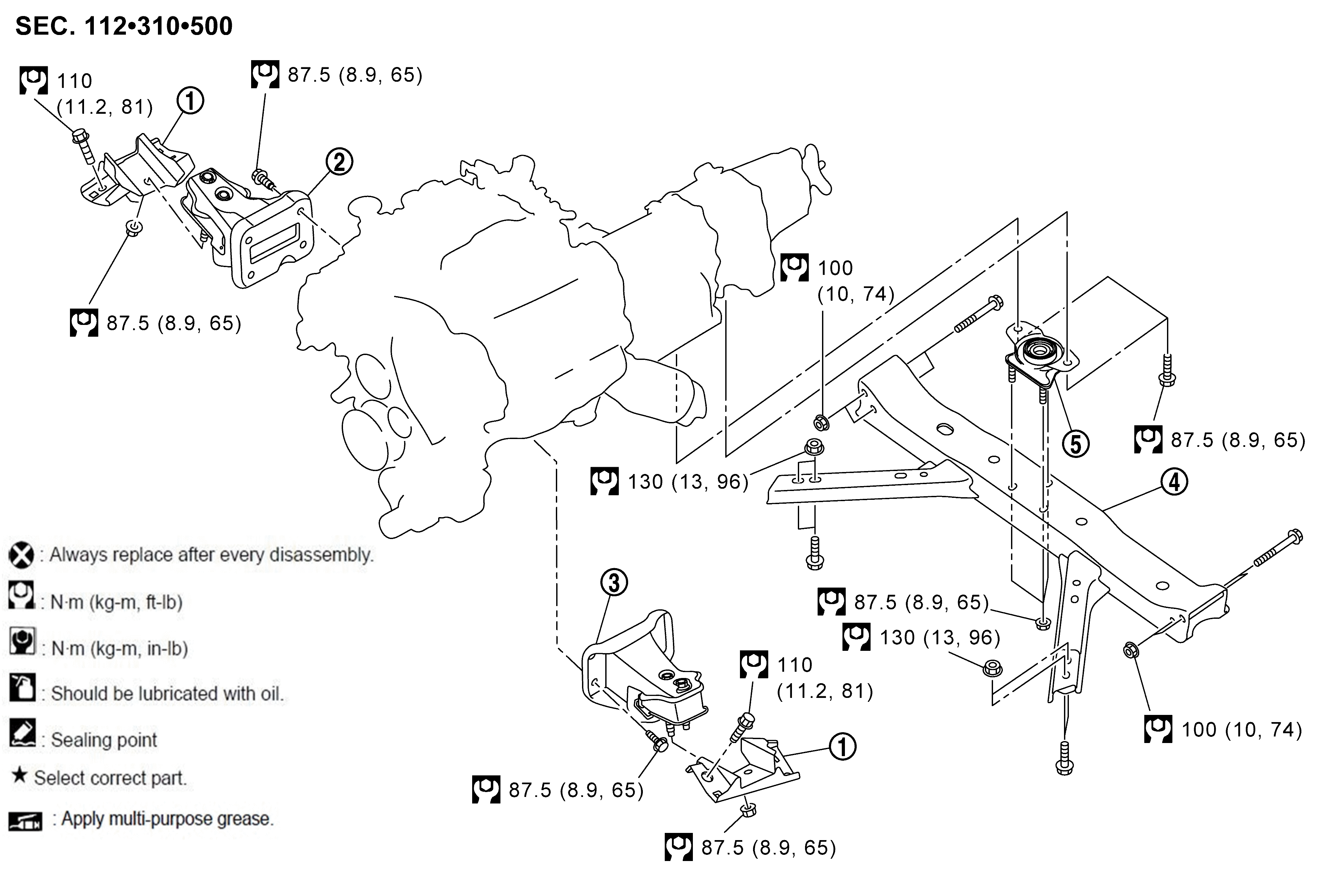

Fig 1: Engine Assembly Components With Torque Specification
GNSJSBIA7277GB-277Courtesy of NISSAN NORTH AMERICA, INC.
1. Engine mounting bracket 2. Engine mounting insulator (RH) 3. Engine mounting insulator (LH)
4. Rear engine mounting cross member 5. Rear engine mounting insulator
Refer to COMPONENTS for symbols in the figure.



AWD models

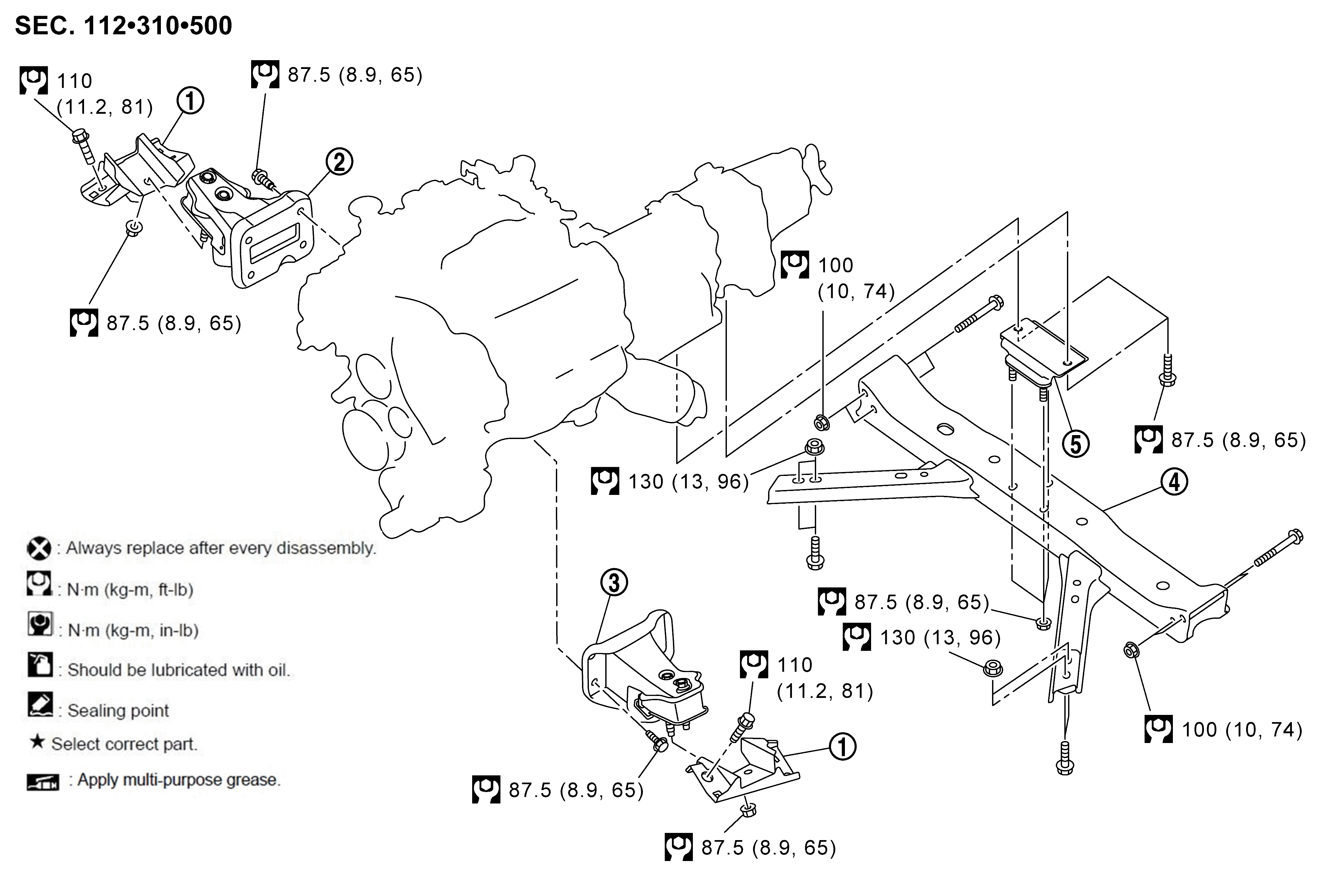

Fig 2: Engine Mounting Bracket Components With Torque Specification
GNSJSBIA7278GB-278Courtesy of NISSAN NORTH AMERICA, INC.
1. Engine mounting bracket 2. Engine mounting insulator (RH) 3. Engine mounting insulator (LH)
4. Rear engine mounting cross member 5. Rear engine mounting insulator
Refer to COMPONENTS for symbols in the figure.
