Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

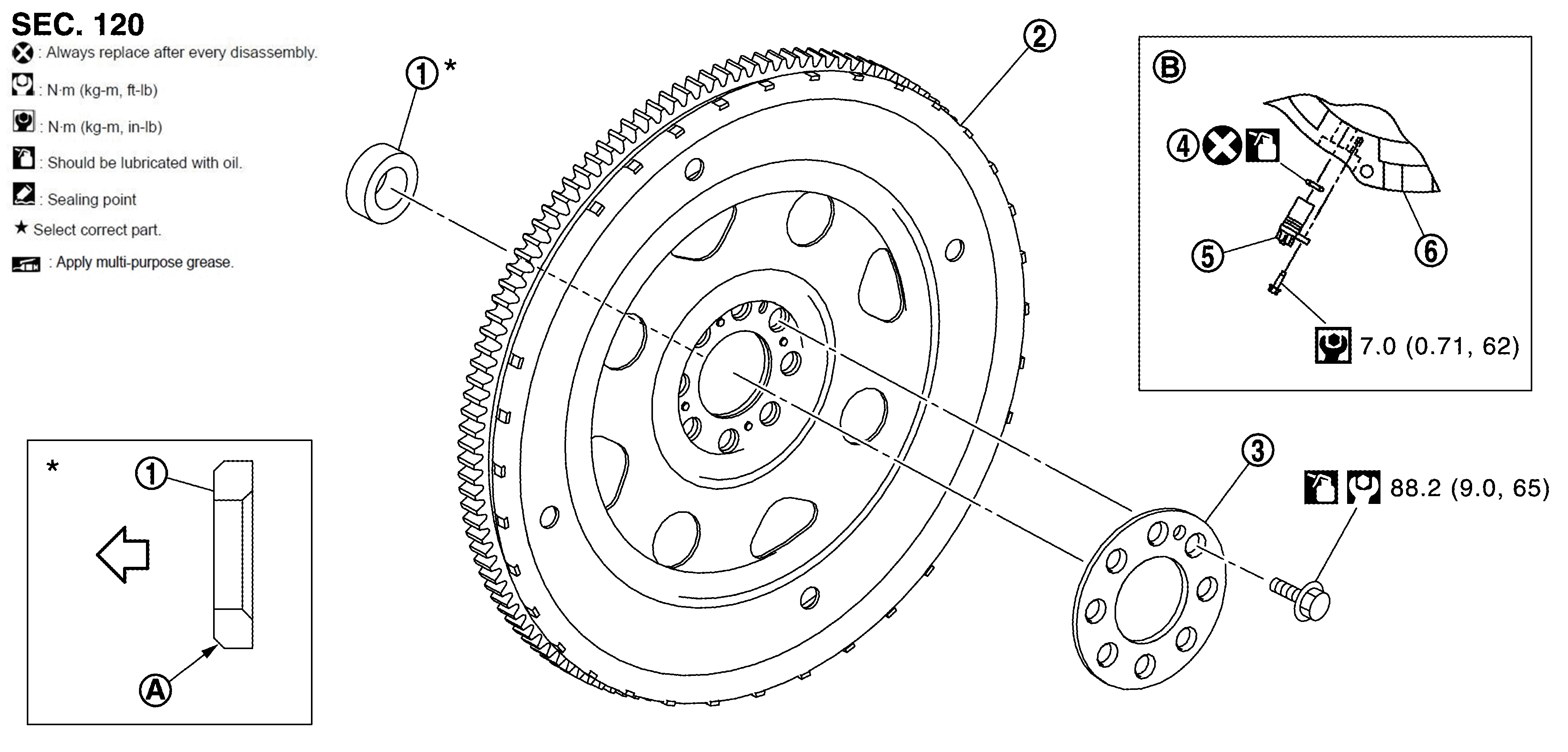

Fig 1: Drive Plate Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Pilot converter	2.	Drive plate	3.	Reinforcement plate
4.	O-ring	5.	Crankshaft position sensor (POS)	6.	Transmission
A.	Chamfered	B.	Installed on transmission
	:Crankshaft side
	: N•m (kg-m, in-lb)
	: N•m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with oil.
