Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

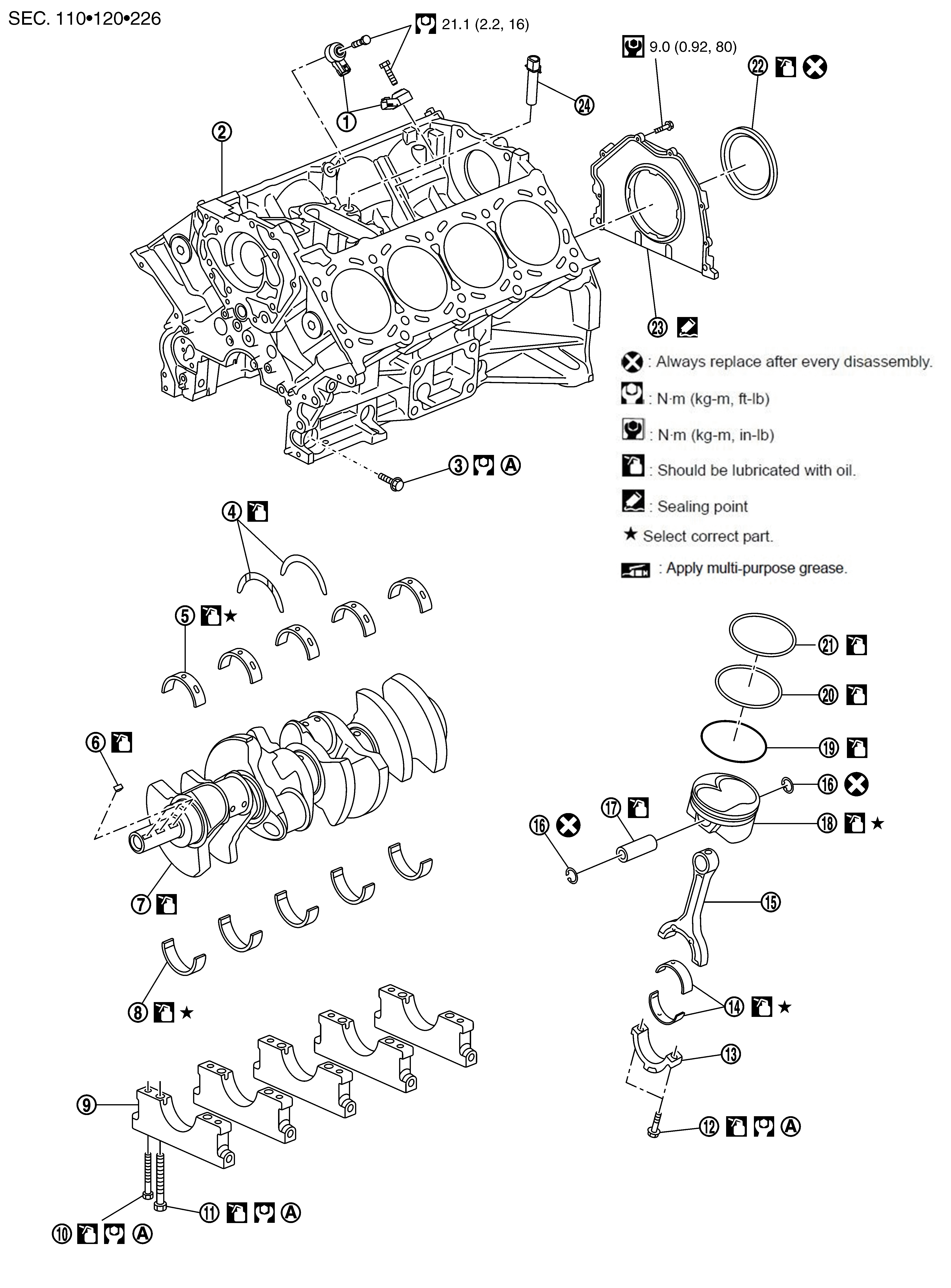

Fig 1: Cylinder Block Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Knock sensor	2.	Cylinder block	3.	Side bolt
4.	Thrust bearing	5.	Main bearing (upper)	6.	Crankshaft key
7.	Crankshaft	8.	Main bearing (lower)	9.	Main bearing cap
10.	Main bearing cap sub bolt	11.	Main bearing cap bolt	12.	Connecting rod cap bolt
13.	Connecting rod cap	14.	Connecting rod bearing	15.	Connecting rod
16.	Snap ring	17.	Piston pin	18.	Piston
19.	Oil ring	20.	Second ring	21.	Top ring
22.	Rear oil seal	23.	Rear oil seal retainer	24.	Cylinder block heater (for Canada)
A.	Comply with the assembly procedure when tightening. Refer to DISASSEMBLY AND ASSEMBLY .
Refer to COMPONENTS for symbol marks in the figure.
