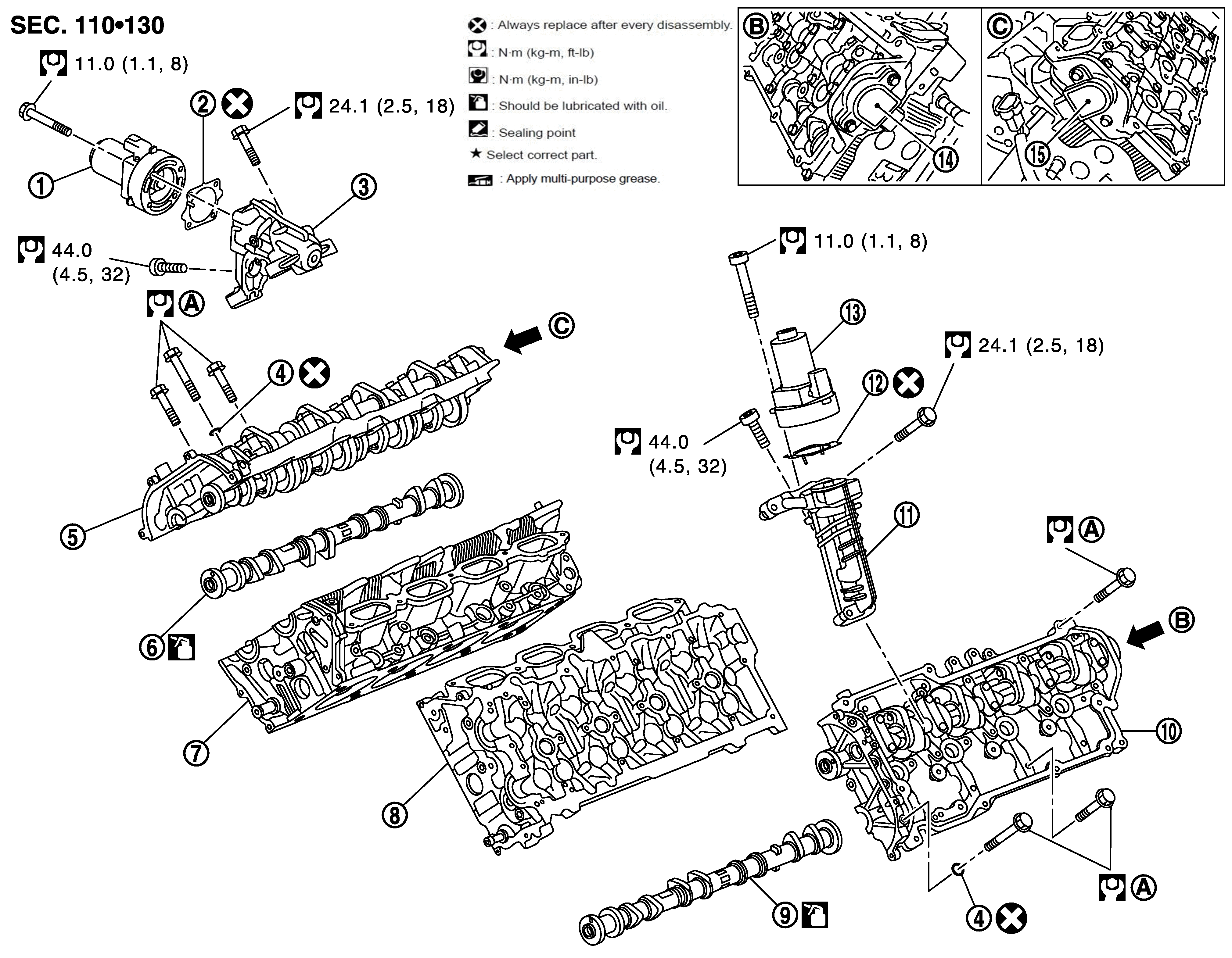

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | VVEL actuator motor assembly (bank 2) | 2. | Gasket | 3. | VVEL actuator housing assembly (bank 2) |
| 4. | Washer | 5. | VVEL ladder assembly (bank 2) | 6. | Exhaust camshaft (bank 2) |
| 7. | Cylinder head (bank 2) | 8. | Cylinder head (bank 1) | 9. | Exhaust camshaft (bank 1) |
| 10. | VVEL ladder assembly (bank 1) | 11. | VVEL actuator housing assembly (bank 1) | 12. | Gasket |
| 13. | VVEL actuator motor assembly (bank 1) | 14. | VVEL control shaft position sensor (bank 1) | 15. | VVEL control shaft position sensor (bank 2) |
| A. | Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION . | B. | View B | C. | View C |
| : N•m (kg - m, ft - lb) | |||||
| : Always replace after every disassembly. | |||||
