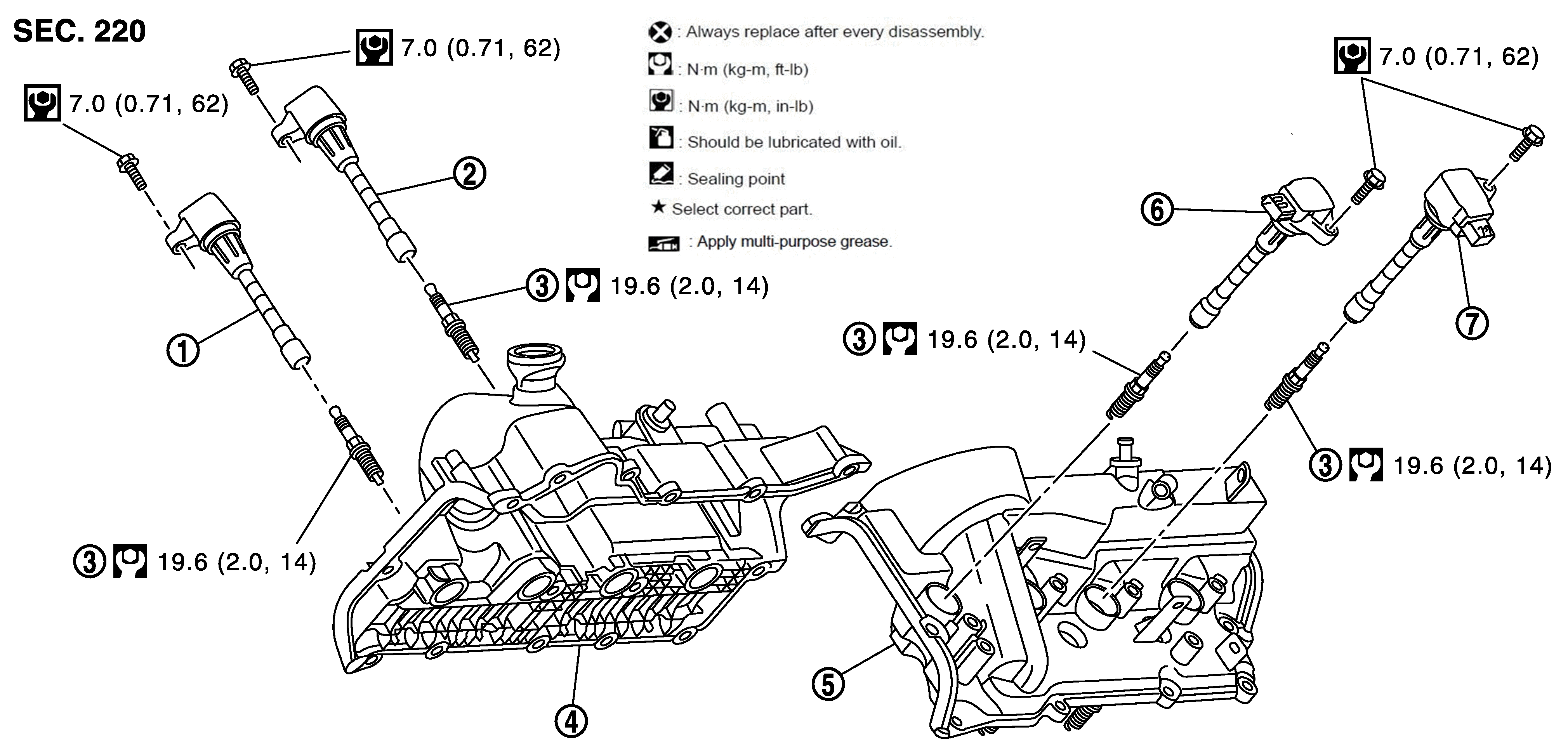

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Ignition coil (No. 2, 4) | 2. | Ignition coil (No. 6, 8) | 3. | Spark plug |
| 4. | Rocker cover (bank 2) | 5. | Rocker cover (bank 1) | 6. | Ignition coil (No. 1, 3) |
| 7. | Ignition coil (No. 5, 7) | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
