Cross-Sectional View
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

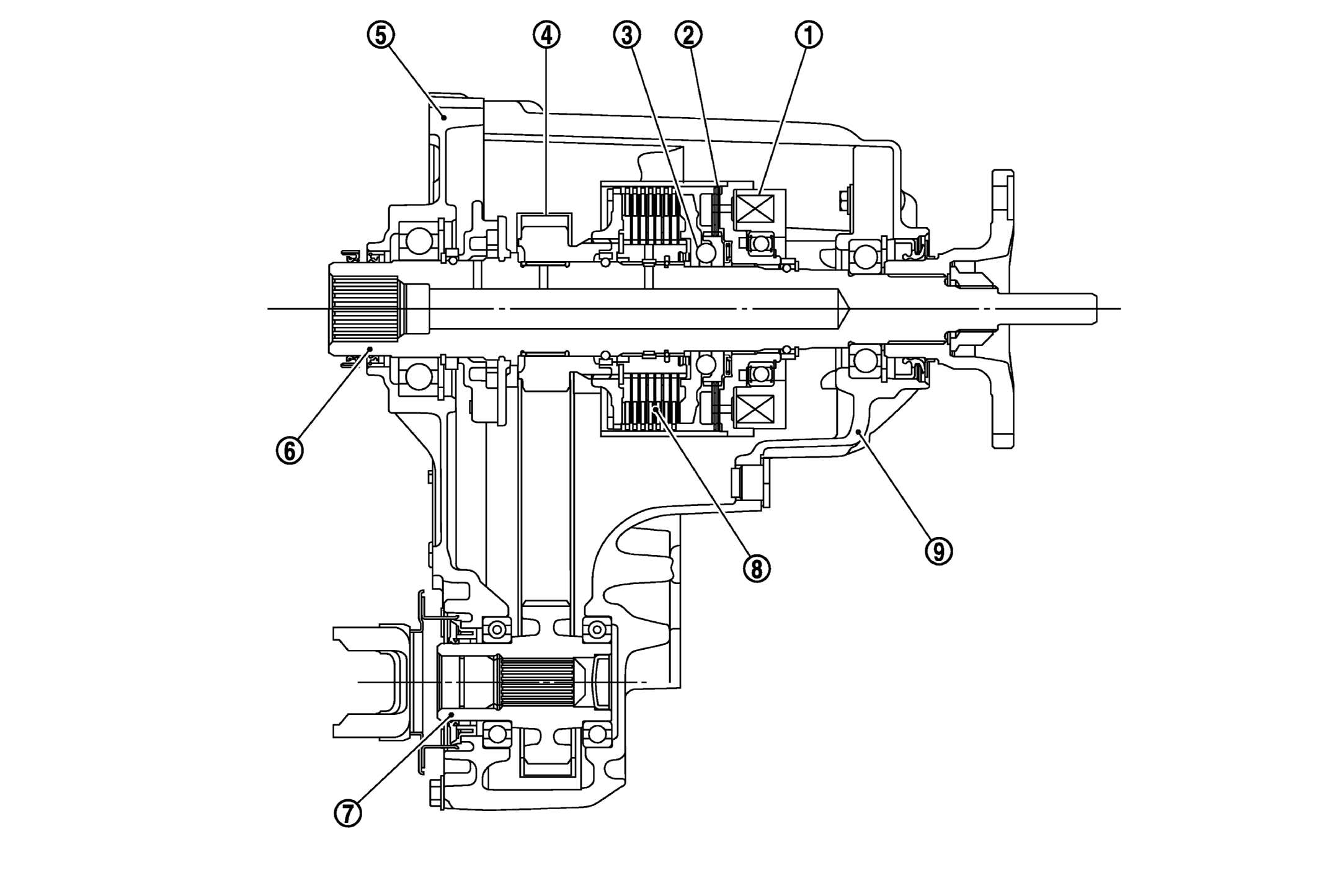

VQ37VHR
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Electromagnet |
2. |
Control clutch |
3. |
Cam |
| 4. |
Drive chain |
5. |
Front case |
6. |
Main shaft |
| 7. |
Front drive shaft |
8. |
Main clutch |
9. |
Rear case |
VK50VE
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Electromagnet |
2. |
Control clutch |
3. |
Cam |
| 4. |
Drive chain |
5. |
Front case |
6. |
Main shaft |
| 7. |
Front drive shaft |
8. |
Main clutch |
9. |
Rear case |
