Exploded View With Torque Specifications

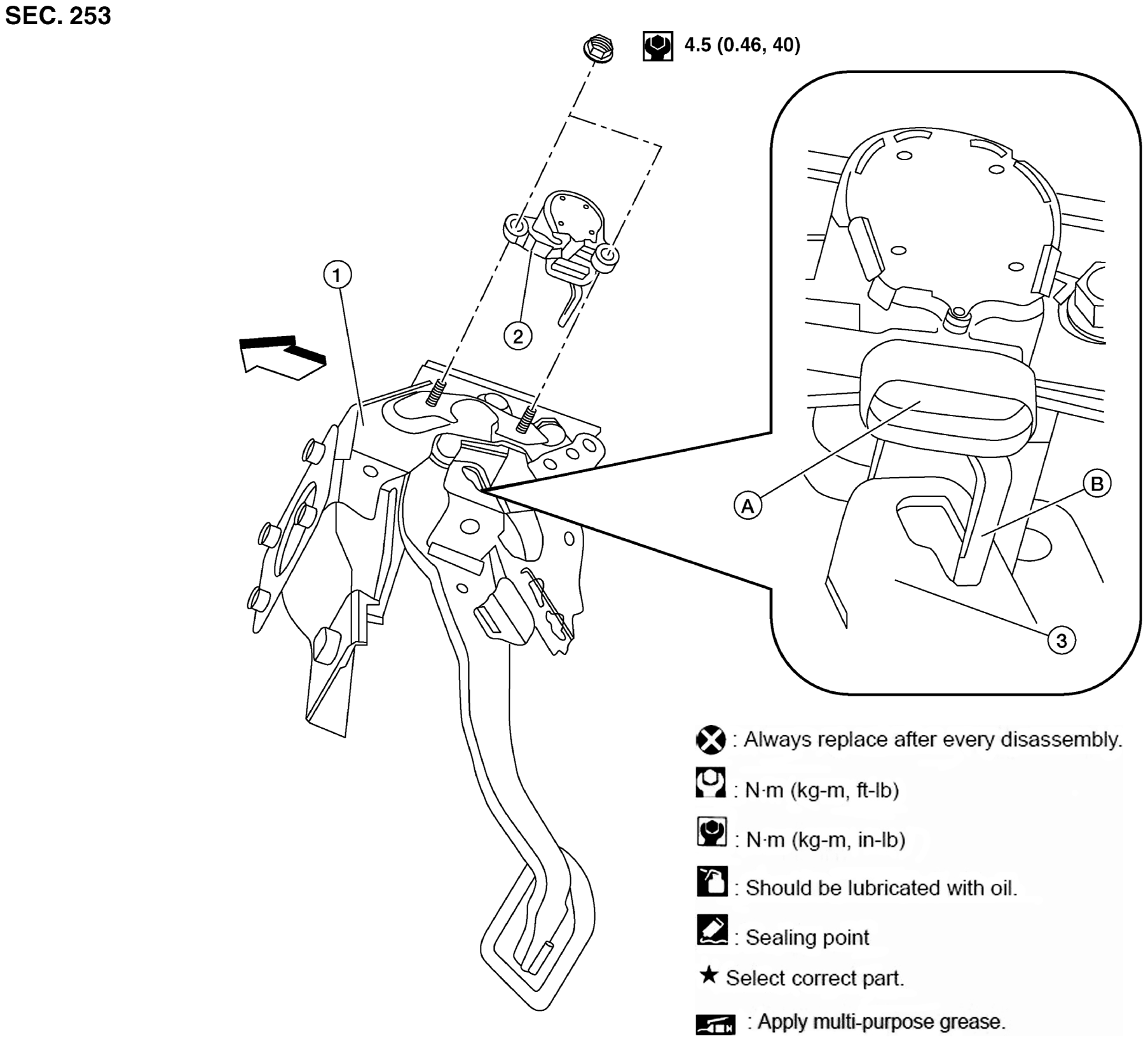

GNSAWFIA1040ZZ-040Courtesy of NISSAN NORTH AMERICA, INC.
1. Brake pedal 2. Brake pedal stroke sensor 3. Brake pedal stroke sensor bracket
A. Brake pedal stroke sensor connector B. Stroke sensor lever ARROW Front
