Steering Column
>>
Exploded View
Exploded View

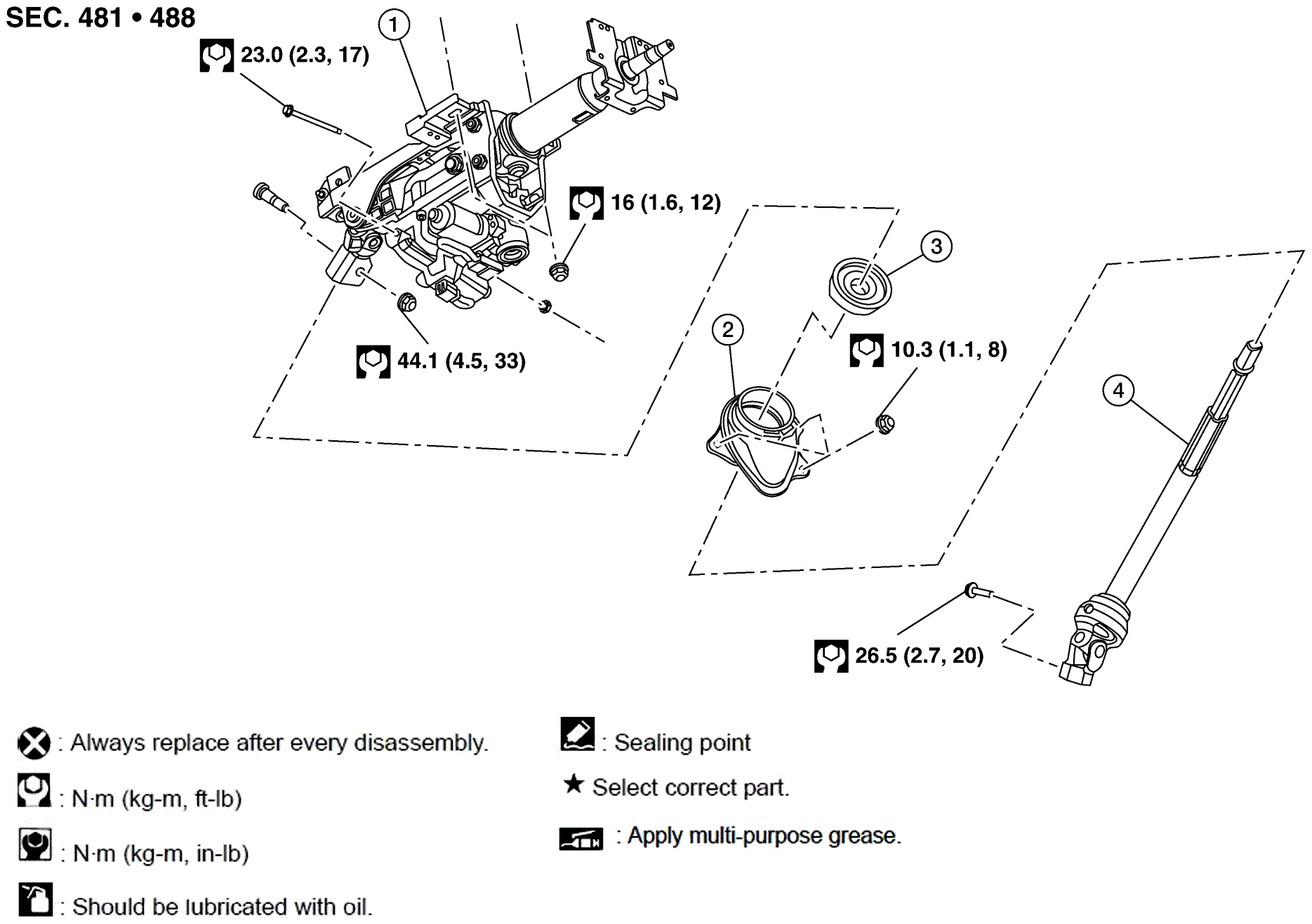

Fig 1: Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Hole cover
3.
Lower boot
4.
Steering intermediate shaft
