Exploded View : Removal

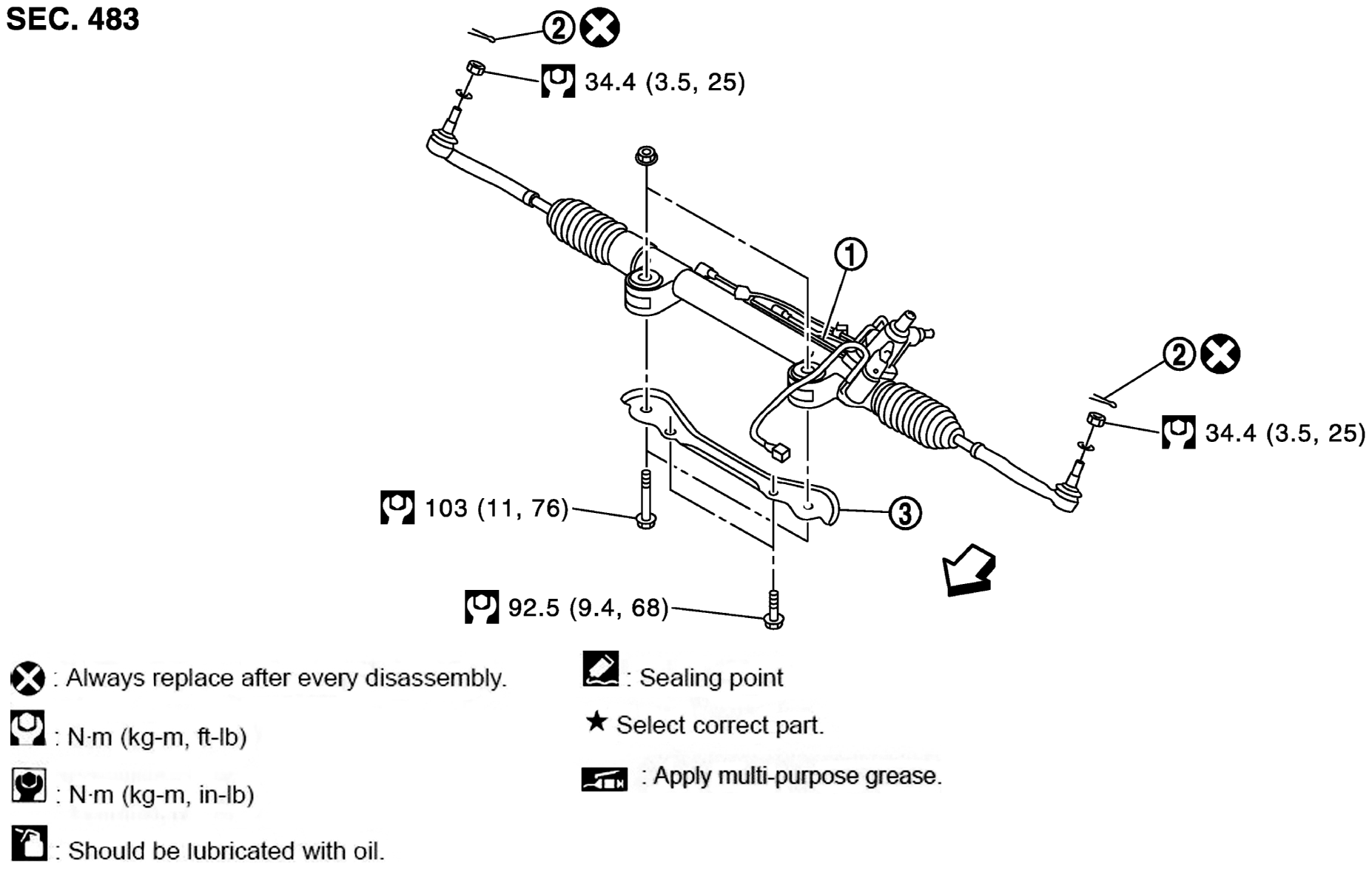

Fig 1: Steering Gear And Linkage 2WD With Torque Specifications
GNSJSGIA0777GB-777Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. Cotter pin 3. Rack stay
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the illustration.
