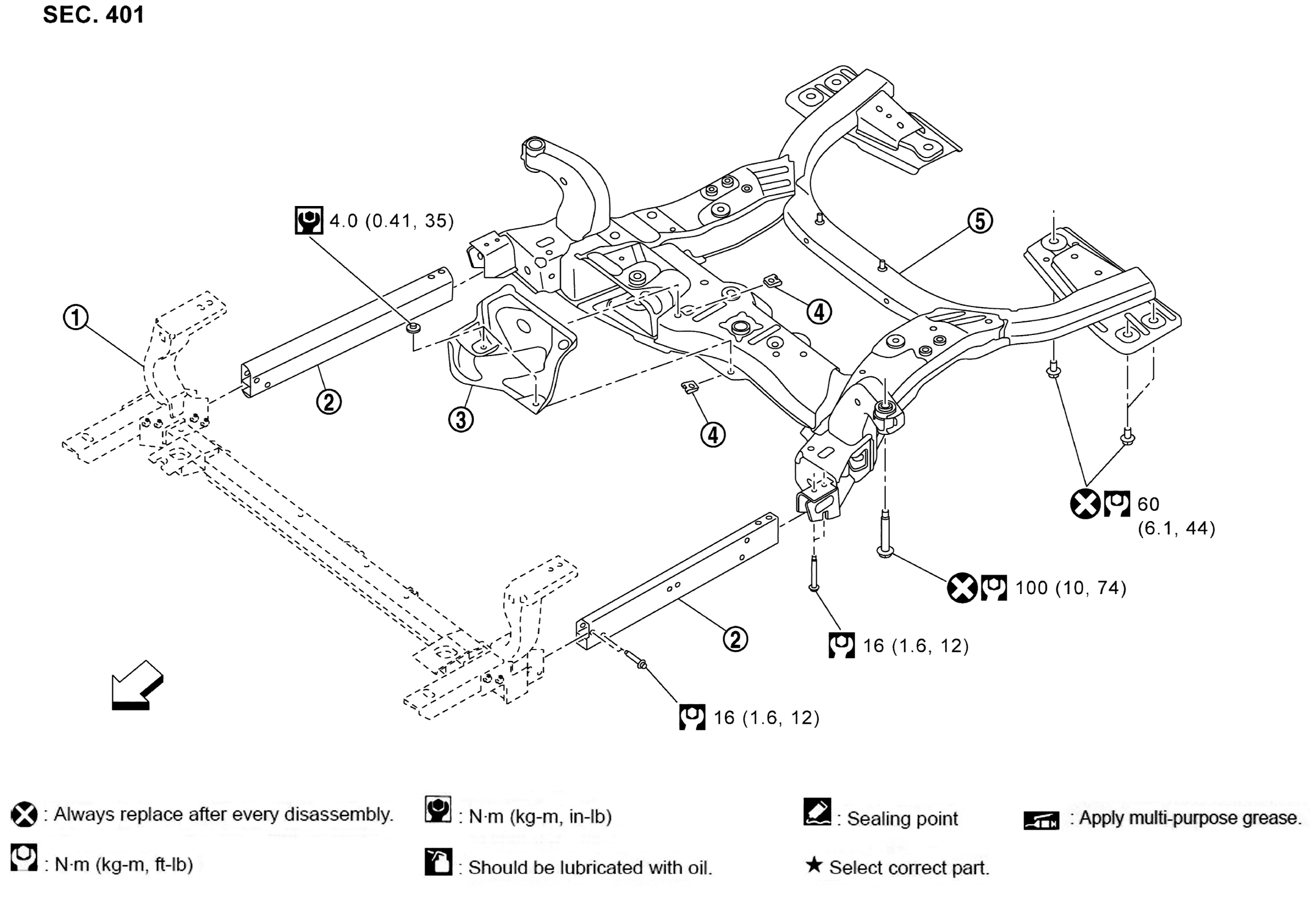

Exploded View

Fig 1: Front Suspension Member With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Radiator core support lower	Crossbar	Heat insulator
	Grommet	Front suspension member
: Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
