Timing Chart

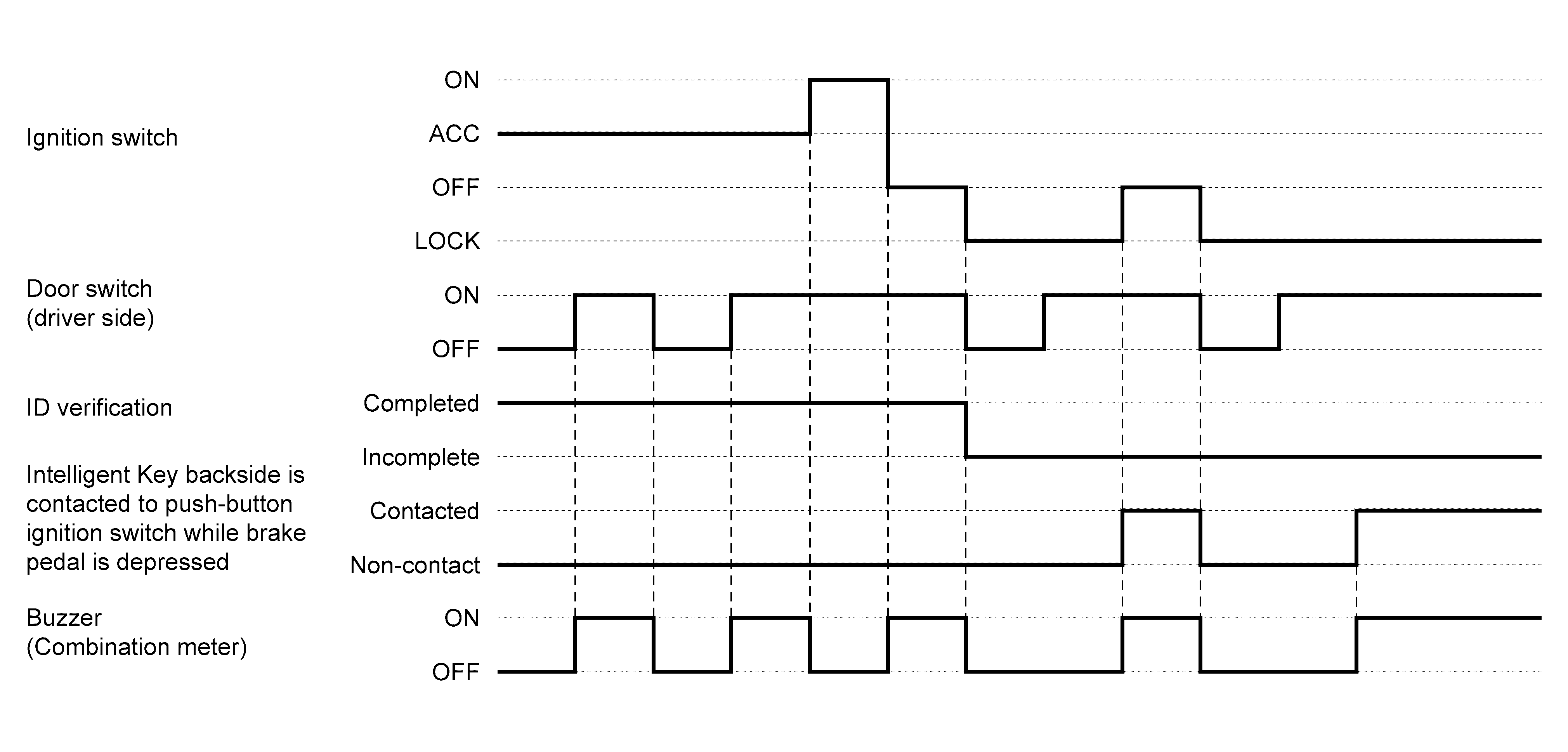

FOR INTERNAL

GNSJMKIB6770GB-770

Courtesy of NISSAN NORTH AMERICA, INC.

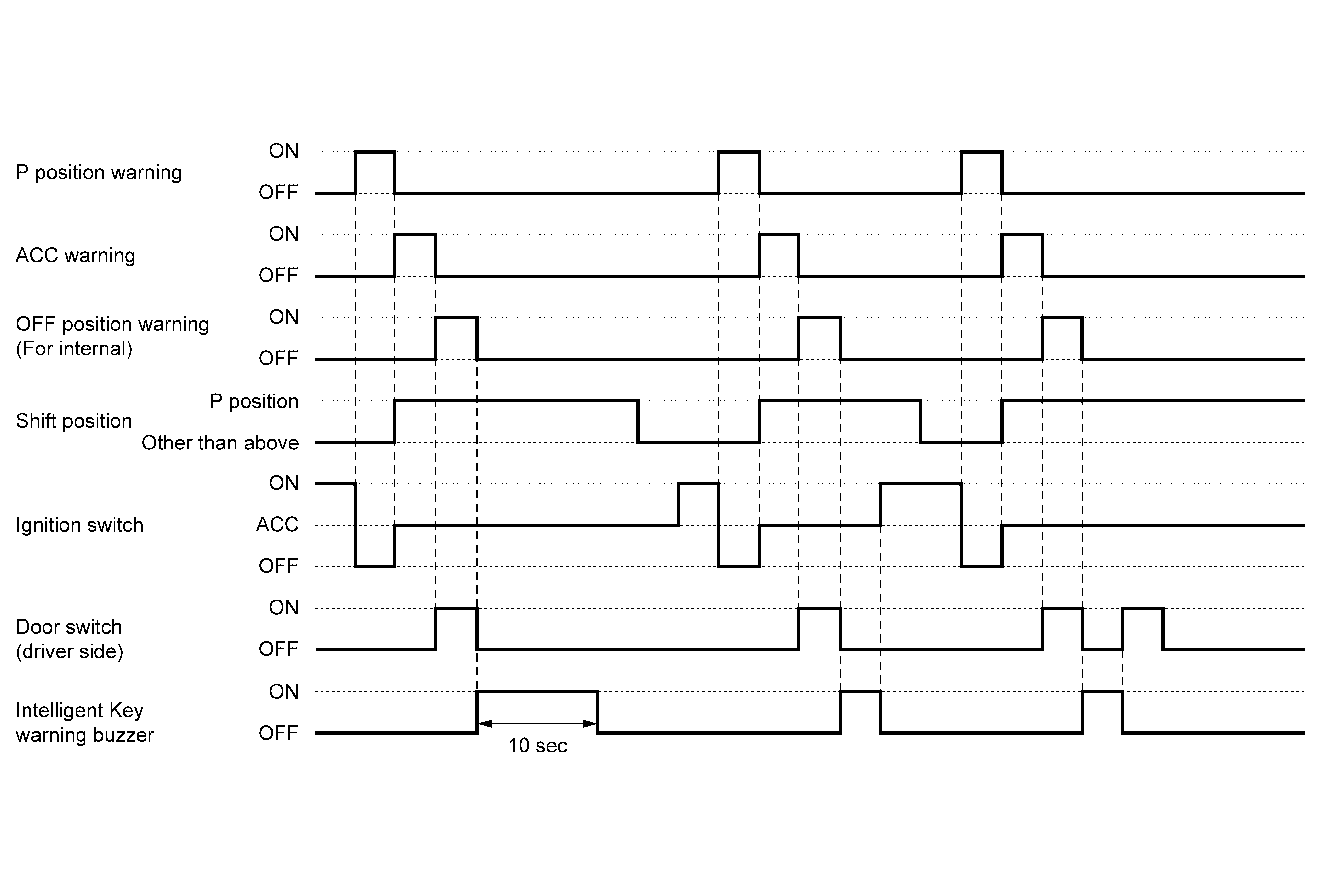

FOR EXTERNAL

GNSJMKIB6771GB-771

Courtesy of NISSAN NORTH AMERICA, INC.
