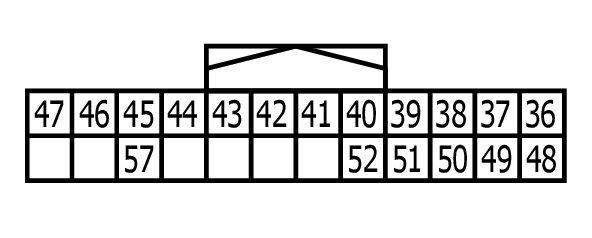

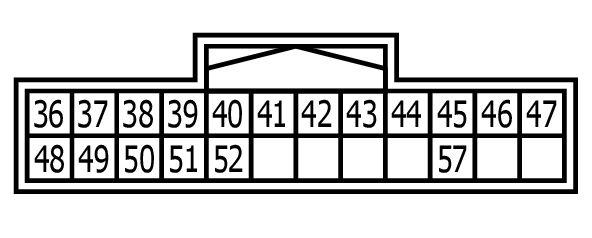

Av Control Unit Connector End View (M202)
Connector Types: TH24FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 36 | BG | SIGNAL VCC |
| 37 | LG | SIGNAL GND |
| 38 | R | HP |
| 39 | BR | COMM (DISP->CONT) |
| 40 | B | RGB AREA (YS) SIGNAL |
| 41 | SHIELD | SHIELD |
| 42 | G | RGB SYNC |
| 43 | B | RGB (R:RED) SIGNAL |
| 44 | W | RGB (G:GREEN) SIGNAL |
| 45 | R | RGB (B:BLUE) SIGNAL |
| 46 | BG | COMPOSITE IMAGE SIGNAL GND |
| 47 | SB | COMPOSITE IMAGE SIGNAL |
| 48 | Y | INVERTER VCC |
| 49 | BR | INVERTER GND |
| 50 | W | VP |
| 51 | Y | COMM (CONT->DISP) |
| 52 | SB | SHIELD |
| 57 | SHIELD | SHIELD |
