Home >> Infiniti >> 2016 >> Q50 Base, AWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 8 (Security Control System (Except Hybrid)) >> System Description >> System >> Vehicle Security System >> Circuit Diagram >> For VR30DDTT Engine Models (Except For MEXICO)

For VR30DDTT Engine Models (Except For MEXICO)

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

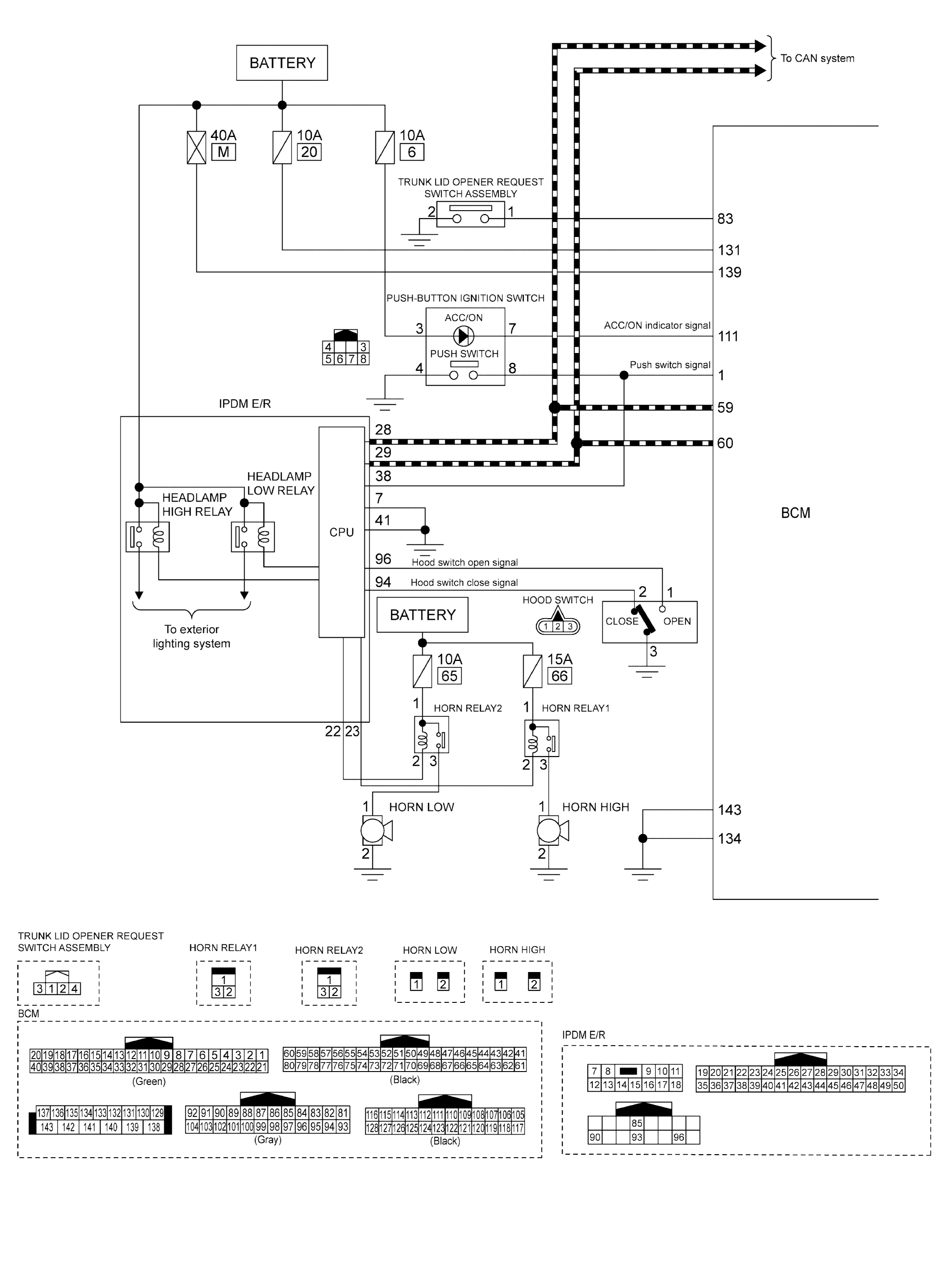

GNSJMKIB8729GB-729Courtesy of NISSAN NORTH AMERICA, INC.
GNSJMKIB8730GB-730Courtesy of NISSAN NORTH AMERICA, INC.
