For 2.0L Turbo Gasoline Engine Models

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

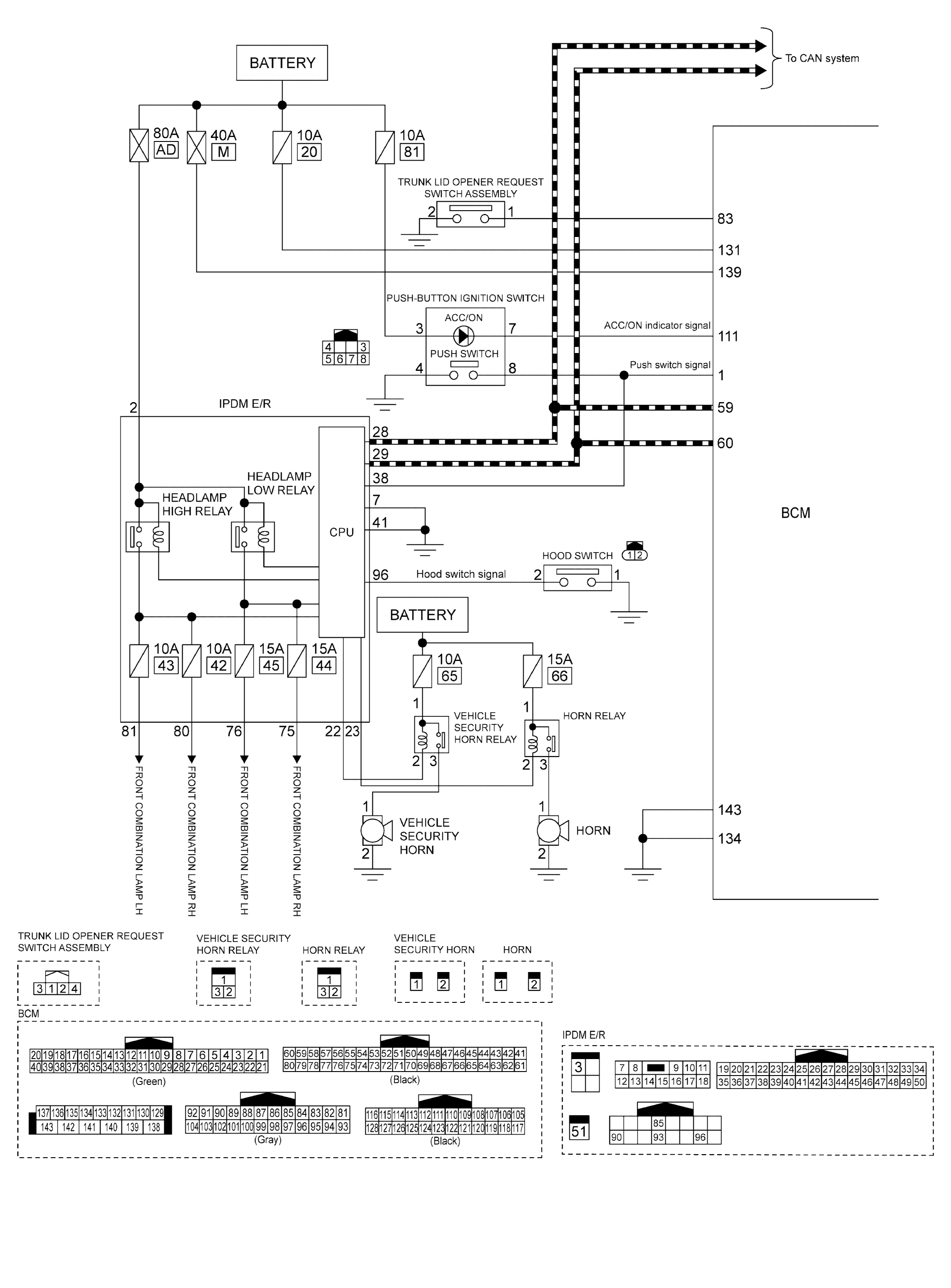

GNSJMKIB7510GB-510Courtesy of NISSAN NORTH AMERICA, INC.
GNSJMKIB7511GB-511Courtesy of NISSAN NORTH AMERICA, INC.
