Exploded View With Torque Specifications

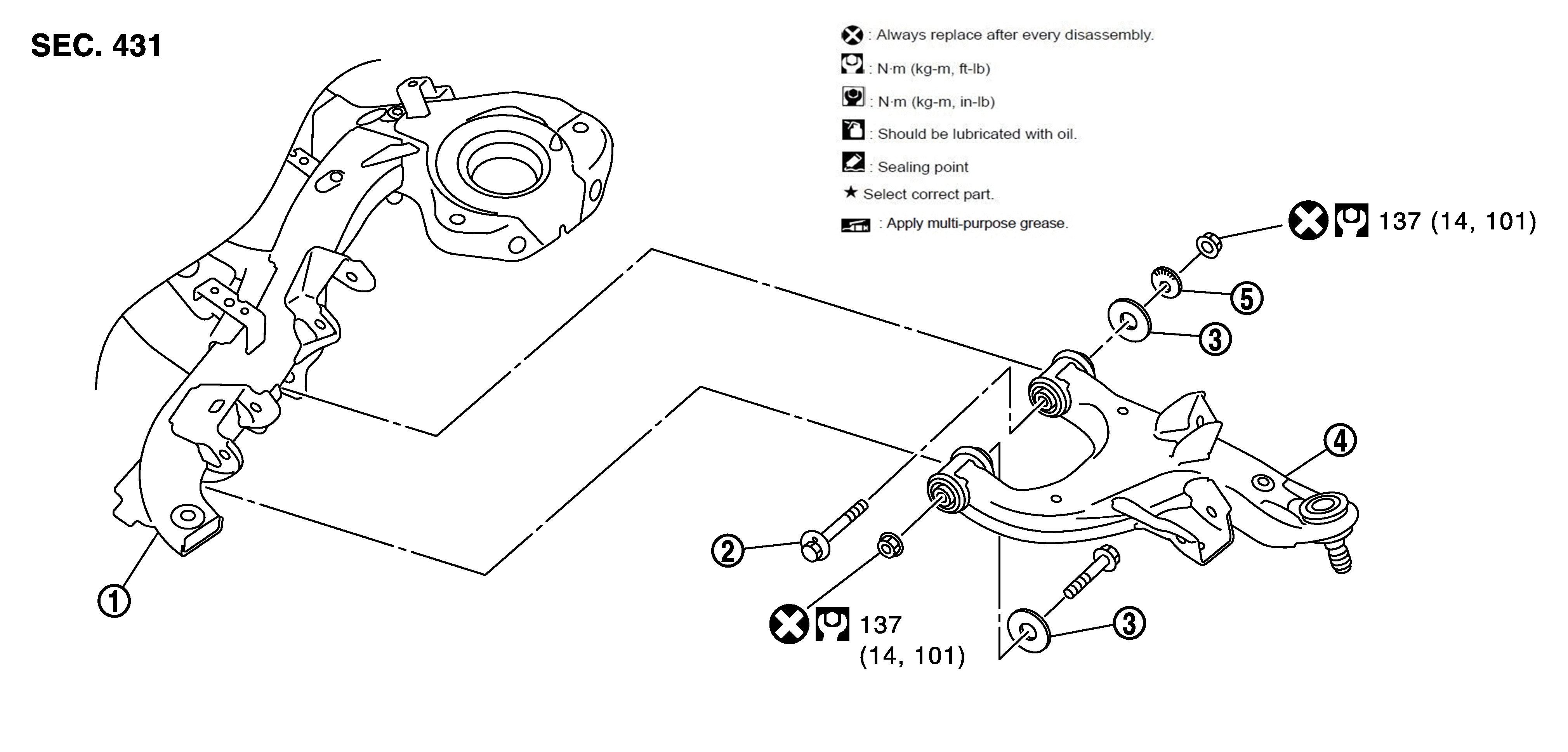

Fig 1: Exploded View Of Rear Suspension Front Lower Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension member	2.	Adjusting bolt	3.	Stopper rubber
4.	Front lower link	5.	Eccentric disc
Refer to COMPONENTS for symbols in the figure.
