Wiring Diagram - PDS (Power Distribution System) -

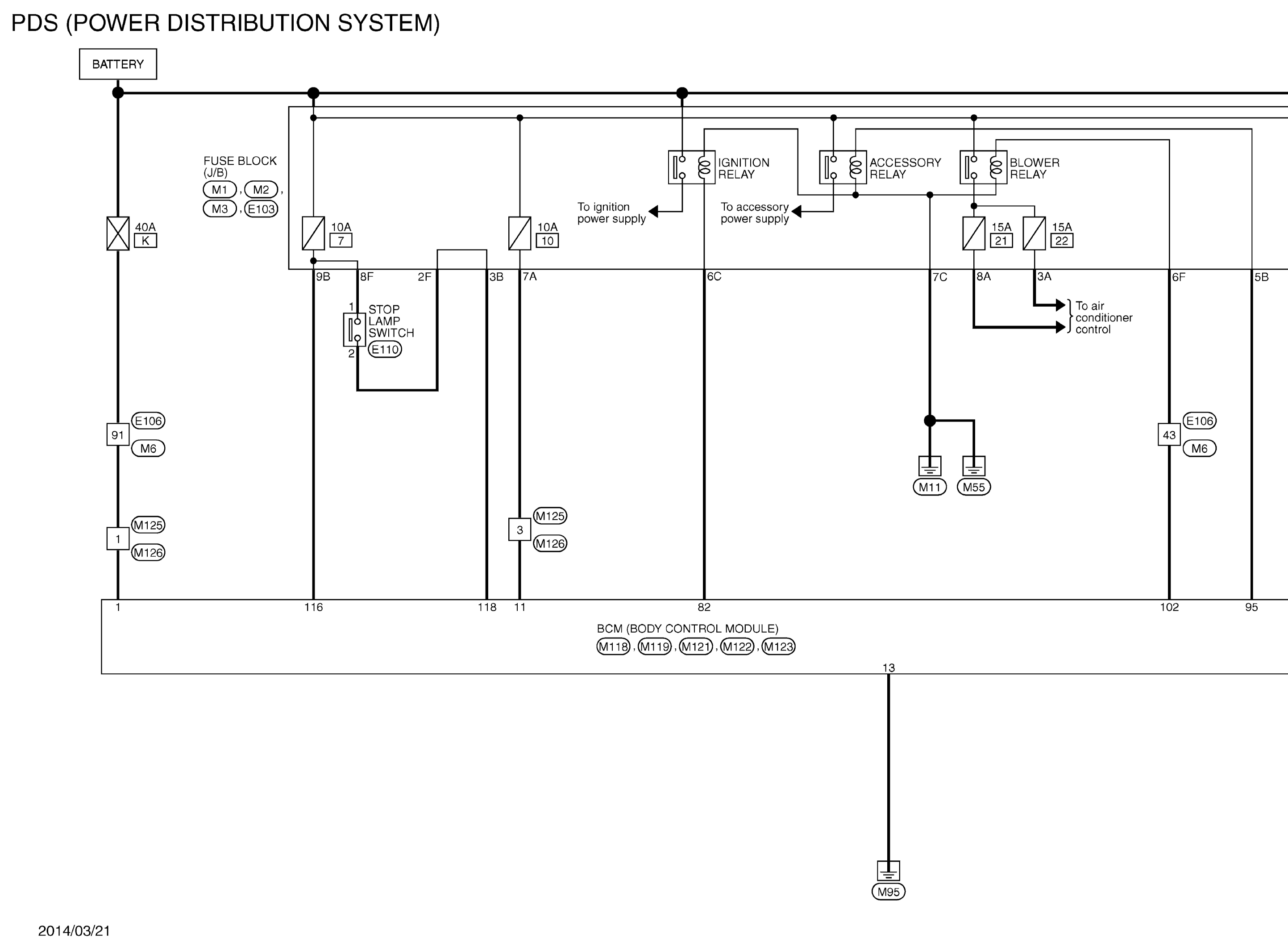

Fig 1: Power Distribution System Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

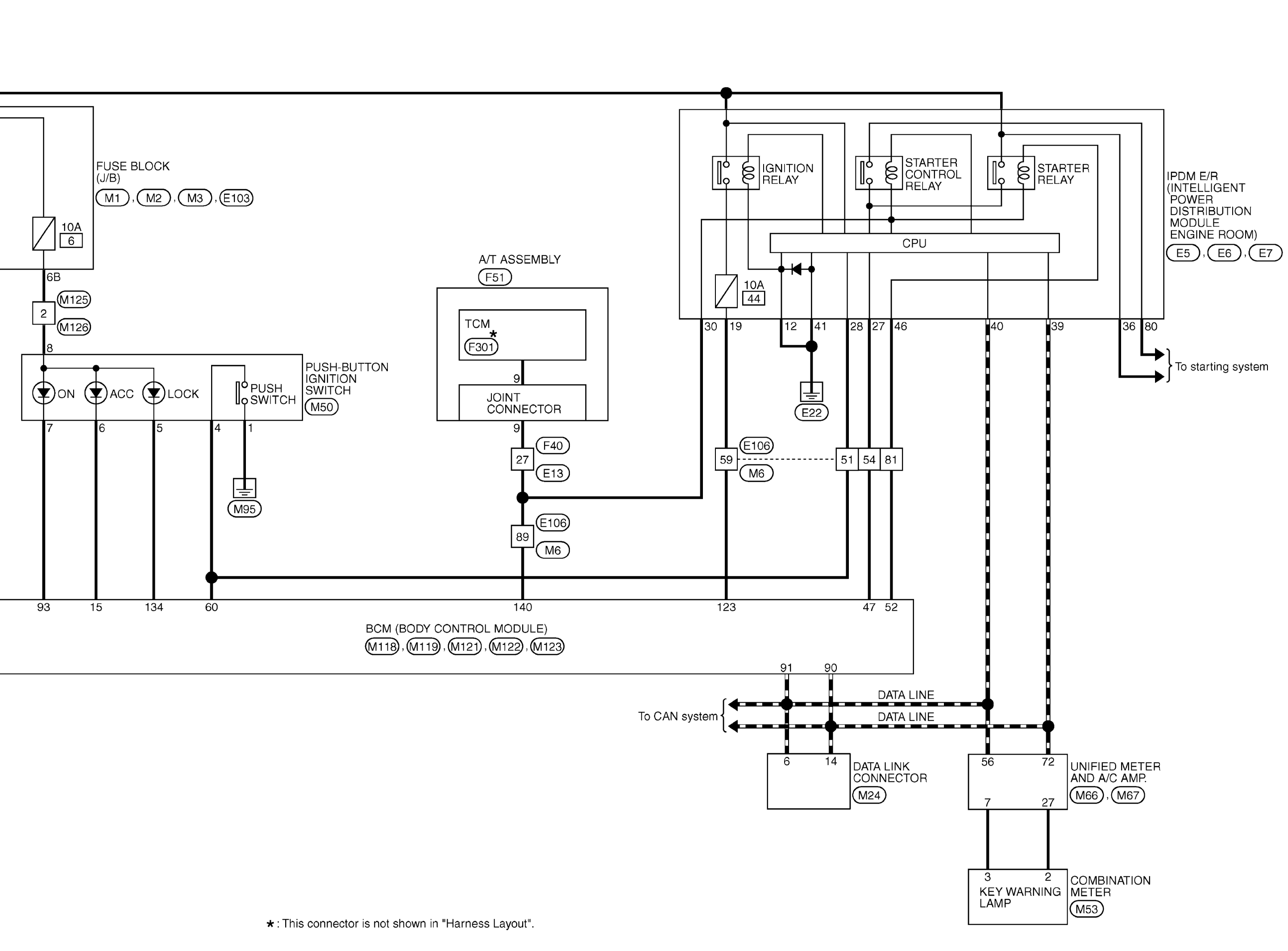

Fig 2: Power Distribution System Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
