Ecu Diagnosis Information
>>
AWD Control Unit
>>
AWD System Connectors
AWD System Connectors

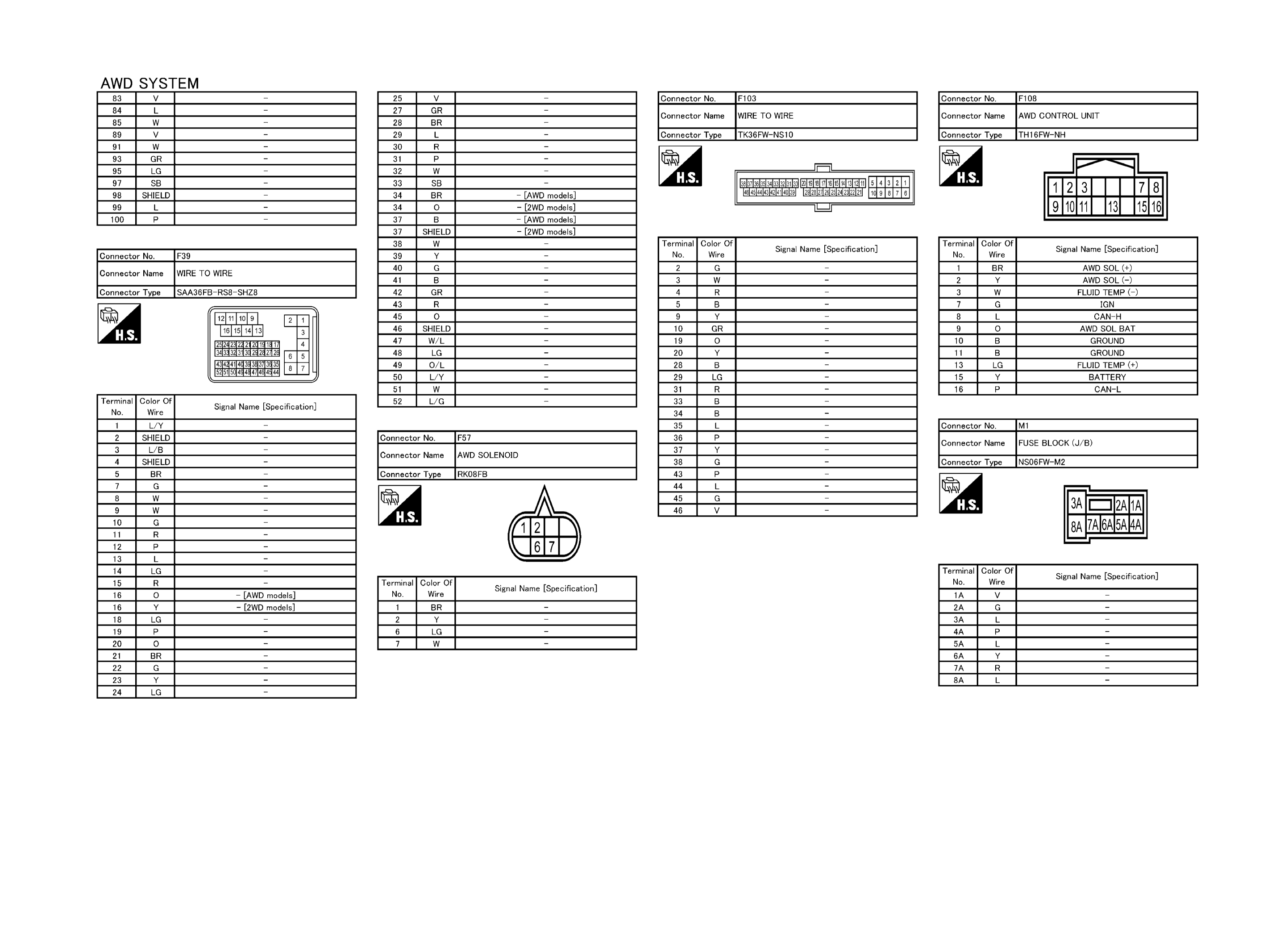

Fig 1: AWD System Connectors (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

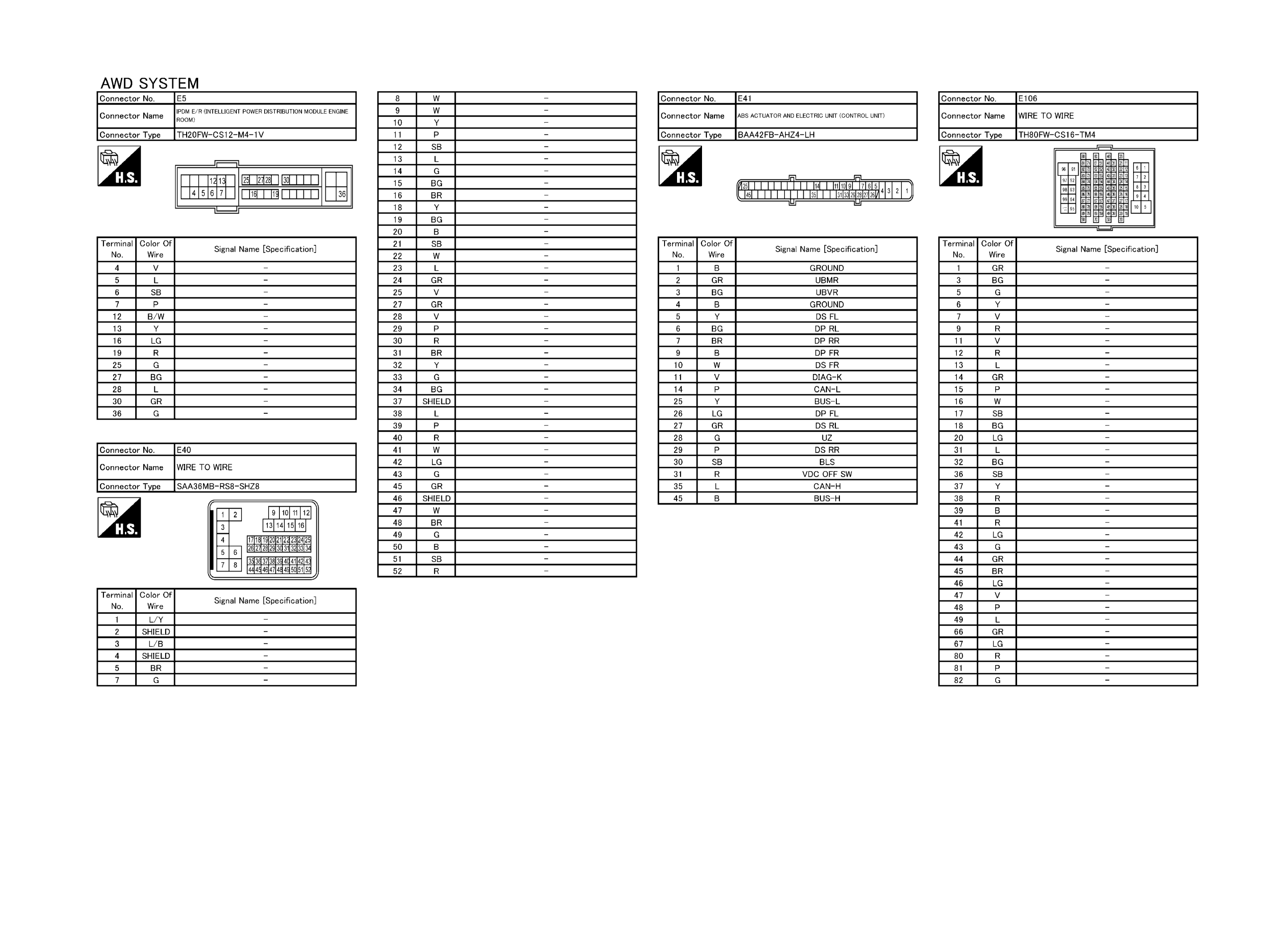

Fig 2: AWD System Connectors (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

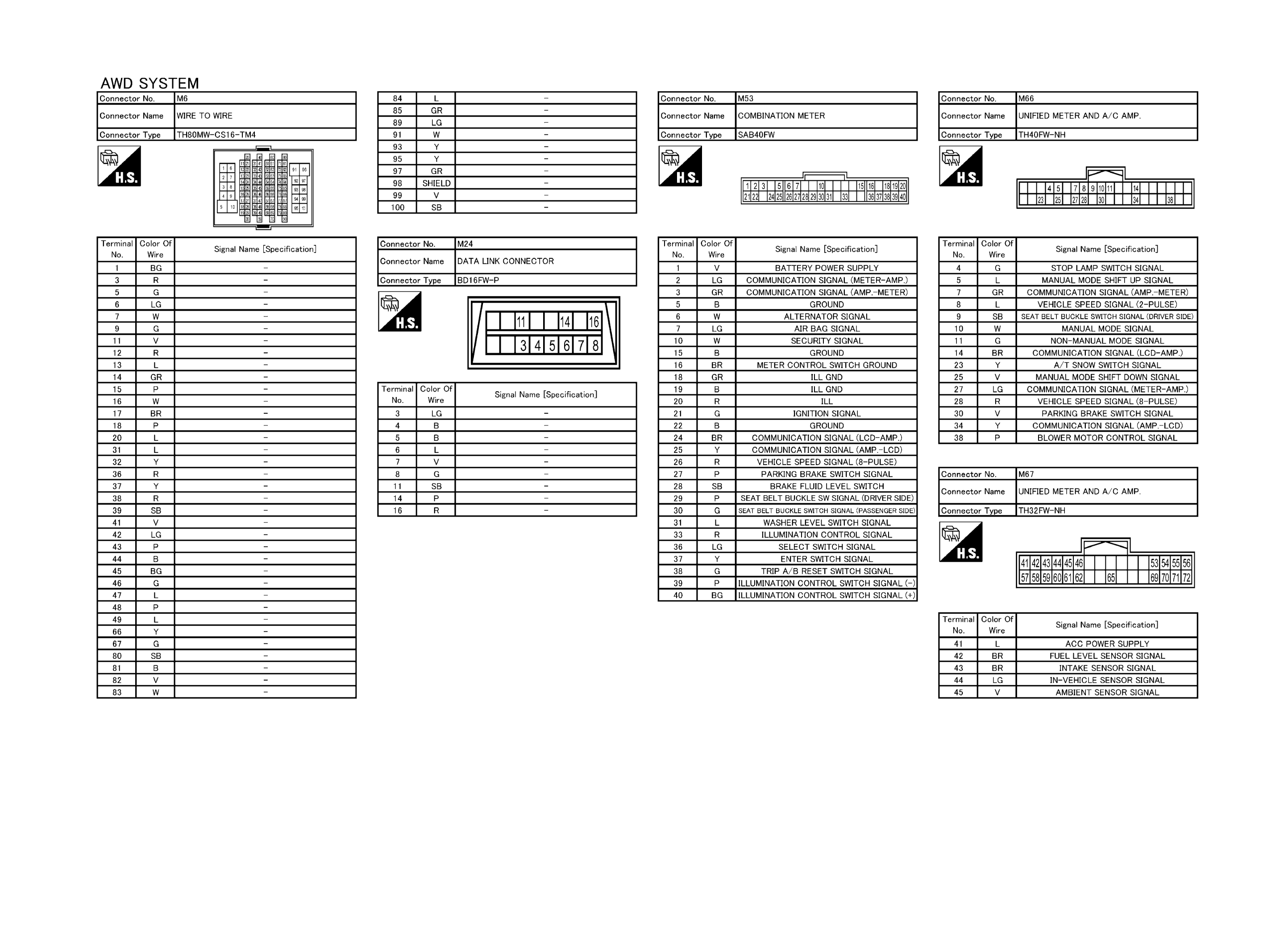

Fig 3: AWD System Connectors (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

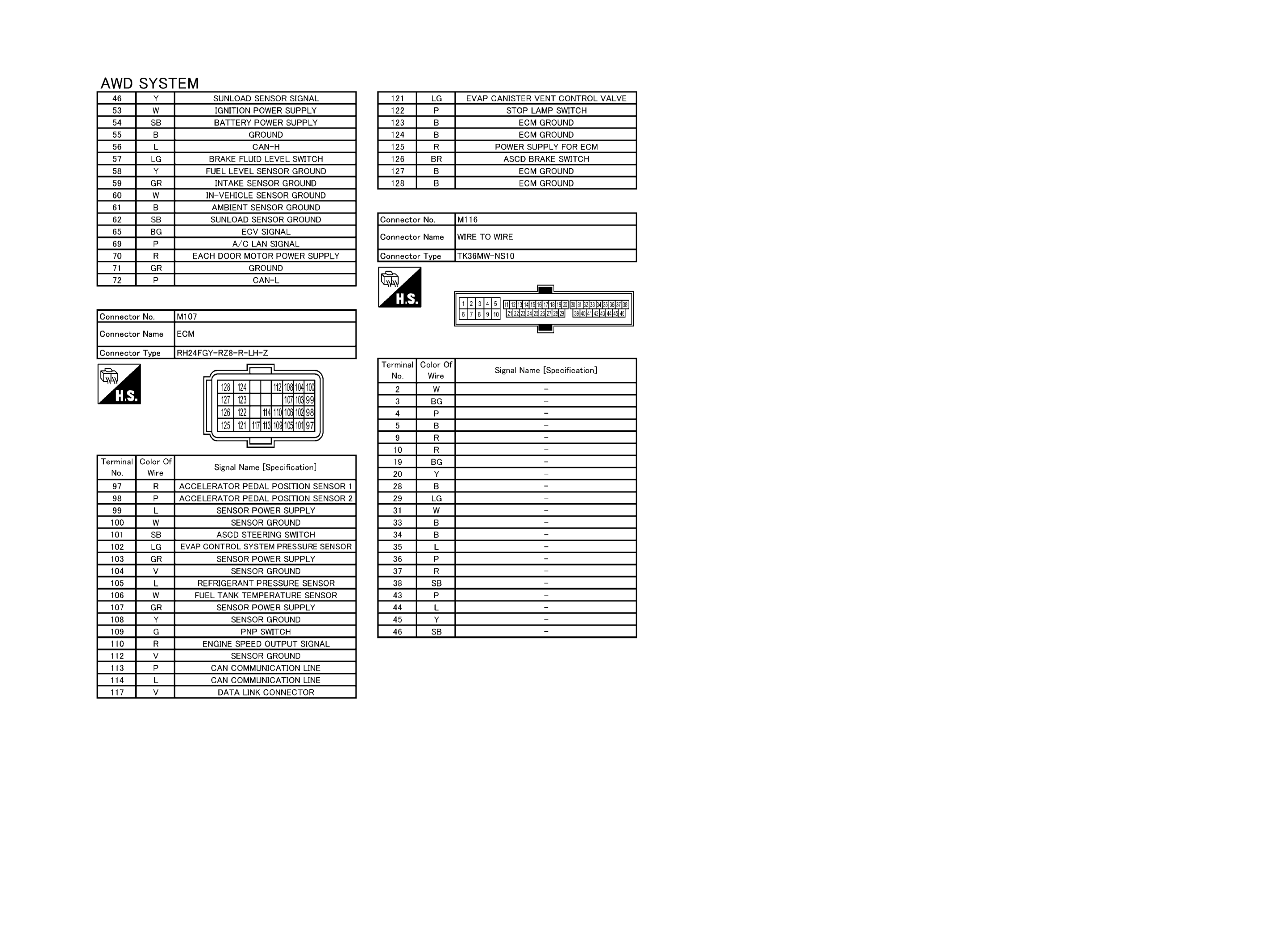

Fig 4: AWD System Connectors (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
