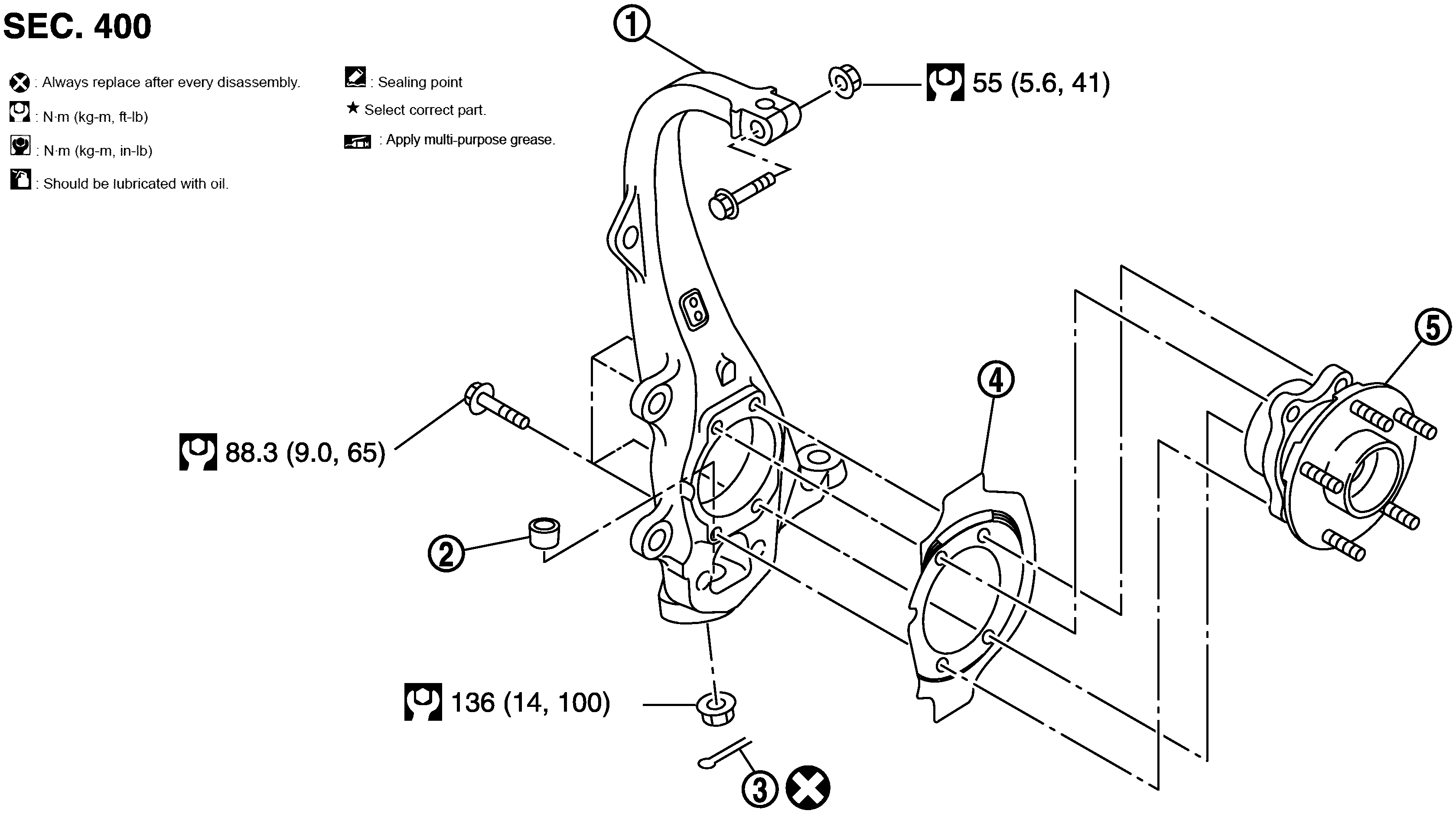

Exploded View With Torque Specifications
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Steering knuckle |
2. |
Ball seat |
3. |
Cotter pin |
| 4. |
Splash guard |
5. |
Wheel hub and bearing assembly |
|
|
| : N•m (kg - m, ft - lb) |
| : Always replace after every disassembly. |
