QX70 5.0L Eng VIN B
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (Power Distribution System)
>>
DTC/Circuit Diagnosis
>>
Power Distribution System
>>
Connector End Views
Connector End Views

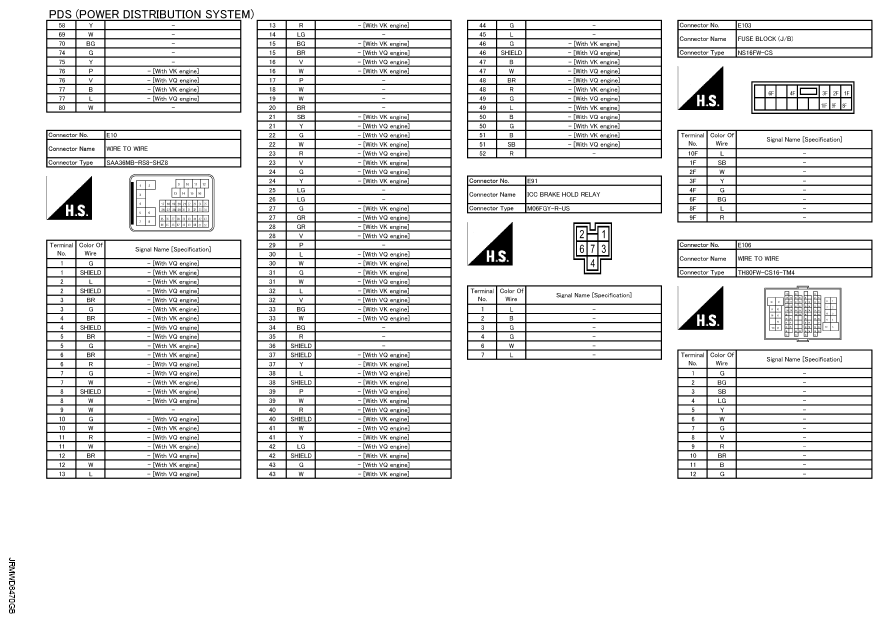

Fig 1: Power Distribution System Connector End View (1 Of 7)

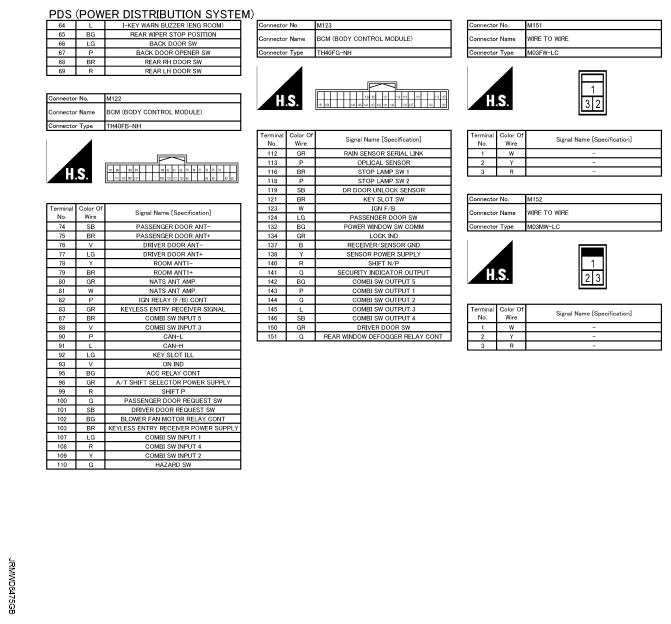

Fig 2: Power Distribution System Connector End View (2 Of 7)

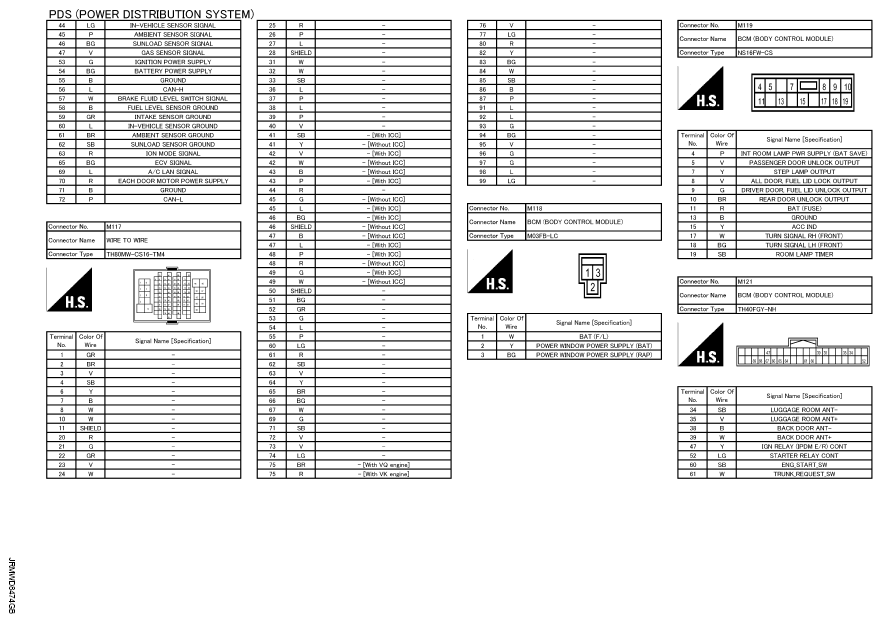

Fig 3: Power Distribution System Connector End View (3 Of 7)

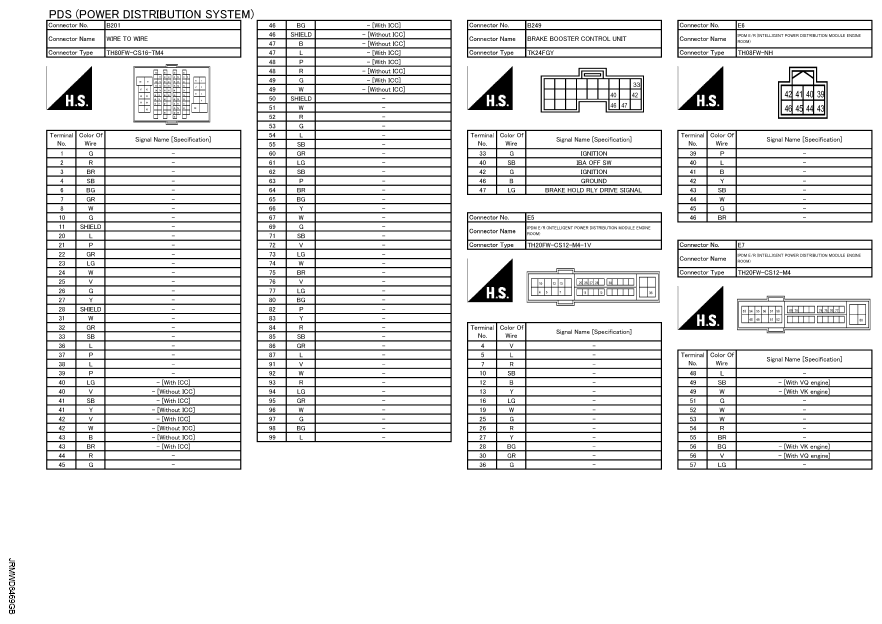

Fig 4: Power Distribution System Connector End View (4 Of 7)

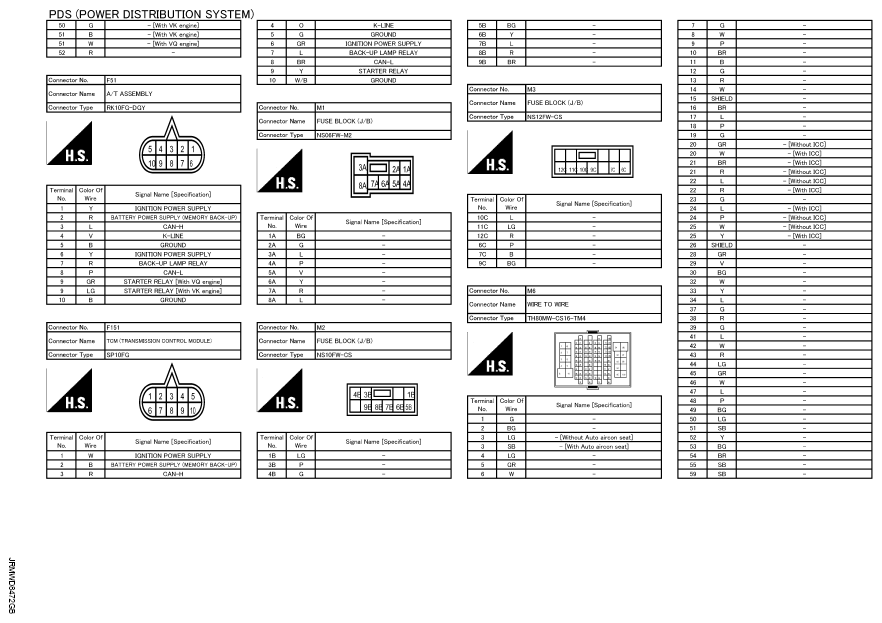

Fig 5: Power Distribution System Connector End View (5 Of 7)

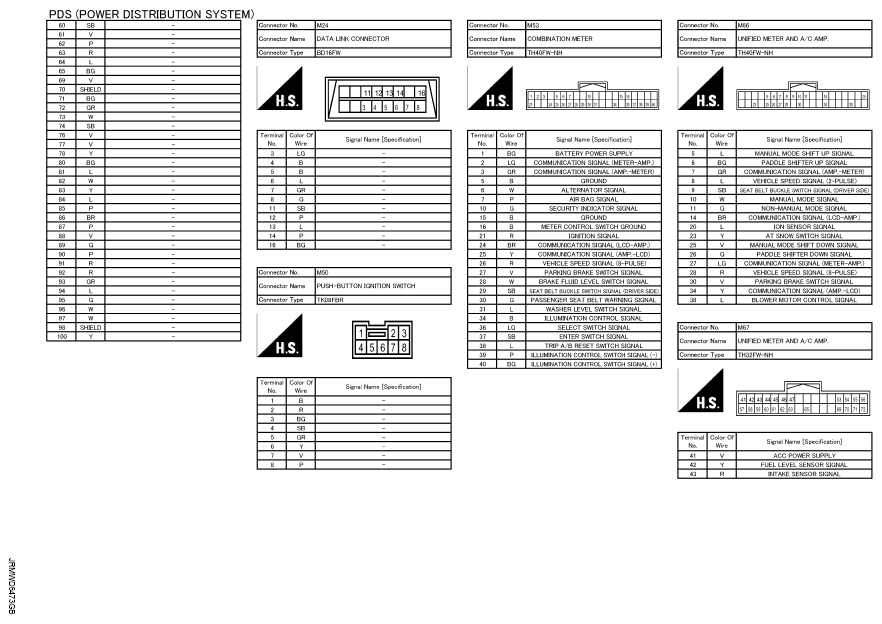

Fig 6: Power Distribution System Connector End View (6 Of 7)

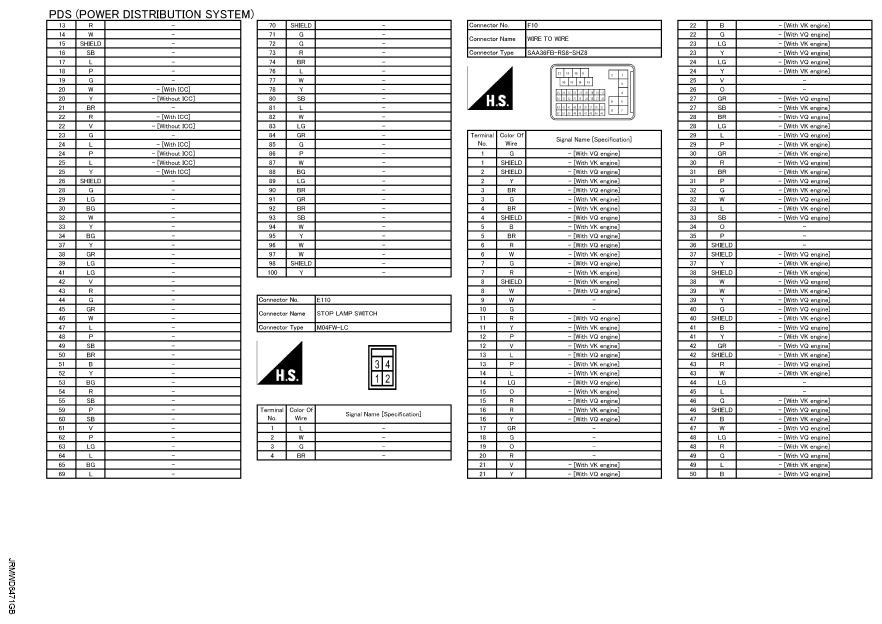

Fig 7: Power Distribution System Connector End View (7 Of 7)
