Exploded View

WARNING: This page is about a different car, the 2012 Infiniti M35h. However, it is still accessible from the selected car via links, so may be relevant.

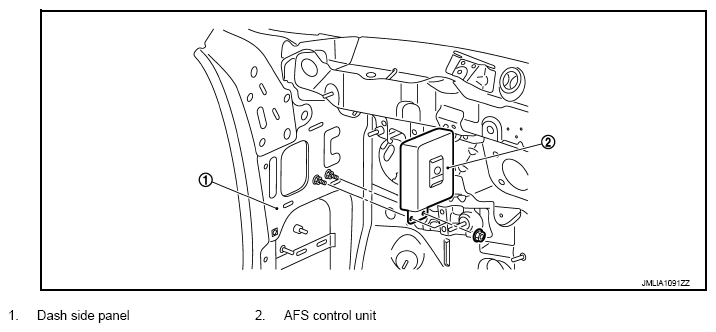

Fig 1: Identifying Dash Side Panel And AFS Control Unit

Courtesy of NISSAN NORTH AMERICA, INC.
