CVT CONTROL SYSTEM: Circuit Diagram
CVT CONTROL SYSTEM: Circuit Diagram

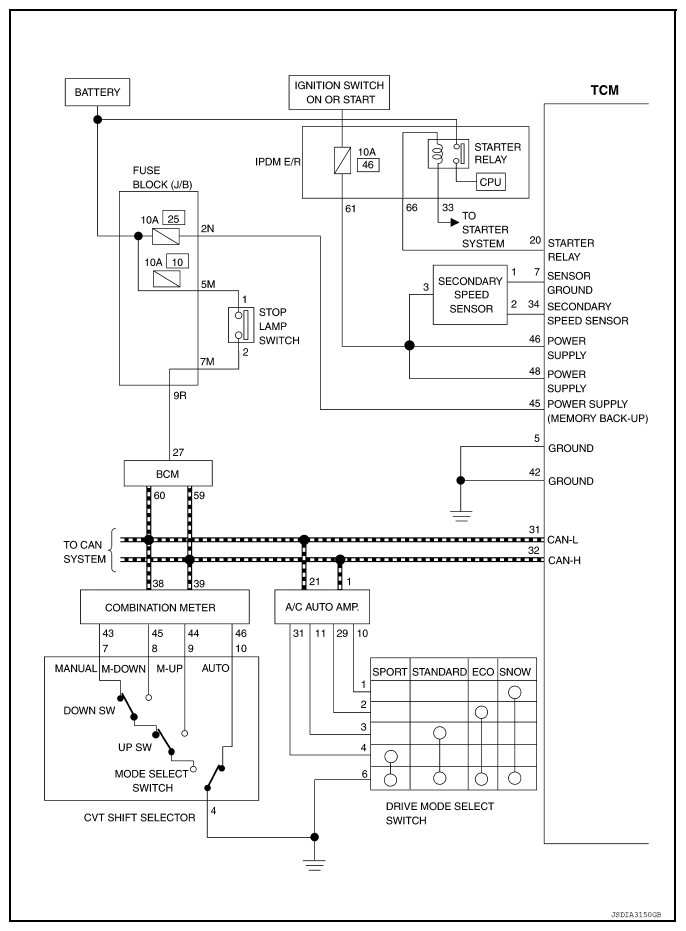

Fig 1: CVT Control System Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

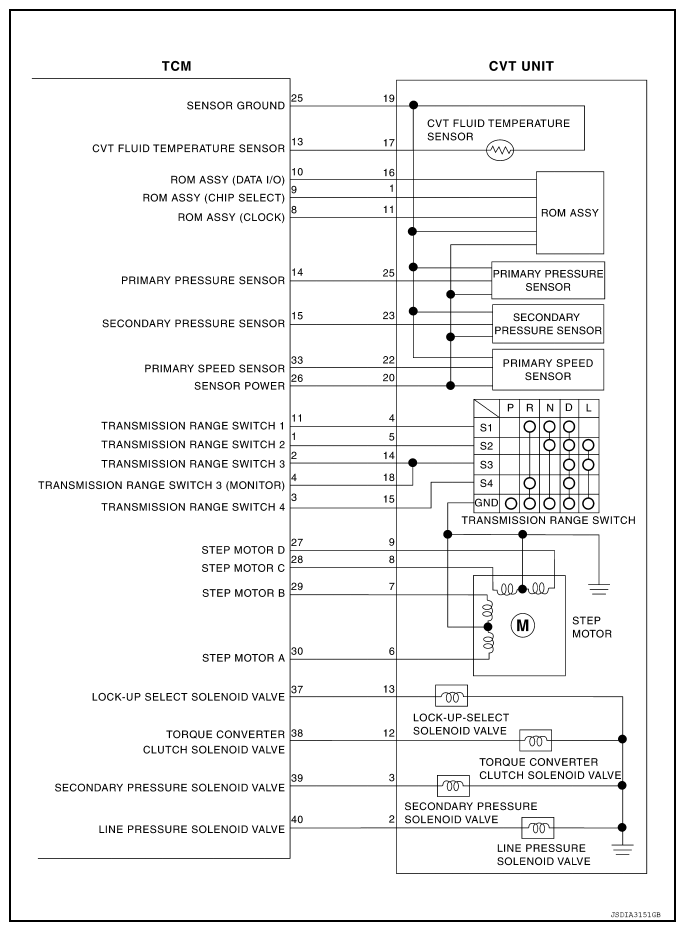

Fig 2: CVT Control System Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

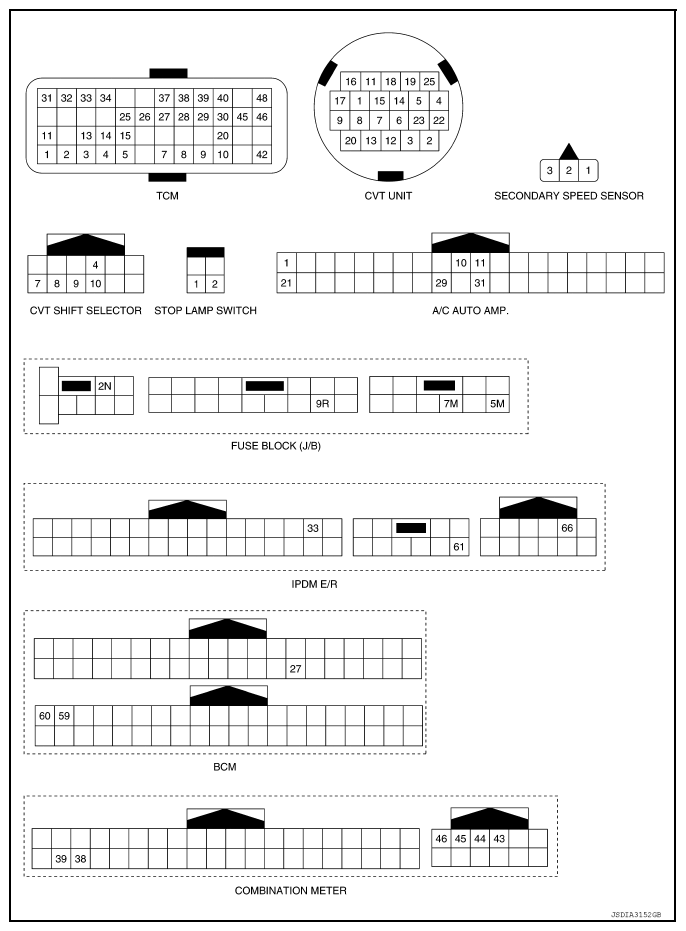

Fig 3: CVT Control System Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
