Exploded View

WARNING: This page is about a different variant/trim than selected.
CAUTION: Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor integrated unit.

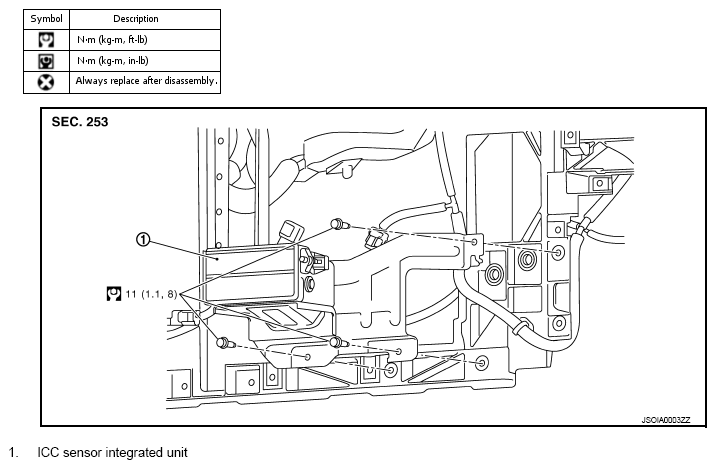

Fig 1: ICC Sensor Integrated Unit And Mounting Bolts With Torque Specification
G09015123Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
