Oil Pump: Assembly

WARNING: This page is about a different variant/trim than selected.

Note the following, and assemble in the reverse order of disassembly.

Install oil pump inner rotor with the groove faced to oil pump cover side.

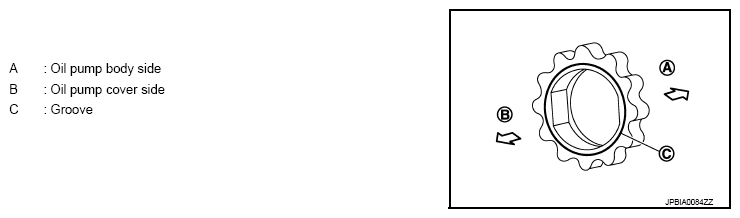

Fig 1: Identifying Oil Pump Body, Cover And Groove
Courtesy of NISSAN NORTH AMERICA, INC.
