Shaft And Gear

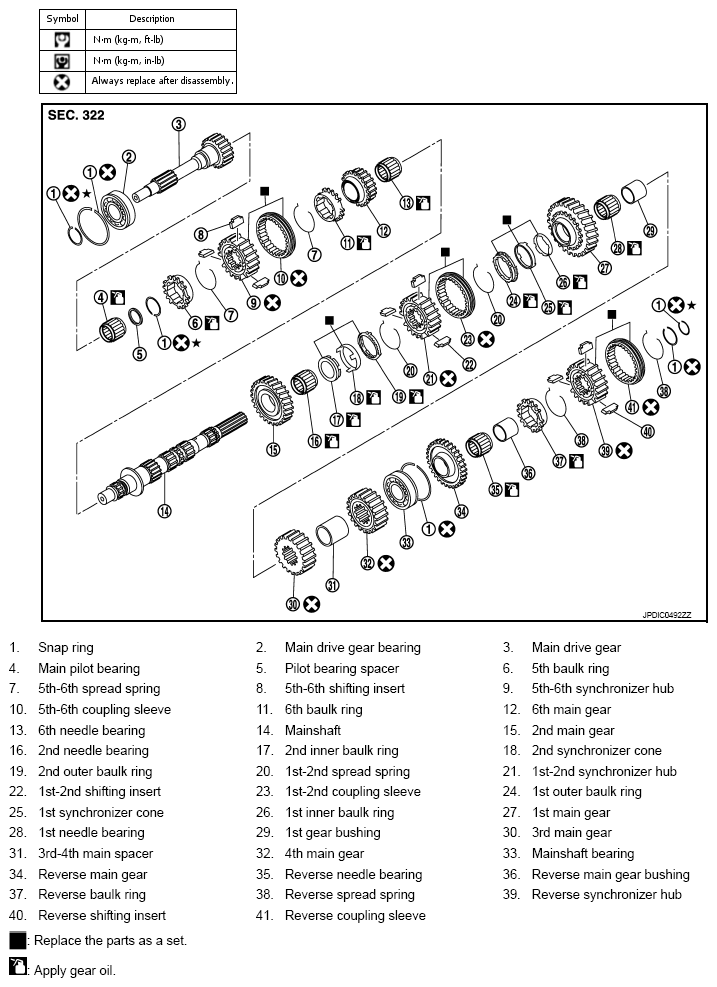

Fig 1: Disassembled View Of Shaft And Gear (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.

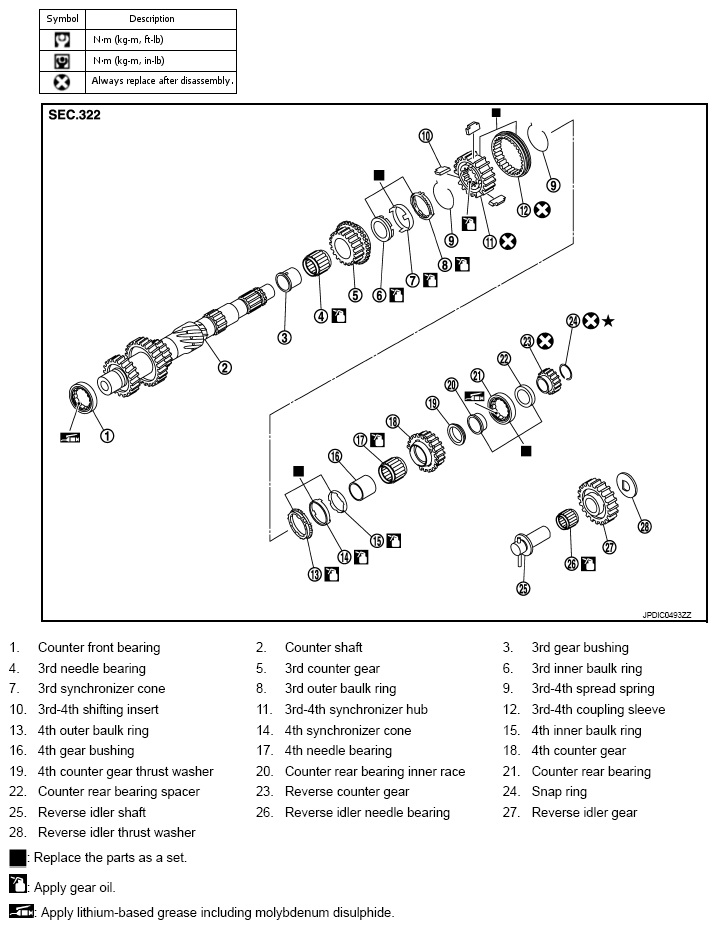

Fig 2: Disassembled View Of Shaft And Gear (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.
