Exploded View
Exploded View

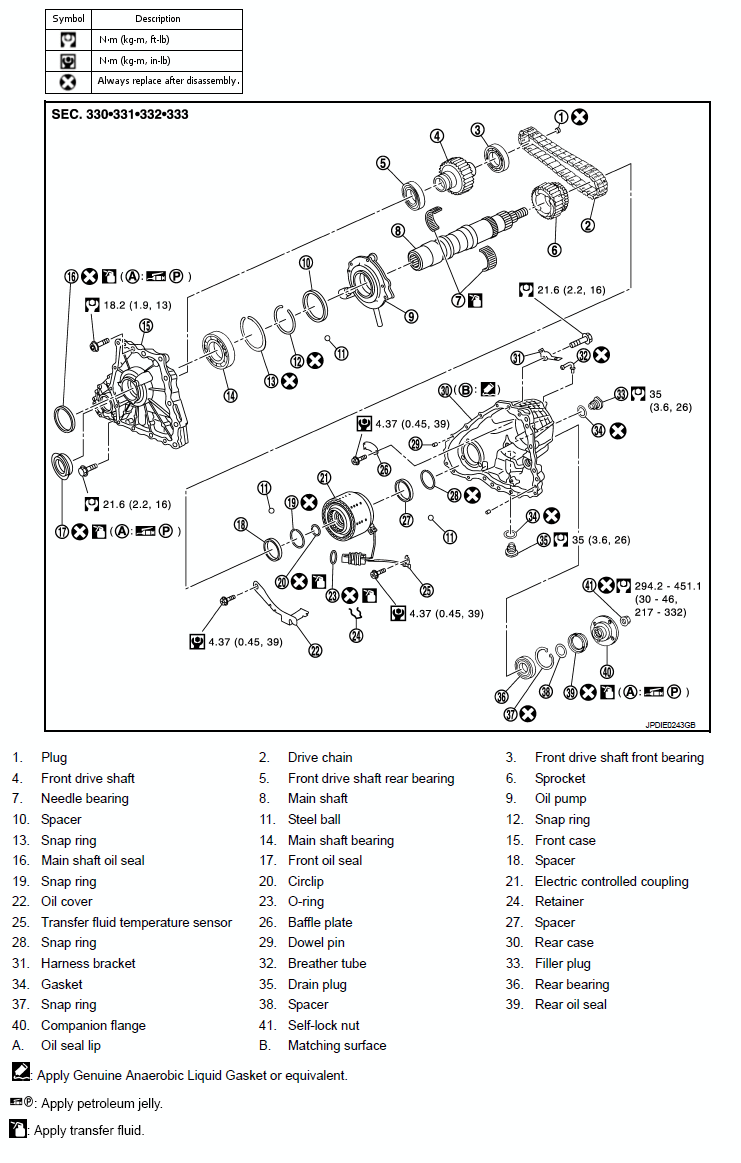

Fig 1: Exploded View Of Front Drive Shaft And Drive Chain With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols not described above.
