Exploded View

WARNING: This page is about a different car, the 2012 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

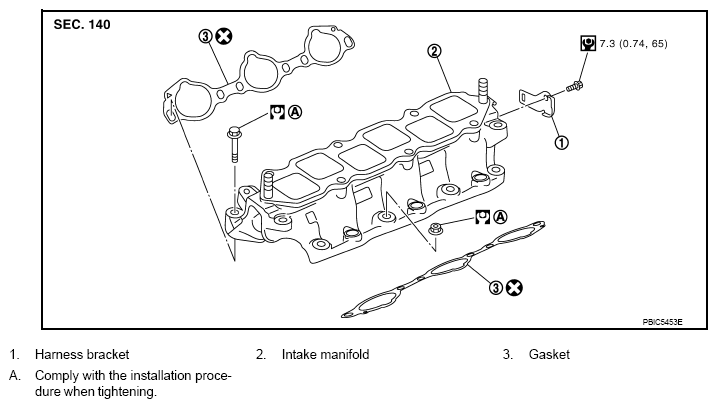

Fig 1: Identifying Harness Bracket, Intake Manifold And Gasket
G08209620Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
