RUNOUT Measuring Point

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Propeller shaft runout measuring point (Point "Δ").

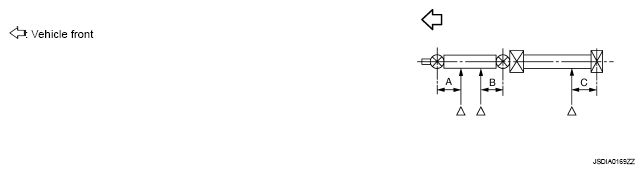

Fig 1: Identifying Runout Measuring Point

Courtesy of NISSAN MOTOR CO., U.S.A.

Standard

A: 192 mm (7.56 in)

B: 172 mm (6.77 in)

C: 172 mm (6.77 in)
