Removal and Installation: Removal

  1. Remove engine cover, using a power tool. Refer to "EXPLODED VIEW ".
  2. Remove air duct (RH and LH). Refer to "EXPLODED VIEW ".
  3. Remove electric throttle control actuator. Refer to "EXPLODED VIEW ".
  4. Remove ignition coil. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove spark plug with a spark plug wrench (commercial service tool).

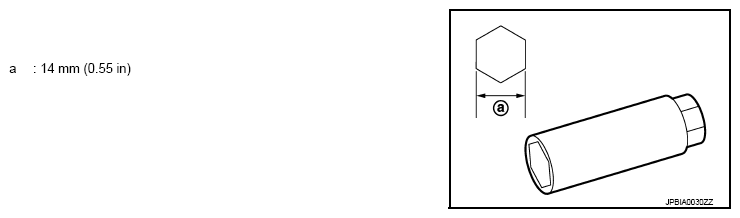

    Fig 1: Identifying Spark Plug Tool Dimension
    G08193246Courtesy of NISSAN NORTH AMERICA, INC.
