Exploded View
>>
Disassembly
Exploded View: Disassembly

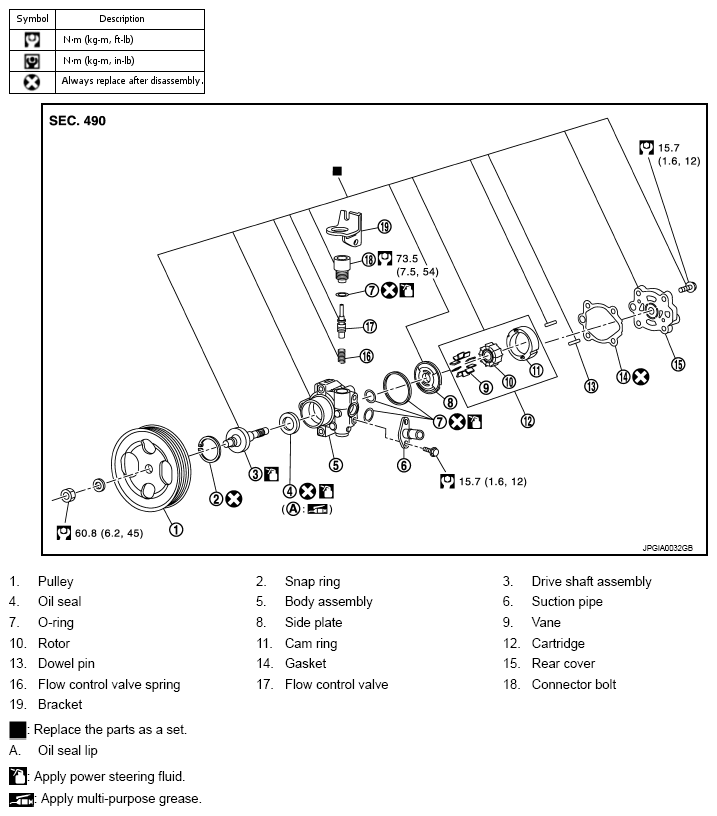

Fig 1: Disassembled Of Power Steering Oil Pump With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
